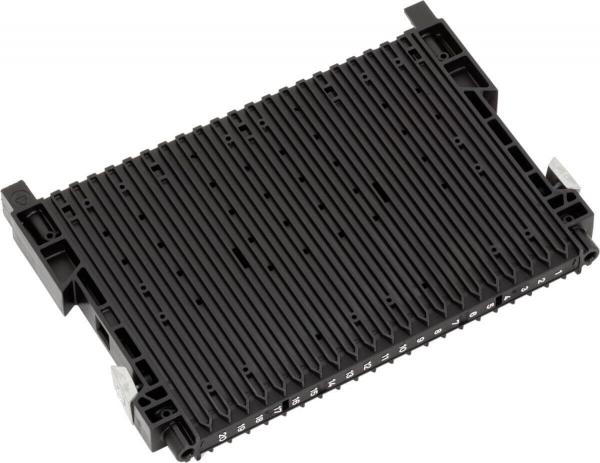

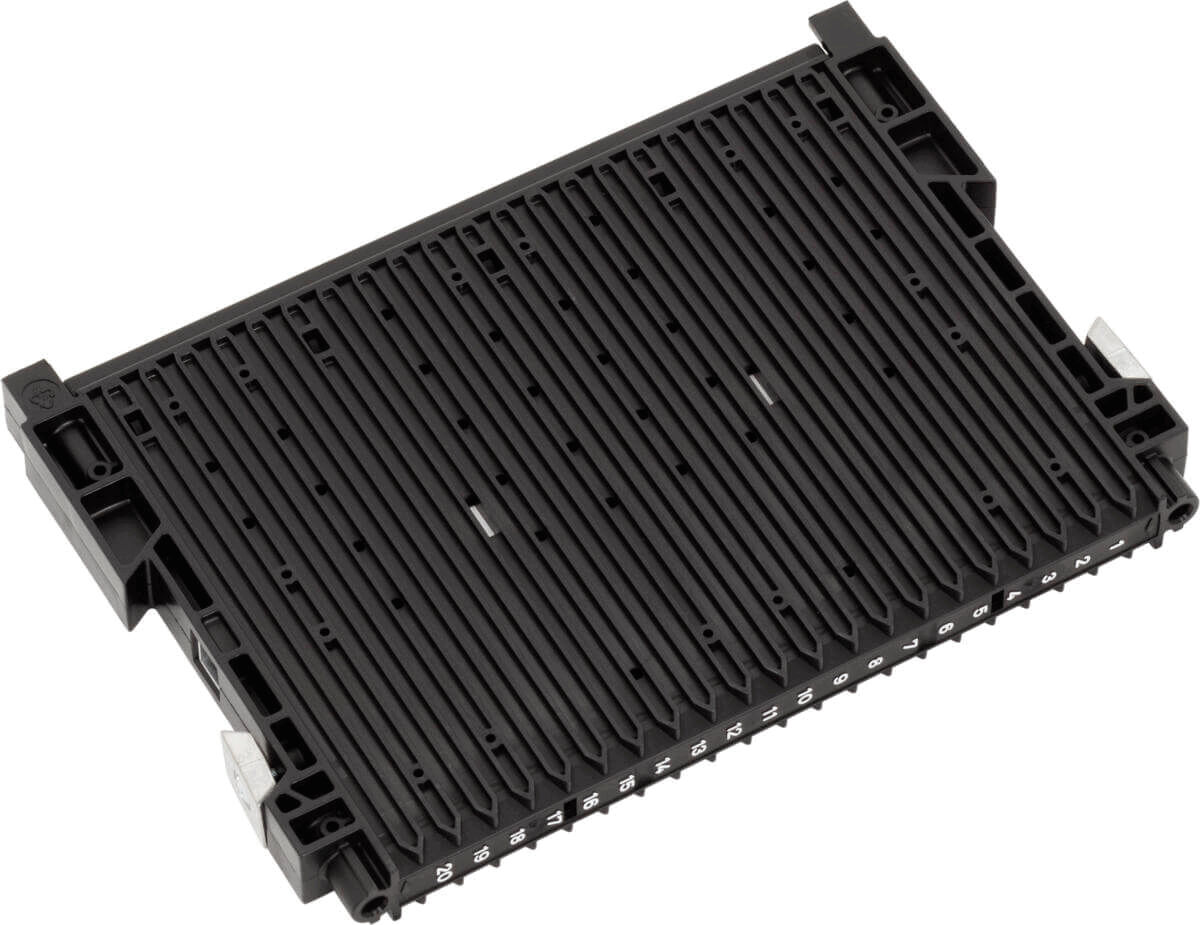

Slotted wall 322 reinforced
The slot wall 322 reinforced by WEZ is a highly functional solution for efficient handling of circuit boards in production, storage, and transport environments. This product measures 255 x 180 x 22 mm and is specifically equipped with a bottom stop type 22 and an aluminum reinforcement to ensure additional stability and durability.
The slot wall offers 20 slots with a width of 3.5 mm and a depth of 2.5 mm, allowing for precise and secure accommodation of circuit boards. The slot pitch is 10.16 mm, ensuring compatibility with various circuit board sizes.
The material made from PP (Polypropylene) is not only robust but also volume conductive and complies with the ESD standard DIN EN 61340-5-1, which guarantees protection against electrostatic discharges. The black color provides a discreet appearance, while the light weight of 0.46 kg facilitates transport and handling.
The slot wall is also temperature resistant from -20 to 80 °C and fits perfectly into Euro containers, making it a flexible and modular solution for various application areas.
The slot wall offers 20 slots with a width of 3.5 mm and a depth of 2.5 mm, allowing for precise and secure accommodation of circuit boards. The slot pitch is 10.16 mm, ensuring compatibility with various circuit board sizes.
The material made from PP (Polypropylene) is not only robust but also volume conductive and complies with the ESD standard DIN EN 61340-5-1, which guarantees protection against electrostatic discharges. The black color provides a discreet appearance, while the light weight of 0.46 kg facilitates transport and handling.
The slot wall is also temperature resistant from -20 to 80 °C and fits perfectly into Euro containers, making it a flexible and modular solution for various application areas.
Details
- Length [mm] Length [mm]
- 255 mm
- Width [mm] Width [mm]
- 180 mm
- Height [mm] Height [mm]
- 22 mm
- Version Version
- with base stop type 22, strengthened
- Color Color
- black
- Conductivity Conductivity
- volume conductive
- Material Material
- PP
- ESD ESD
- yes
- Groove depth Groove depth
- 2.5 mm
- Groove width Groove width
- 3.5 mm
- Groove number Groove number
- 20
- Temperature resistance Temperature resistance
- -20 - 80 °C
- Weight Weight
- 0,46 kg
Simple and safe system for PCB handling in the production, in the storage and for the transport. Modular design fits in Euro containers. Individually configurable for the different practical needs.
Electrostatically volume conductive
In compliance with ESD standard DIN EN 61340-5-1
Open slots or base stop?
The slotted walls of the series 180 are available with open or closed slot ends.
Versions 000 / 900 open slots for pushing through
Versions 022 922 base stop 22, support width = 2.5 mm
Versions 032 / 932 base stop 32, support width = 7.5 mm
Versions 025 / 925 base stop 25, support width = 4.0 mm
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
