Slotted wall 322

Name: Slotted wall 322
SKU: 2518.022.992
Price: 15.70 EUR
Availability: InStock

ArticleNo: 2518.022.992

dpvlink:

4760

Length [mm]:

255 mm

Width [mm]:

180 mm

Height [mm]:

22 mm

Version:

with base stop type 22, unstrengthened

Properties:

Further product information

Availability: at short notice

at short notice

15,70 EUR

1 PCE

Compare

Notice

Product Info

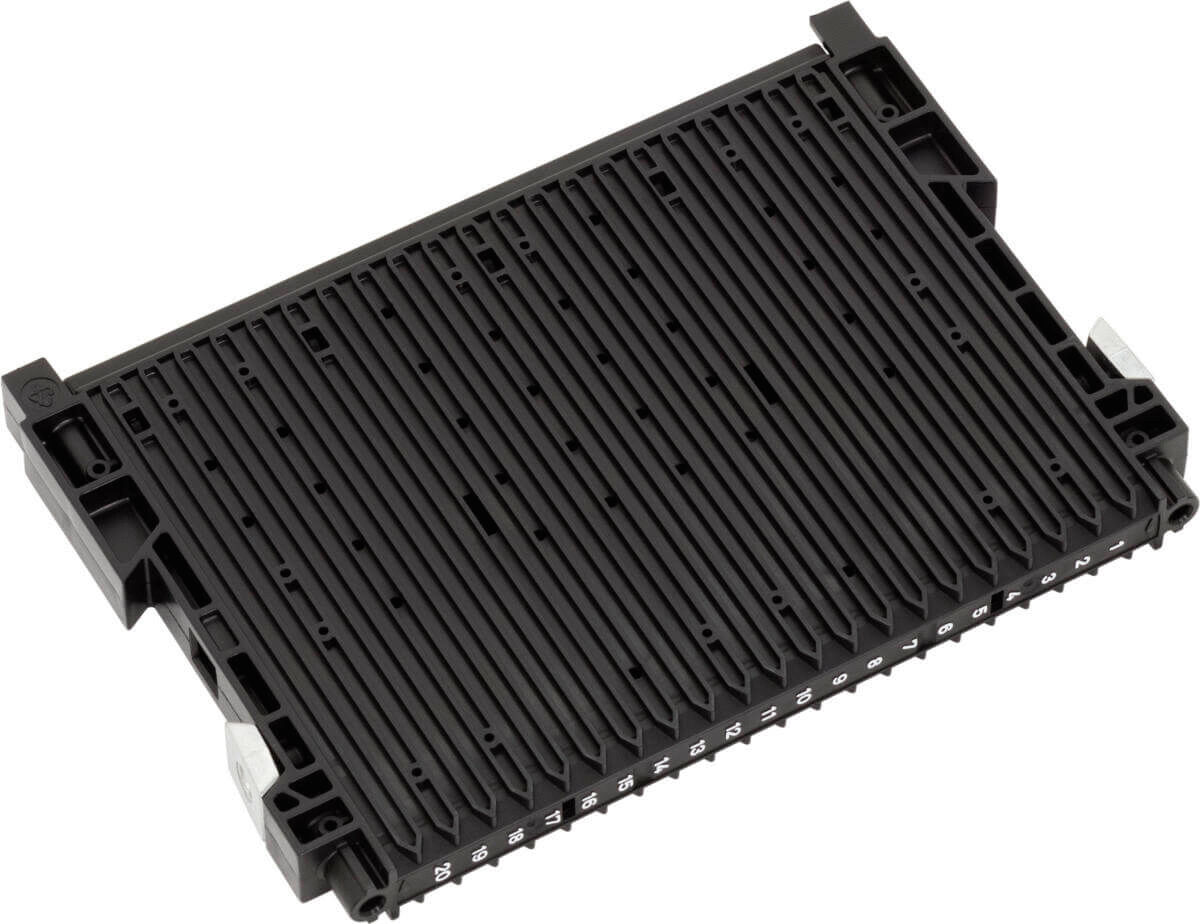

The slotted wall 322 from WEZ is an efficient and safe system for handling circuit boards in production, storage, and transport. With a size of 255 x 180 x 22 mm and equipped with a bottom stop type 22, this product provides stable and precise support for the circuit boards. The wall is made of black, electrostatically conductive PP material that meets the ESD standard DIN EN 61340-5-1, thus ensuring protection against electrostatic discharges.
The slotted wall is modularly designed and fits into standard Euro containers, making it particularly flexible for various application needs. It features 20 slots with a width of 3.5 mm and a depth of 2.5 mm. The slot spacing is 10.16 mm, allowing for optimal arrangement of the circuit boards. The product is unreinforced, weighs 0.4 kg, and exhibits high temperature resistance from -20 to 80 °C.
These features make the slotted wall 322 an ideal solution for technical buyers who value quality, adaptability, and protection of their electronic components.

Details

Length [mm] Length [mm]: 255 mm
Width [mm] Width [mm]: 180 mm
Height [mm] Height [mm]: 22 mm
Version Version: with base stop type 22, unstrengthened
Color Color: black
Conductivity Conductivity: volume conductive
Material Material: PP
ESD ESD: yes
Groove depth Groove depth: 2.5 mm
Groove width Groove width: 3.5 mm
Groove number Groove number: 20
Temperature resistance Temperature resistance: -20 - 80 °C
Weight Weight: 0.4 kg

Common

Simple and safe system for PCB handling in the production, in the storage and for the transport. Modular design fits in Euro containers. Individually configurable for the different practical needs.

Electrostatically volume conductive

In compliance with ESD standard DIN EN 61340-5-1

Open slots or base stop?
The slotted walls of the series 180 are available with open or closed slot ends.
Versions 000 / 900 open slots for pushing through
Versions 022 922 base stop 22, support width = 2.5 mm
Versions 032 / 932 base stop 32, support width = 7.5 mm
Versions 025 / 925 base stop 25, support width = 4.0 mm

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
