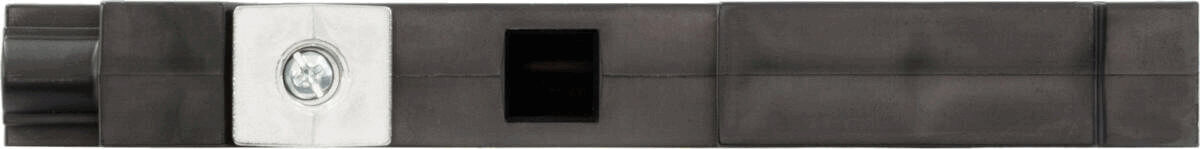

Slotted wall 400
Slotted Wall 400

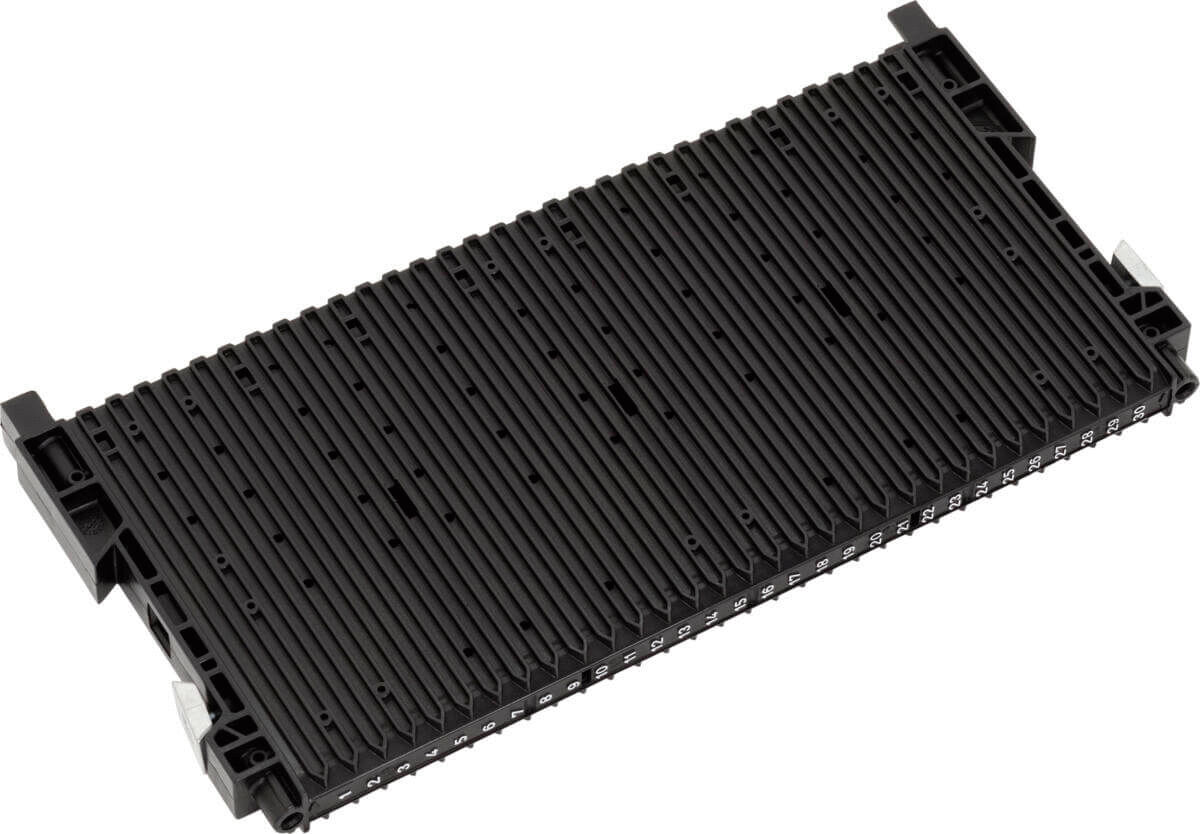

The Slotted Wall 400 from the WEZRack 180 series is a conductive and modular system, specifically designed for handling circuit boards in production environments, storage, and transportation. This product fits into standard Euro containers and can be customized for various application needs. The slotted wall is electrostatically conductive and meets the ESD standard DIN EN 61340-5-1. It offers an efficient and safe solution for circuit board storage and handling.
Technical Specifications:
- Width: 180 mm
- Height: 22 mm
- Length: 355 mm
- Number of slots: 30
- Slot width: 3.5 mm
- Slot depth: 2.5 mm
- Slot pitch: 10.16 mm
- Temperature resistance: -20 to 80 °C
Item number: 3518.000.992
Available in variants with open slots or with a floor stop in different versions to meet specific requirements.
The Slotted Wall 400 from the WEZRack 180 series is a conductive and modular system, specifically designed for handling circuit boards in production environments, storage, and transportation. This product fits into standard Euro containers and can be customized for various application needs. The slotted wall is electrostatically conductive and meets the ESD standard DIN EN 61340-5-1. It offers an efficient and safe solution for circuit board storage and handling.
Technical Specifications:
- Width: 180 mm
- Height: 22 mm
- Length: 355 mm
- Number of slots: 30
- Slot width: 3.5 mm
- Slot depth: 2.5 mm
- Slot pitch: 10.16 mm
- Temperature resistance: -20 to 80 °C
Item number: 3518.000.992
Available in variants with open slots or with a floor stop in different versions to meet specific requirements.
Details
- Height [mm] Height [mm]
- 22
- Length [mm] Length [mm]
- 355
- Width [mm] Width [mm]
- 180
- Conductivity Conductivity
- volume conductive
- Temperature resistance Temperature resistance
- -20 - 80 °C
Simple and safe system for PCB handling in the production, in the storage and for the transport. Modular design fits in Euro containers. Individually configurable for the different practical needs.
Electrostatically volume conductive
In compliance with ESD standard DIN EN 61340-5-1
Open slots or base stop?
The slotted walls of the series 180 are available with open or closed slot ends.
Versions 000 / 900 open slots for pushing through
Versions 022 922 base stop 22, support width = 2.5 mm
Versions 032 / 932 base stop 32, support width = 7.5 mm
Versions 025 / 925 base stop 25, support width = 4.0 mm
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
| Article image | Article description | Height [mm] | Length [mm] | Width [mm] | Conductivity | Temperature resistance | Price | Compare |
|---|---|---|---|---|---|---|---|---|
|
3518.022.992 Slotted wall 422 | 22 | 355 | 180 | volume conductive | -20 - 80 °C | 16,50 EUR | |
|
|
3518.000.992 Slotted wall 400 | 22 | 355 | 180 | volume conductive | -20 - 80 °C | 12,65 EUR | |
|
|
3518.922.992 Slotted wall 422 reinforced | 22 | 355 | 180 | volume conductive | -20 - 80 °C | 27,00 EUR | |
|
|
3518.032.992 Slotted wall 432 | 32 | 355 | 180 | volume conductive | -20 - 80 °C | 16,50 EUR | |
|
|
3518.900.992 Slotted wall 400 reinforced | 22 | 355 | 180 | volume conductive | -20 - 80 °C | 23,70 EUR | |
|
|
3518.932.992 Slotted wall 432 reinforced | 32 | 355 | 180 | volume conductive | -20 - 80 °C | 27,00 EUR | |
| Show Compare List (0) | ||||||||
