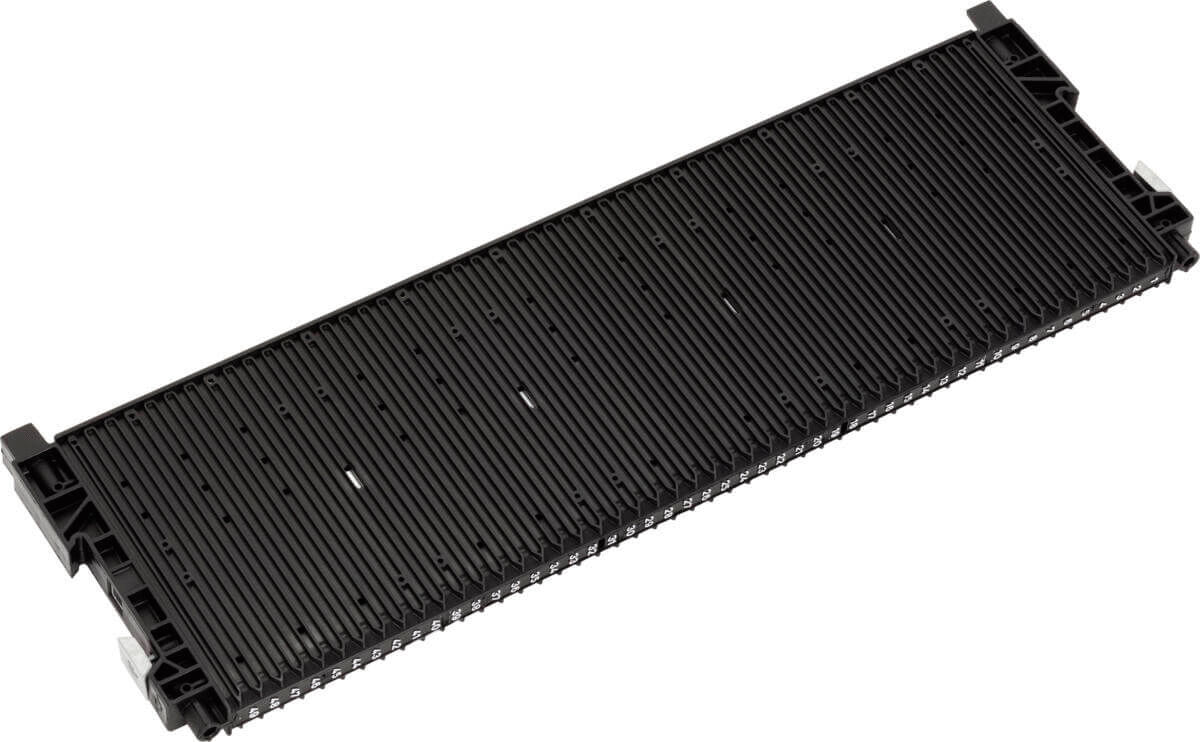

Slotted wall 625 reinforced
The slotted wall 625 reinforced by WEZ offers an efficient solution for handling circuit boards in production, storage, and transport. With a width of 180 mm, a height of 25 mm, and a length of 550 mm, this product is specifically equipped with a bottom stop type 22 and reinforced for robustness. It is available in black and weighs 0.82 kg.
The slotted wall has 49 slots with a width of 3.5 mm and a depth of 2.5 mm at a slot pitch of 10.16 mm. Made from PP (polypropylene), the material is not only electrostatically volume-conductive but also meets the ESD standard DIN EN 61340-5-1, making it ideal for ESD-sensitive environments. The temperature resistance ranges from -20 to 80 °C, allowing for versatile applications.
The modular design allows for easy integration into Euro containers and can be customized for various requirements. This makes the reinforced slotted wall 625 an optimal choice for technical purchasers who value quality and functionality.
The slotted wall has 49 slots with a width of 3.5 mm and a depth of 2.5 mm at a slot pitch of 10.16 mm. Made from PP (polypropylene), the material is not only electrostatically volume-conductive but also meets the ESD standard DIN EN 61340-5-1, making it ideal for ESD-sensitive environments. The temperature resistance ranges from -20 to 80 °C, allowing for versatile applications.
The modular design allows for easy integration into Euro containers and can be customized for various requirements. This makes the reinforced slotted wall 625 an optimal choice for technical purchasers who value quality and functionality.
Details
- Color Color
- black
- Height [mm] Height [mm]
- 25 mm
- Length [mm] Length [mm]
- 550 mm
- Width [mm] Width [mm]
- 180 mm
- Conductivity Conductivity
- volume conductive
- Material Material
- PP
- ESD ESD
- yes
- Version Version

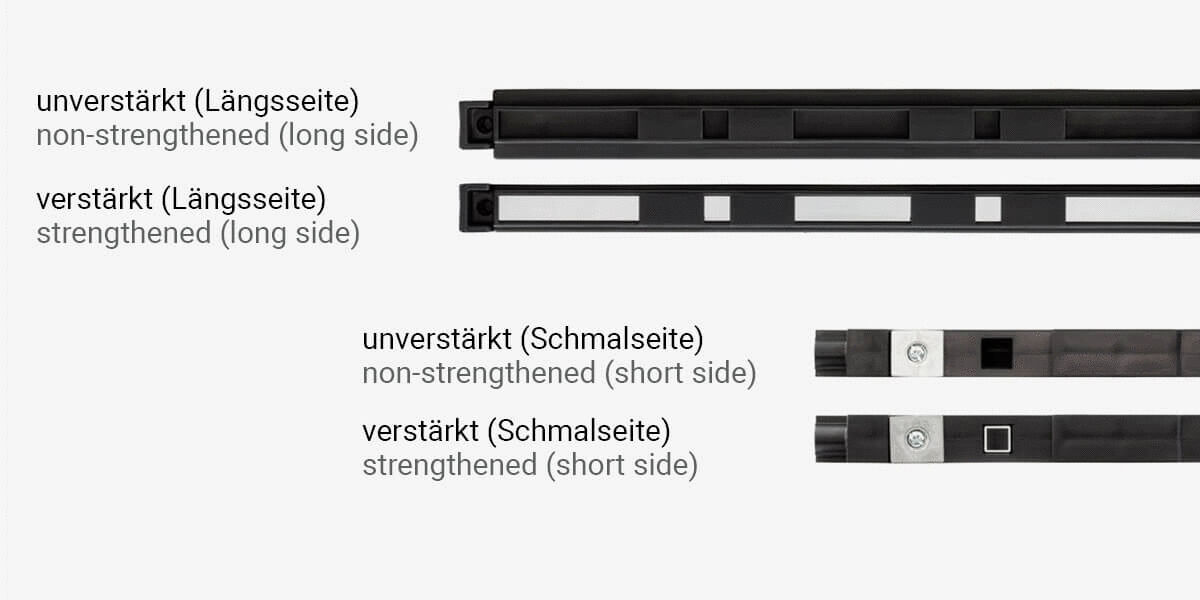

- with base stop type 22, strengthened
- Groove depth Groove depth
- 2.5 mm
- Groove width Groove width
- 3.5 mm
- Groove number Groove number
- 49
- Temperature resistance Temperature resistance
- -20 - 80 °C
- Weight Weight
- 0.82 kg
Simple and safe system for PCB handling in the production, in the storage and for the transport. Modular design fits in Euro containers. Individually configurable for the different practical needs.
Electrostatically volume conductive
In compliance with ESD standard DIN EN 61340-5-1

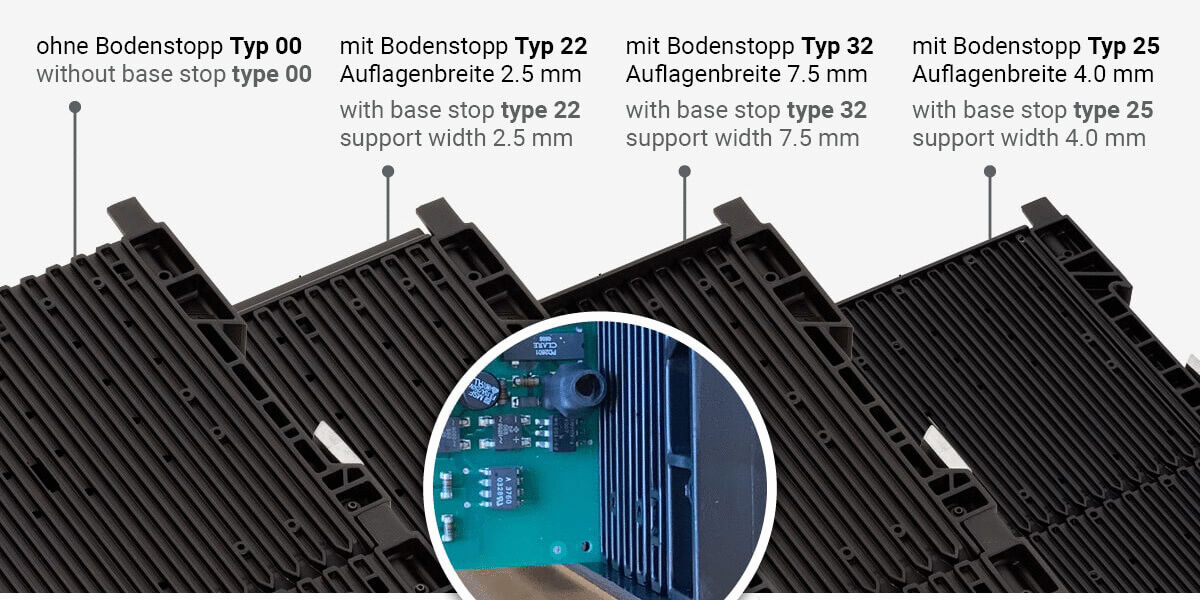

Open slots or base stop?
The slotted walls of the series 180 are available with open or closed slot ends.
Versions 000 / 900 open slots for pushing through
Versions 022 922 base stop 22, support width = 2.5 mm
Versions 032 / 932 base stop 32, support width = 7.5 mm
Versions 025 / 925 base stop 25, support width = 4.0 mm
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
