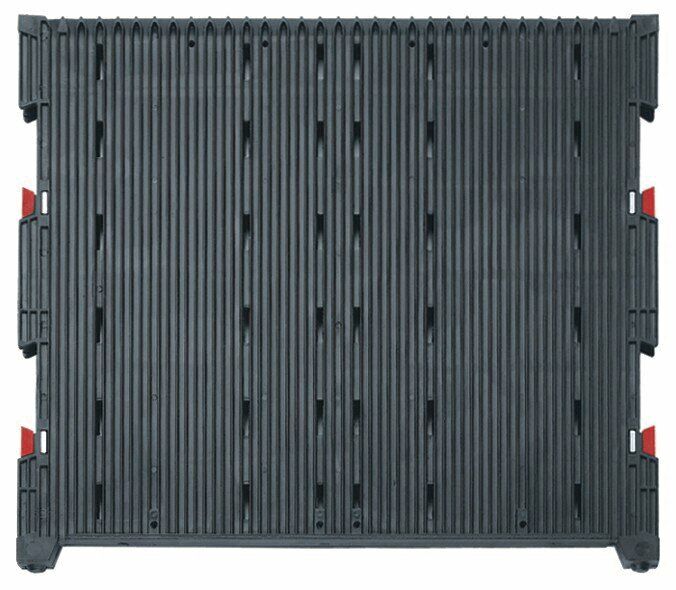

Details
- Color Color
- black
- Height [mm] Height [mm]
- 20
- Length [mm] Length [mm]
- 357
- Spacing Spacing
- 10 mm
- Width [mm] Width [mm]
- 303
- Conductivity Conductivity
- volume conductive
- Surface resistance Rs Surface resistance Rs
- 109 Ω
- Material Material
- polypropylene
- Groove depth Groove depth
- 2.5 mm
- Groove width Groove width
- 3.5 mm
- Groove number Groove number
- 32
electrostatically conductive, an exemplary concept: well thought out, flexible and complete
These PCB holders are used in the production, in test fields and in the storage. They can be equipped as well when standing vertically as lying horizontally. The width is completely variable and the system can be assembled for all PCB sizes according to the individual requirements.
- Handles
They facilitate the transport and especially the removal of the PCB holders out of the transport boxes. For saving space in the height they are retractable. - Clamp
It can be mounted on the side of every PCB holder. The clamp serves to fix accompanying documents like parts lists and order forms. - Bearing rail
It serves to support heavy and large PCB and protects them from slipping down while being transported. - Profile rail
It is made of aluminium extruded profile and is available with every requested length. - Partitions
The double-walled partitions are extremely stable and torsion-resistant due to the sandwich structure. - Free space
For preventing damages of protruding components the bearing edge lies 17 mm above the table surface.
Quick and simple assembly
Quick and easy adjustment due to external adjustment grooves lying 0.4 mm above the surface.
Transport container
The PCB holder can be used for the transport in Euro containers 600 x 400 mm or 400 mm x 300 mm.
The retractable handles facilitate the insertion and removal.
Stable and torsion-resistant
The partitions are extremely stable due to the double-walled structure. In addition, in case of mechanical and thermal load, the partitions can be stiffened by a metal tube.
Standing vertically
Equipped PCBs must be stored horizontally before soldering. For this purpose, the PCBs be placed vertically.
Groove lock
For preventing damages of the components while inserting the PCBs into the magazine the grooves can be blocked by groove locks.
Technical data partition 100 / 180 / 300:
| Number guide slots: | 32 |
| Spacing guide slots: | 10 mm |
| Material: | Polypropylene |
| Color: | Black |
| Continuous use temperature: | 70°C |
After aging no diminution of the conductivity, chemical and UV resistance excellent.
Version conductive = electrostatically volume conductive
In compliance with ESD standard DIN EN 61340-5-1
Partition wall | Slot width | Slot depth | PCB spacing | Max. equipment |
100 | 2.8 mm | 2.0 mm | 10 mm | 32 PCBs |
180 | 4.0 mm | 2.5 mm | 10 mm | 32 PCBs |
300 | 3.5 mm | 2.5 mm | 10 mm | 32 PCBs |
The length of the profile (dimension X) is calculated according to the indications below.
Dimension D = PCB width
Dimension X = length of profile rail
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
| Article image | Article description | Color | Height [mm] | Length [mm] | Spacing | Width [mm] | Conductivity | Surface resistance Rs | Price | Compare |
|---|---|---|---|---|---|---|---|---|---|---|
|
8912049 Partition 300 | black | 20 | 357 | 10 mm | 303 | volume conductive | 109 Ω | 30,50 EUR | |
|
8913914 Partition 300, with holes for groove lock | black | 20 | 357 | 10 mm | 303 | volume conductive | 109 Ω | 37,90 EUR | |
