PCB holder test set 300

(Product No.: 8910065)

PCB holder test set 300

Name: PCB holder test set 300
SKU: 8910065
Price: 99.00 EUR
Availability: InStock

ArticleNo: 8910065

dpvlink:

4630

Tags:

Further product information

Shipping time:
available

available

99,00 EUR
99,00 EUR per SET

SET:

Compare

Notice

Product Info

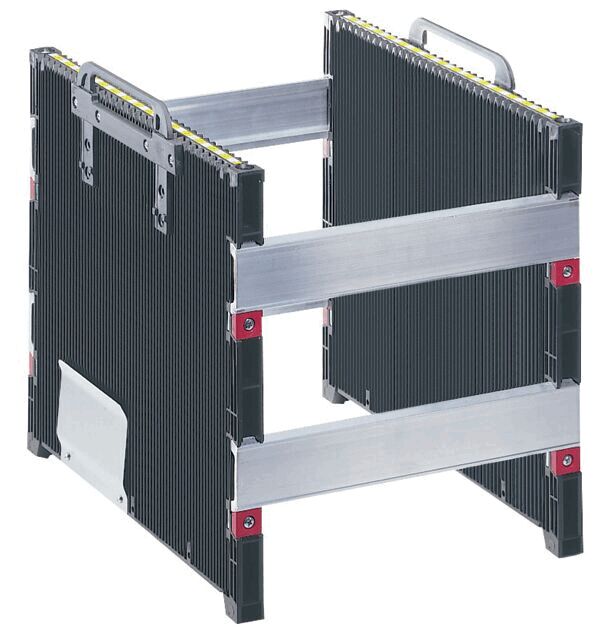

Circuit Board Holder Test Set 300 Our Circuit Board Holder Test Set 300 is specifically designed for circuit boards up to 233.4 mm in width and offers a complete solution for your needs. This set is ideal for technicians and engineers who need a reliable mounting for working with circuit boards. Technical Specifications: - 2 Bridge Walls 300 - 4 Profile Rails 269 mm - 1 Clamp - 1 Set of Handles Item number: 8910065 Benefit from our 8-day return policy and order without risk. Our service guarantees your secure decision.

Details

Common

Order without any risk with 8 days right of return.
Our service for your safe decision

electrostatically conductive, an exemplary concept: well thought out, flexible and complete

These PCB holders are used in the production, in test fields and in the storage. They can be equipped as well when standing vertically as lying horizontally. The width is completely variable and the system can be assembled for all PCB sizes according to the individual requirements.

Handles
They facilitate the transport and especially the removal of the PCB holders out of the transport boxes. For saving space in the height they are retractable.
Clamp
It can be mounted on the side of every PCB holder. The clamp serves to fix accompanying documents like parts lists and order forms.
Bearing rail
It serves to support heavy and large PCB and protects them from slipping down while being transported.
Profile rail
It is made of aluminium extruded profile and is available with every requested length.
Partitions
The double-walled partitions are extremely stable and torsion-resistant due to the sandwich structure.
Free space
For preventing damages of protruding components the bearing edge lies 17 mm above the table surface.

Quick and simple assembly

Quick and easy adjustment due to external adjustment grooves lying 0.4 mm above the surface.

Transport container

The PCB holder can be used for the transport in Euro containers 600 x 400 mm or 400 mm x 300 mm.

The retractable handles facilitate the insertion and removal.

Stable and torsion-resistant

The partitions are extremely stable due to the double-walled structure. In addition, in case of mechanical and thermal load, the partitions can be stiffened by a metal tube.

Standing vertically

Equipped PCBs must be stored horizontally before soldering. For this purpose, the PCBs be placed vertically.

Groove lock

For preventing damages of the components while inserting the PCBs into the magazine the grooves can be blocked by groove locks.

Technical data partition 100 / 180 / 300:

Number guide slots:	32
Spacing guide slots:	10 mm
Material:	Polypropylene
Color:	Black
Continuous use temperature:	70°C

After aging no diminution of the conductivity, chemical and UV resistance excellent.

Version conductive = electrostatically volume conductive
In compliance with ESD standard DIN EN 61340-5-1

Partition wall	Slot width	Slot depth	PCB spacing	Max. equipment
100	2.8 mm	2.0 mm	10 mm	32 PCBs
180	4.0 mm	2.5 mm	10 mm	32 PCBs
300	3.5 mm	2.5 mm	10 mm	32 PCBs

The length of the profile (dimension X) is calculated according to the indications below.
Dimension D = PCB width
Dimension X = length of profile rail
