Quickfill magazine PS-3060

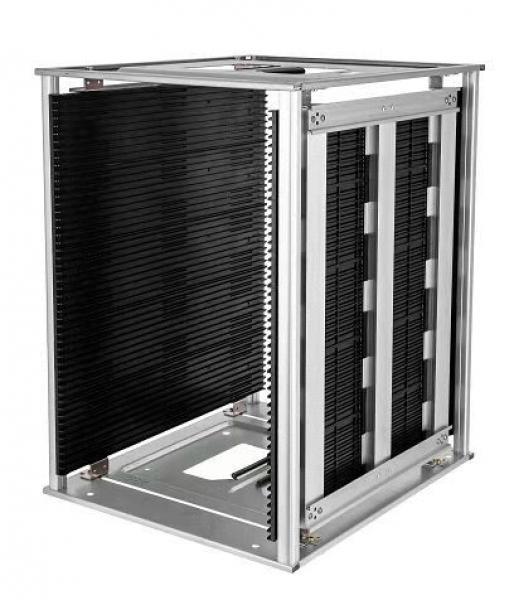

The Quickfill Magazine PS-3060 is distinguished by its solid construction made from a combination of plastic and metal. The plastic construction is made of conductive polystyrene, which is resistant up to a temperature of 60°C, while the metal parts are made of galvanized iron. These materials ensure high durability and electrostatic discharge capability.
With dimensions of 400 mm in width, 563 mm in height, and 460 mm in length, the magazine accommodates up to 50 circuit boards (PCBs) with widths ranging from 100 to 310 mm. The width adjustment is made using a screw clamp, which allows for secure fixation of the set PCB widths and prevents wear on moving parts.
The slots of the magazine are 5mm wide, 3.5mm deep, and have a pitch of 10mm, which allows for compatible use with most placement machines. The product is delivered unassembled in a box, including assembly instructions, which facilitates transport and storage.
With dimensions of 400 mm in width, 563 mm in height, and 460 mm in length, the magazine accommodates up to 50 circuit boards (PCBs) with widths ranging from 100 to 310 mm. The width adjustment is made using a screw clamp, which allows for secure fixation of the set PCB widths and prevents wear on moving parts.
The slots of the magazine are 5mm wide, 3.5mm deep, and have a pitch of 10mm, which allows for compatible use with most placement machines. The product is delivered unassembled in a box, including assembly instructions, which facilitates transport and storage.
Details
- Height [mm] Height [mm]
- 563 mm
- Length [mm] Length [mm]
- 460 mm
- PCB width PCB width
- 100 - 310 mm
- Width [mm] Width [mm]
- 400 mm
- Material Material
- polystyrene
- Type Type
- unassembled
- Width adjustment Width adjustment
- with screw clamp
- Temperature resistance Insertion Temperature resistance Insertion
- 60 °C
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Article image
Article description
Height [mm]
Length [mm]
PCB width
Width [mm]
Material
Type
Width adjustment
Price
Compare
563 mm
460 mm
50 - 300 mm
400 mm
polycarbonate / ABS
unassembled
with screw clamp
563 mm
460 mm
100 - 310 mm
400 mm
polystyrene
unassembled
with screw clamp
