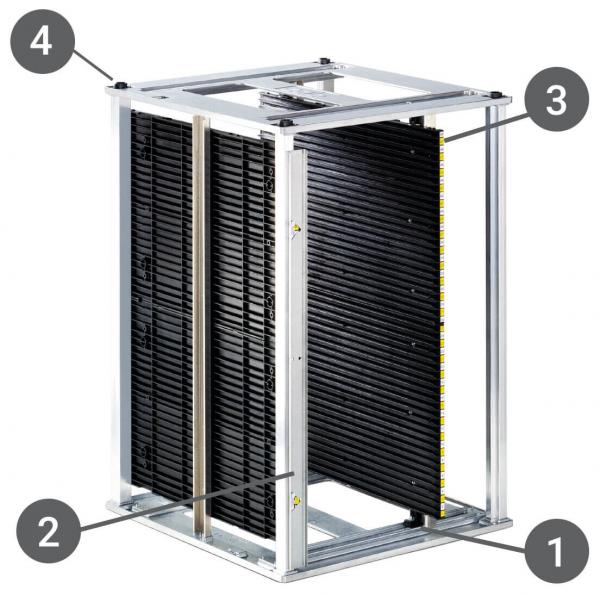

PCB magazine 602.3 M, fully assembled
The CAB 602.3 M circuit board magazine offers a robust and efficient solution for the storage and transportation of circuit boards. It is made of metal and has a high temperature resistance of up to 200°C for both the slots and the environment. The dimensions of the magazine are 400 x 320 x 563 mm (L x W x H), and it can accommodate circuit boards with a width of 40 to 250 mm and a maximum length of 387 mm. The slot depth is 3 mm.
The width adjustment is done manually with screw clamping, allowing flexible adaptation to various circuit board widths. The magazine is also ESD-safe and volume conductive, with a surface resistance of 10^9. It is stackable, which allows for space-saving storage, and features a non-losable transport lock that protects the circuit boards during transport.
Sequential numbers on the circuit board guides facilitate manual insertion of the boards, and the funnel-shaped guide grooves ensure safe insertion. Positioning strips with yellow color markings help to precisely position the circuit boards and prevent slanted insertion. Weighing 7.2 kg, the circuit board magazine offers a robust and durable storage solution.
The width adjustment is done manually with screw clamping, allowing flexible adaptation to various circuit board widths. The magazine is also ESD-safe and volume conductive, with a surface resistance of 10^9. It is stackable, which allows for space-saving storage, and features a non-losable transport lock that protects the circuit boards during transport.
Sequential numbers on the circuit board guides facilitate manual insertion of the boards, and the funnel-shaped guide grooves ensure safe insertion. Positioning strips with yellow color markings help to precisely position the circuit boards and prevent slanted insertion. Weighing 7.2 kg, the circuit board magazine offers a robust and durable storage solution.
Details
- PCB width PCB width
- 40 - 250 mm
- PCB length PCB length
- 387 mm
- Type Type
- completely assembled
- Height [mm] Height [mm]
- 563
- Length [mm] Length [mm]
- 400
- Width [mm] Width [mm]
- 320
- Conductivity Conductivity
- volume conductive
- Surface resistance Rs Surface resistance Rs
- 109
- Material Material
- metal
- ESD ESD
- yes
- PCB magazine series PCB magazine series
- Typ 600
- Width adjustment Width adjustment
- with screw clamp, manual
- Temperature resistance Environment Temperature resistance Environment
- 200 °C
- Temperature resistance Insertion Temperature resistance Insertion
- 200 °C
- Weight Weight
- 7.2 kg
