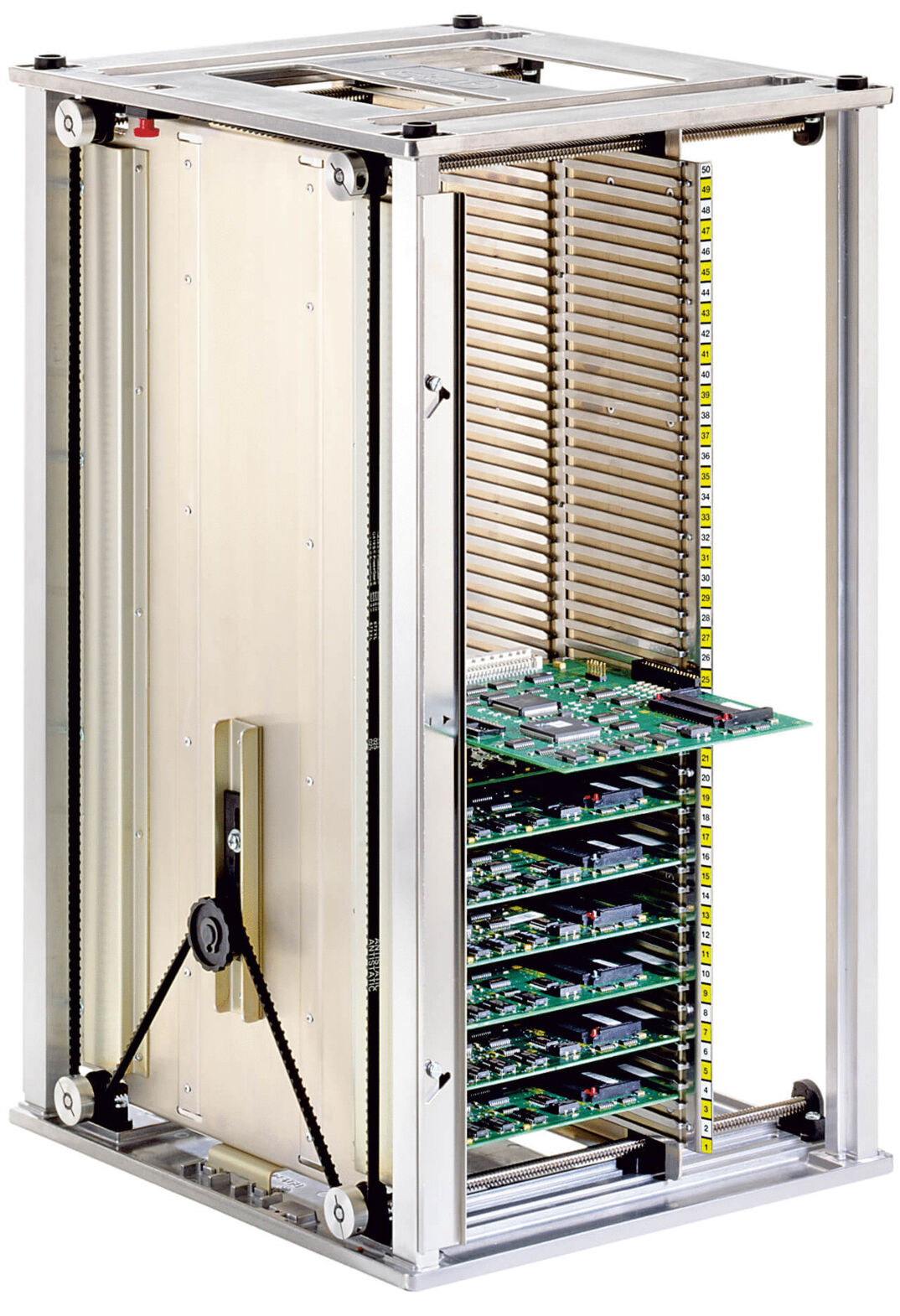

PCB magazine 804.3 M, fully assembled
The CAB 804.3 M PCB magazine offers a robust metal construction and is designed for the secure storage and transport of PCBs. With dimensions of 460 x 400 x 563 mm (L x W x H) and a weight of 9.5 kg, this magazine facilitates efficient handling of PCBs with widths from 10 to 330 mm and a maximum length of 447 mm. The slots are heat-resistant up to 200°C, while the ambient temperature can be up to 100°C.

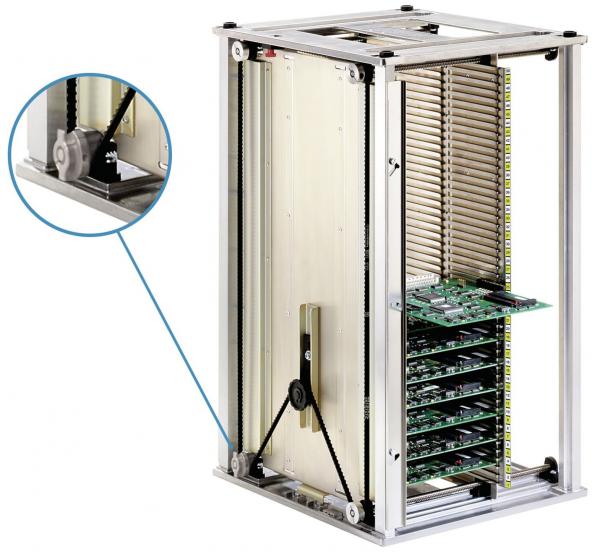

The width adjustment can be done both automatically and manually using a timing belt, allowing flexible adaptation to various PCB sizes. Additionally, the magazines are stackable, which permits space-saving storage. Safety features such as funnel-shaped guide grooves and positioning strips with yellow markings ensure precise and secure placement of the PCBs. A transport lock with automatic locking protects the contents during transport.
The magazine is characterized by its ESD safety and volume conductive properties, with a surface resistance of 10^9 Ω. It is part of the LP Magazine Series Type 800 and offers a reliable solution for handling and storing PCBs in various standard sizes.
The width adjustment can be done both automatically and manually using a timing belt, allowing flexible adaptation to various PCB sizes. Additionally, the magazines are stackable, which permits space-saving storage. Safety features such as funnel-shaped guide grooves and positioning strips with yellow markings ensure precise and secure placement of the PCBs. A transport lock with automatic locking protects the contents during transport.
The magazine is characterized by its ESD safety and volume conductive properties, with a surface resistance of 10^9 Ω. It is part of the LP Magazine Series Type 800 and offers a reliable solution for handling and storing PCBs in various standard sizes.
Details
- PCB width PCB width
- 10 - 330 mm
- PCB length PCB length
- 447 mm
- Height [mm] Height [mm]
- 563
- Length [mm] Length [mm]
- 460
- Width [mm] Width [mm]
- 400
- Conductivity Conductivity
- volume conductive
- Surface resistance Rs Surface resistance Rs
- 109 Ω
- Material Material
- metal
- ESD ESD
- yes
- PCB magazine series PCB magazine series
- Typ 800
- Type Type
- completely assembled
- Width adjustment Width adjustment
- with toothed belt, automatic or manual
- Temperature resistance Environment Temperature resistance Environment
- 100 °C
- Temperature resistance Insertion Temperature resistance Insertion
- 200 °C
- Weight Weight
- 9.5 kg
