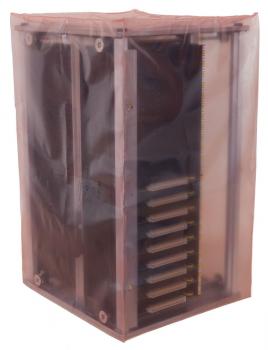

PCB magazine 807.2 PC, partially assembled
The PCB magazine 807.2 PC, offered by CAB, is an efficient solution for the storage and transport of circuit boards. It is made of high-temperature-resistant polycarbonate, which can withstand slot temperatures up to 130°C and an ambient temperature up to 80°C. The dimensions of the magazine are 535 x 530 x 570 mm (L x W x H), and it can accommodate circuit boards with a width from 10 to 460 mm and a maximum length of 522 mm.
The variable width adjustment can be done both manually and automatically via a timing belt, allowing precise adaptation to various circuit board sizes. The partially assembled design of the magazine facilitates transport and saves space.
Additionally, the magazine offers safe handling through funnel-shaped guide grooves and glued positioning strips that indicate the exact placement position and prevent the boards from being inserted at an angle. A transport lock with latches on the front and back provides additional security during transport. The magazine series is stackable, which allows for space-saving storage and is available in various standard sizes that correspond to common magazine sizes on the market.
The variable width adjustment can be done both manually and automatically via a timing belt, allowing precise adaptation to various circuit board sizes. The partially assembled design of the magazine facilitates transport and saves space.
Additionally, the magazine offers safe handling through funnel-shaped guide grooves and glued positioning strips that indicate the exact placement position and prevent the boards from being inserted at an angle. A transport lock with latches on the front and back provides additional security during transport. The magazine series is stackable, which allows for space-saving storage and is available in various standard sizes that correspond to common magazine sizes on the market.
Details
- PCB length PCB length
- 522 mm
- PCB width PCB width
- 10 - 460 mm
- Height [mm] Height [mm]
- 570
- Length [mm] Length [mm]
- 535
- Width [mm] Width [mm]
- 530
- Conductivity Conductivity
- volume conductive
- Surface resistance Rs Surface resistance Rs
- 109 Ω
- Material Material
- polycarbonate
- ESD ESD
- yes
- PCB magazine series PCB magazine series
- Typ 800
- Type Type
- partially assembled
- Width adjustment Width adjustment
- with toothed belt, automatic or manual
- Temperature resistance Environment Temperature resistance Environment
- 80 °C
- Temperature resistance Insertion Temperature resistance Insertion
- 130 °C
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
