CORTRONIC American Box TAB 362 x 251 x 140 mm

Name: CORTRONIC American Box TAB 362 x 251 x 140 mm
SKU: COR-10.TAB
Price: 4.86 EUR
Availability: InStock

ArticleNo: COR-10.TAB

CORTRONIC American Box TAB 362 x 251 x 140 mm

dpvlink:

24275

inside LxWxH [mm]:

362 x 251 x 140

Dimensions outside:

373 x 259 x 156

Properties:

Further product information

Minimum order:

10 PCE

Length x Width x Height:

Availability: at short notice

at short notice

NEW

4,86 EUR

excl. 19% tax

10 PCE

Compare

Notice / Inquire

Product Info

CORTRONIC American Box TAB 362 x 251 x 140 mm

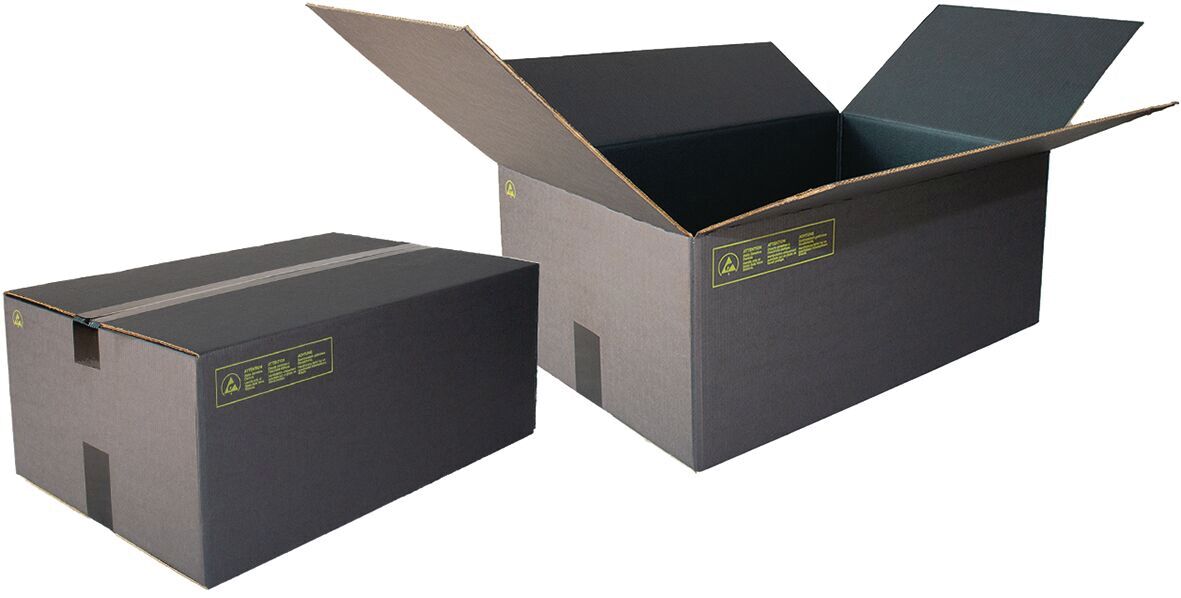

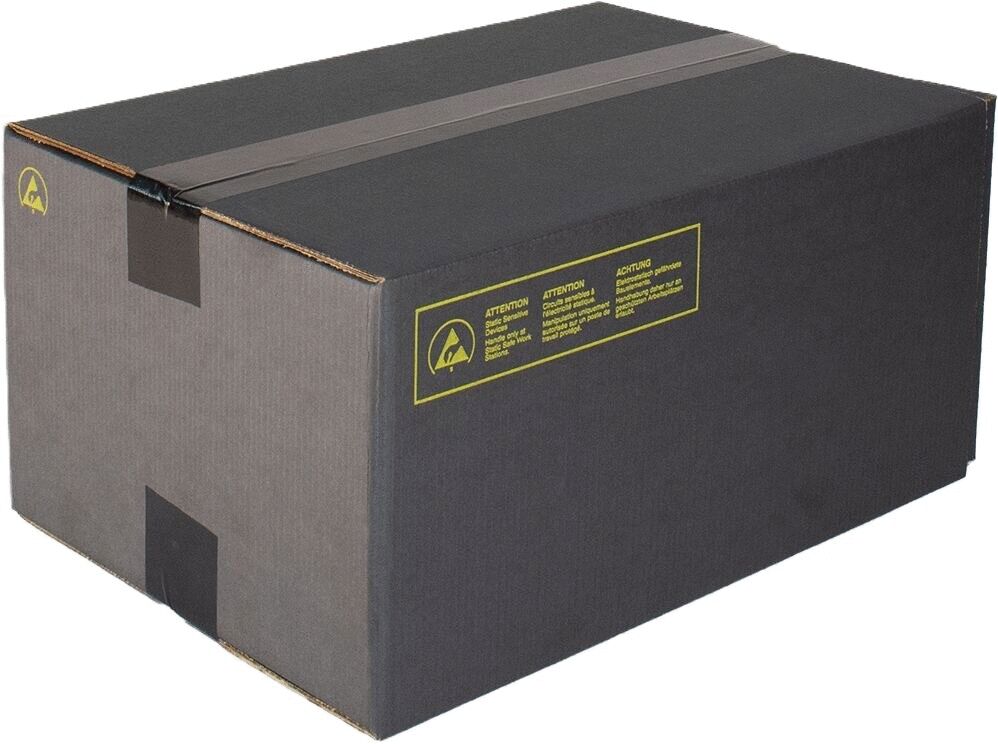

The CORTRONIC American Box TAB, manufactured by Kolb, is a highly functional packaging solution specifically designed for the protection of electronic components. With internal dimensions of 362 x 251 x 140 mm, it provides ample space for various items. This box is distinguished by its electrostatically conductive coating both inside and outside, meeting the standards of the ESD norm DIN EN 61340-5-1. The outer surface is also water-repellent and scratch-resistant, enhancing the longevity of the box.
The CORTRONIC American Box TAB is fully recyclable and offers excellent electrostatic shielding with less than 10 nJ and a rapid discharge time of less than one second. The volume resistance is between 10^7 and 10^8 Ω. The separately available adhesive tape 10 KB is required to secure the contents. The box comes standard with an ESD warning print, type designation, and the recycling symbol, all in an elegant black color scheme.

Details

Color Color: black
Height Height: 156 mm
Internal height: 140 mm
Internal length: 362 mm
Internal width Internal width: 251 mm
Length Length: 373 mm
Width Width: 259 mm
Electrostatic shielding Electrostatic shielding: <10 nJ
Static decay time max. Static decay time max.: <1 s
Volume resistance Volume resistance: 10⁷ - 10⁸ Ω
recyclable recyclable: yes

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Product Family

CORTRONIC American Box TAB

The CORTRONIC American Box TAB made of corrugated cardboard is a highly functional packaging solution specially developed for the protection of electronic components. The folding boxes have the following common properties:
