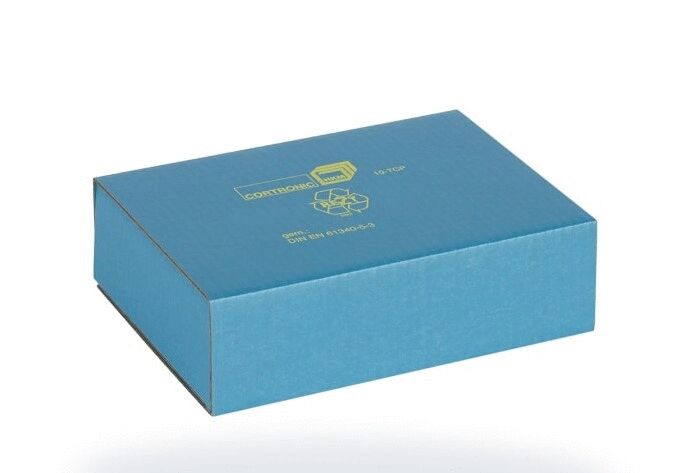

The image shows a square, turquoise cardboard packaging. On the top, there are some symbols and text printed in yellow. The box appears simple and modern.

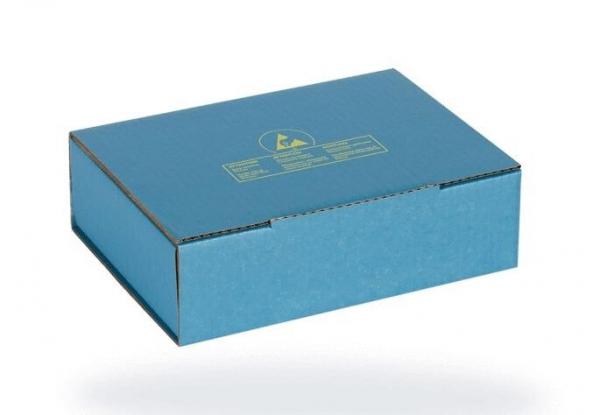

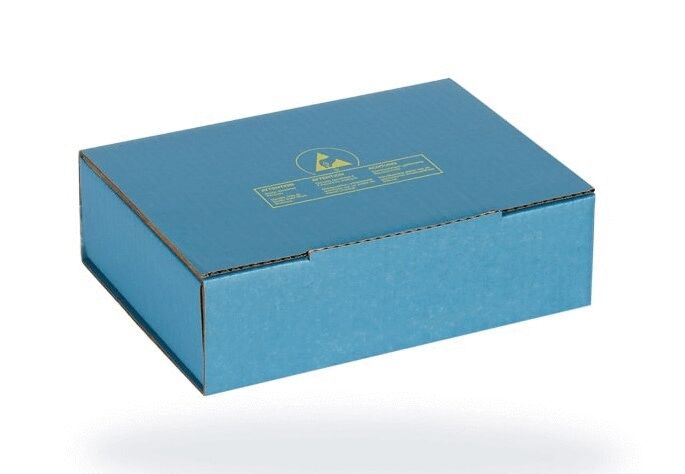

The image shows a rectangular, blue cardboard box with a smooth surface. On the top, there is a yellow graphic and some prints. The box has a flat shape and is closed.

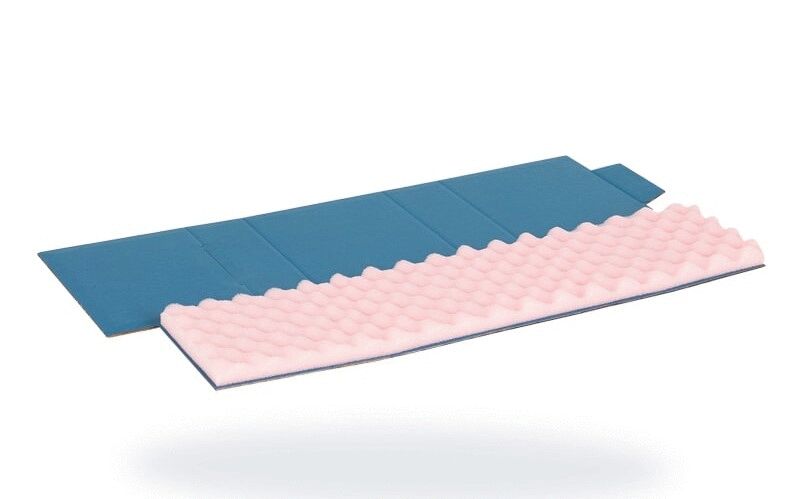

The image shows a folded sleeping pad with a wavy, pink surface on top and a smooth, blue side on the bottom. The mat is lightweight and suitable for outdoor activities.

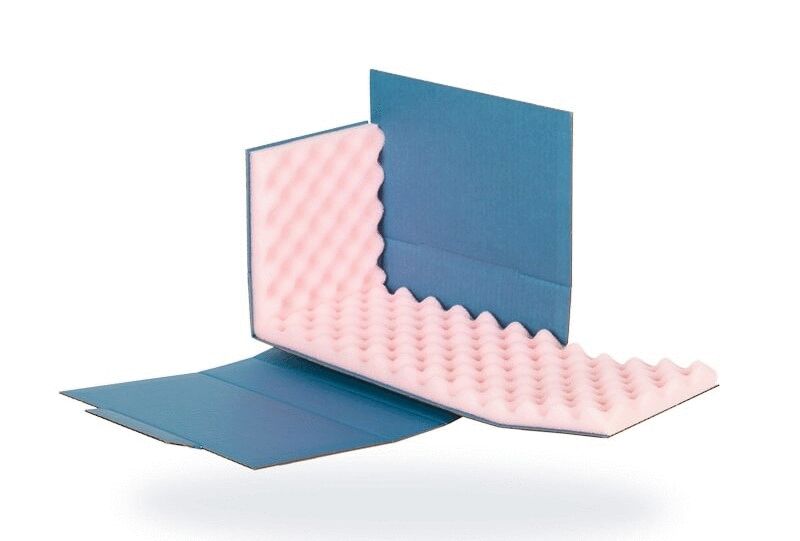

The image shows an L-shaped foam block with a rough, wavy surface in pink. It is surrounded by a blue cardboard and has a foldable structure.

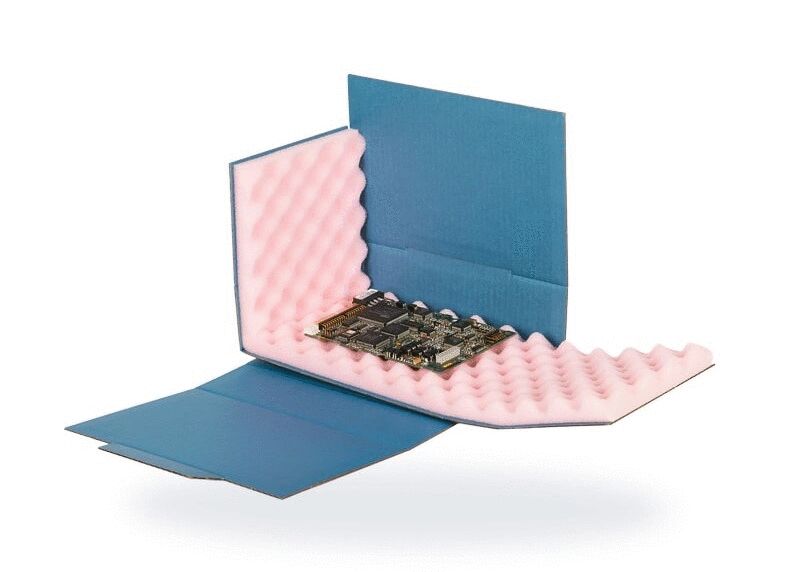

The image shows an electronic circuit board encased in a protective box made of blue cardboard and pink foam. The structure serves to protect the circuit board.
Preview: The image shows a square, turquoise cardboard packaging. On the top, there are some symbols and text printed in yellow. The box appears simple and modern.
Preview: The image shows a rectangular, blue cardboard box with a smooth surface. On the top, there is a yellow graphic and some prints. The box has a flat shape and is closed.
Preview: The image shows a folded sleeping pad with a wavy, pink surface on top and a smooth, blue side on the bottom. The mat is lightweight and suitable for outdoor activities.
Preview: The image shows an L-shaped foam block with a rough, wavy surface in pink. It is surrounded by a blue cardboard and has a foldable structure.
Preview: The image shows an electronic circuit board encased in a protective box made of blue cardboard and pink foam. The structure serves to protect the circuit board.
CORTRONIC shipping boxes Cor-Pack 140x200x50 mm
(Product No.: COR-10.TCP)
The image shows a square, turquoise cardboard packaging. On the top, there are some symbols and text printed in yellow. The box appears simple and modern.
The image shows a rectangular, blue cardboard box with a smooth surface. On the top, there is a yellow graphic and some prints. The box has a flat shape and is closed.
The image shows a folded sleeping pad with a wavy, pink surface on top and a smooth, blue side on the bottom. The mat is lightweight and suitable for outdoor activities.
The image shows an L-shaped foam block with a rough, wavy surface in pink. It is surrounded by a blue cardboard and has a foldable structure.
The image shows an electronic circuit board encased in a protective box made of blue cardboard and pink foam. The structure serves to protect the circuit board.
Mobile Preview: The image shows a square, turquoise cardboard packaging. On the top, there are some symbols and text printed in yellow. The box appears simple and modern.
Mobile Preview: The image shows a rectangular, blue cardboard box with a smooth surface. On the top, there is a yellow graphic and some prints. The box has a flat shape and is closed.
Mobile Preview: The image shows a folded sleeping pad with a wavy, pink surface on top and a smooth, blue side on the bottom. The mat is lightweight and suitable for outdoor activities.
Mobile Preview: The image shows an L-shaped foam block with a rough, wavy surface in pink. It is surrounded by a blue cardboard and has a foldable structure.
Mobile Preview: The image shows an electronic circuit board encased in a protective box made of blue cardboard and pink foam. The structure serves to protect the circuit board.
Notice / Inquire

CORTRONIC shipping boxes Cor-Pack 140x200x50 mm

dpvlink:
5780
inside LxWxH [mm]:
200 x 140 x 50
Length :
207 mm
Width :
146 mm
Height :
62 mm
Foam:
napped foam
Properties:
Further product information

Minimum order:
10 PCE
chevron-down
available available
3,08 EUR

excl. 19% tax

10 PCE
Compare Compare
Notice / Inquire
Product Info

CORTRONIC shipping boxes Cor-Pack 140x200x50 mm

The CORTRONIC shipping box Cor-Pack, manufactured by Kolb, is distinguished by its precise internal dimensions of 200 x 140 x 50 mm and is specifically designed for technical shipping. This box is equipped with a blue, long-lasting colorfast cardboard that features a standard ESD warning print, type designation, and a recycling symbol. The electrostatic shielding is ensured by the dissipative pink bubble foam with a conductivity according to DIN EN 61340-5-1, offering a surface resistance of 10^7 - 10^8 Ohm, thus ensuring the safety of sensitive electronic components.
The external dimensions of the box are 207 x 146 x 62 mm, and it meets the FEFCO code 0473. Each box includes a 20 mm thick foam padding that is both protective and conductive. The minimum order quantity for this product is 10 pieces. Additionally, the box is marked with the environmental label RESY 0062, confirming its recyclability.
Length
Length
207 mm
Width
Width
146 mm
Height
Height
62 mm
Foam
Foam
napped foam
Color
Color
blue
Internal height
50 mm
Internal length
200 mm
Internal width
Internal width
140 mm
Conductivity foam
Conductivity foam
dissipative
Surface resistance Rs
Surface resistance Rs
107 - 108 Ω
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 289
Complete Catalog 2023 - 2024

Product Family

CORTRONIC® Shipping boxes Cor-Pack

The CORTRONIC Cor-Pack shipping boxes offer an optimum solution for the safe shipping of sensitive electronic components. The shipping boxes have the following common features:

  • blue
  • long-lasting color fastness
  • Surface resistance inner/outer cover: RS = 107 - 108 Ω
  • incl. 20 mm pink, dissipative profile foam
  • high shielding properties
  • electrostatic shielding 10 nJ (Energy Bag Test)
  • environmental label RESY 0062
  • Standard imprint: ESD warning imprint, type designation, recycling symbol
  • in compliance with the DIN EN 61340-5-1 standard

Article image
Article description
Dimensions inside LxWxH [mm]
Length
Width
Height
Foam
Price
Compare
COR-05.TCP - CORTRONIC shipping boxes Cor-Pack 150x115x40 mm
COR-05.TCP
CORTRONIC shipping boxes Cor-Pack 150x115x40 mm
150 x 115 x 40
156 mm
122 mm
51 mm
napped foam
2,23 EUR
COR-10.TCP - CORTRONIC shipping boxes Cor-Pack 140x200x50 mm
COR-10.TCP
CORTRONIC shipping boxes Cor-Pack 140x200x50 mm
200 x 140 x 50
207 mm
146 mm
62 mm
napped foam
3,08 EUR
COR-20.TCP - CORTRONIC shipping boxes Cor-Pack 280x140x100 mm
COR-20.TCP
CORTRONIC shipping boxes Cor-Pack 280x140x100 mm
280 x 140 x 100
289 mm
147 mm
113 mm
napped foam
4,79 EUR
