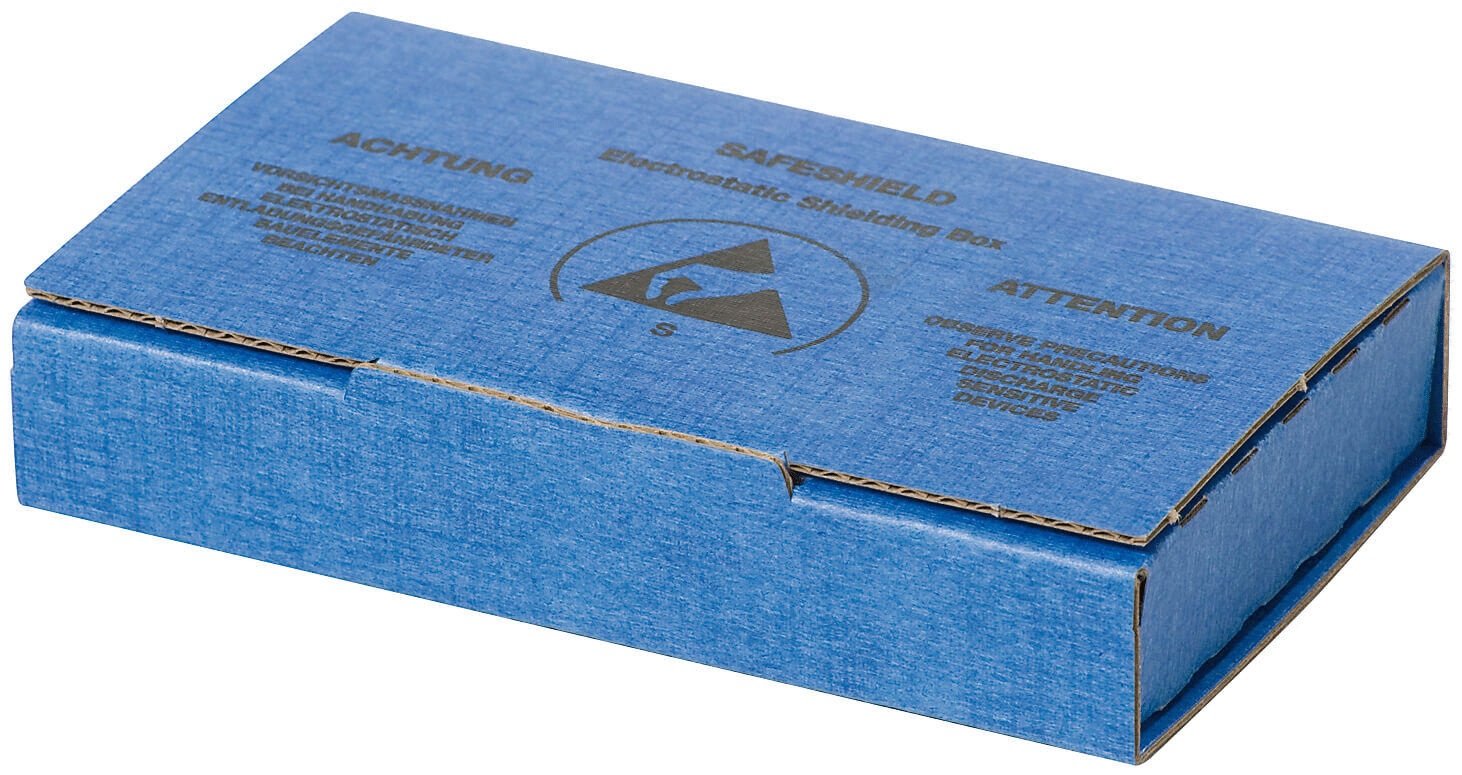

The image shows a rectangular, blue cardboard box with a matte surface. In the center, there is a symbolic triangle depicted, surrounded by text. The box has a simple, functional shape.
SAFESHIELD Chipbox 95x30x15 mm
(Product No.: 5510.902)
The image shows a rectangular, blue cardboard box with a matte surface. In the center, there is a symbolic triangle depicted, surrounded by text. The box has a simple, functional shape.
Notice / Inquire

SAFESHIELD Chipbox 95x30x15 mm

SAFESHIELD Chipbox 95x30x15 mm

dpvlink:
616
inside LxWxH [mm]:
95 x 30 x 15
Foam:
PE foam for pin insertion / 6 mm
Properties:
Further product information
Parting Inserts
Configure now
Interlayers
Configure now


available available
0,87 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

SAFESHIELD Chipbox 95x30x15 mm

The SAFESHIELD Chipbox, measuring 95x30x15 mm, is a highly functional shipping box specifically designed for the safe transportation of sensitive electronic components. It provides effective electrostatic shielding of less than 1 nJ and meets the ESD standard DIN EN 61340-5-1, making it an ideal choice for technical applications. The box is in a distinctive blue and features a standard print that includes an ESD warning label, type designation, and a recycling symbol.
Inside, the SAFESHIELD Chipbox is equipped with a 6 mm thick PE foam insert, offering additional protection and ensuring the integrity of contents during transport. The surface resistance of the box ranges between 10^9 and 10^10 Ohms. The packaging conforms to the FEFCO Code 0400, highlighting its quality and reliability.
The SAFESHIELD shipping boxes are not only functional but also designed with environmental consciousness, as evidenced by the integrated recycling symbol.
Foam
Foam
PE foam for pin insertion / 6 mm
Color
Color
blue
Internal height
15 mm
Internal length
95 mm
Internal width
Internal width
30 mm
Electrostatic shielding
Electrostatic shielding
<1 nJ
Surface resistance Rs
Surface resistance Rs
109 - 1010 Ω
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 290
Complete Catalog 2023 - 2024
Configurators:
Parting Inserts
Configurators:
Interlayers

Product Family

SAFESHIELD Shipping boxes

SAFESHIELD shipping boxes offer a high level of electrostatic shielding against electrostatic discharges and fields and are ideal for both internal and external transportation of sensitive electronic components. They are available either without foam or with PE plug-in foam/6mm or with profile foam/20mm. The shipping boxes have the following common features:

  • reusable
  • blue
  • Inner and outer cover permanently dissipative and abrasion-resistant
  • typical surface resistance inner/outer cover RS = 109 - 1010 Ω
  • High shielding properties due to conductive inner layer
  • Electrostatic shielding < 1 nJ (EnergyTest)
  • Good mechanical properties
  • Corrosion-free
  • recyclable
  • Standard imprint: ESD warning imprint, type designation, recycling symbol
  • In compliance with ESD standard DIN EN 61340-5-1

Suitable foam inserts are also separately available in this link


Article image
Article description
Dimensions inside LxWxH [mm]
Foam
Price
Compare
5510.912 - SAFESHIELD shipping box 250x191x110 mm
5510.912
SAFESHIELD shipping box 250x191x110 mm
250 x 191 x 110
without foam
5,44 EUR
5510.913 - SAFESHIELD shipping box 300x300x100 mm
5510.913
SAFESHIELD shipping box 300x300x100 mm
300 x 300 x 100
without foam
5,88 EUR
5510.914 - SAFESHIELD shipping box 330x180x70 mm
5510.914
SAFESHIELD shipping box 330x180x70 mm
330 x 180 x 70
without foam
5,81 EUR
5510.915 - SAFESHIELD shipping box 380x320x60 mm
5510.915
SAFESHIELD shipping box 380x320x60 mm
380 x 320 x 60
without foam
5,59 EUR
5510.916 - SAFESHIELD shipping box 393x300x90 mm
5510.916
SAFESHIELD shipping box 393x300x90 mm
393 x 300 x 90
without foam
7,72 EUR
5510.917 - SAFESHIELD shipping box 420x220x65 mm
5510.917
SAFESHIELD shipping box 420x220x65 mm
420 x 220 x 65
without foam
4,49 EUR
5510.918 - SAFESHIELD shipping box 490x460x80 mm
5510.918
SAFESHIELD shipping box 490x460x80 mm
490 x 460 x 80
without foam
15,45 EUR
5510.903.H - SAFESHIELD Shipping box 178x127x64 mm
5510.903.H
SAFESHIELD Shipping box 178x127x64 mm
178 x 127 x 64
without foam
1,42 EUR
5510.902 - SAFESHIELD Chipbox 95x30x15 mm
5510.902
SAFESHIELD Chipbox 95x30x15 mm
95 x 30 x 15
PE foam for pin insertion / 6 mm
0,87 EUR
5510.903 - SAFESHIELD shipping box 178x127x38 mm
5510.903
SAFESHIELD shipping box 178x127x38 mm
178 x 127 x 38
without foam
1,12 EUR
5510.904 - SAFESHIELD shipping box 250x191x38 mm
5510.904
SAFESHIELD shipping box 250x191x38 mm
250 x 191 x 38
without foam
2,19 EUR
5510.905 - SAFESHIELD shipping box 250x191x64 mm
5510.905
SAFESHIELD shipping box 250x191x64 mm
250 x 191 x 64
without foam
2,55 EUR
5510.906 - SAFESHIELD shipping box 267x216x64 mm
5510.906
SAFESHIELD shipping box 267x216x64 mm
267 x 216 x 64
without foam
3,10 EUR
5510.910 - SAFESHIELD shipping box 420x220x40 mm
5510.910
SAFESHIELD shipping box 420x220x40 mm
420 x 220 x 40
without foam
3,49 EUR
5510.911 - SAFESHIELD shipping box 400x300x65 mm
5510.911
SAFESHIELD shipping box 400x300x65 mm
400 x 300 x 65
without foam
5,00 EUR
5510.907 - SAFESHIELD shipping box 200x140x50 mm
5510.907
SAFESHIELD shipping box 200x140x50 mm
200 x 140 x 50
profile foam / 20 mm
3,15 EUR
5510.908 - SAFESHIELD Chipbox 100x60x15 mm
5510.908
SAFESHIELD Chipbox 100x60x15 mm
100 x 60 x 15
PE foam for pin insertion / 6 mm
0,82 EUR
5510.909 - SAFESHIELD Chipbox 120x100x15 mm
5510.909
SAFESHIELD Chipbox 120x100x15 mm
120 x 100 x 15
PE foam for pin insertion / 6 mm
1,62 EUR
Show Compare List (0)

This product is compatible with (for example):

The picture shows a yellow warning sign. At the top is a black symbol with a hand and a triangle. Below are instructions for safe handling of electrostatically sensitive components in German and English.
Package seal
Packaging label, 50 x 35 mm, German/English
Roll = 500 pieces
Material: forgery-proof, self-adhesive foil
++ tamper-proof - tears when being removed ++
dpvlink
16605

54,15 EUR
Show product
The image displays a yellow security seal with black lettering. It warns that it will break if removed, and informs about electrostatically sensitive components.
Sealing adhesive tape with tearing effect...
Seal label made of PE (ESD warning label)
is destroyed when being removed
26 x 105 mm (roll = 1000 PCs)
dpvlink
17711

61,75 EUR
Show product

Customers who bought this product also bought the following products:

The image displays a long, blue coat with a collar and long sleeves. It features two side pockets and a small chest pocket, which bears a yellow logo.
Preview: Work coat ESD BlueLine plus BL-180 3/4 design, long sleeves
Preview: The image shows a blue coat from the side view. It has long sleeves and a clear, fashionable silhouette without any conspicuous embellishments or patterns.
Preview: The image shows a simple, solid-colored, blue shirt with long sleeves. It features a classic collar and is depicted from the back, without any additional embellishments.
Preview: The image shows a blue coat depicted from the side. The coat has long sleeves and a chest pocket. It appears simple and professional.
Preview: The image shows a long, blue lab coat with an embroidered logo. The coat features a collar, two side pockets, and is made from a durable material.
Work coat ESD BlueLine plus BL-180 3/4 design,...
ESD work coat type BL-180 ++BlueLine plus++
3/4 design , long sleeves
Color: blue / blue / dark blue
Sizes XS - 4XL
ESD warning symbol/woven logo on breast pocket
dissipative (DIN EN 61340-5-1)
dpvlink
24837

43,10 EUR
Show product
The image shows a blue package that is open and contains a circuit board. The board is placed on soft, pink foam and is securely packaged. Next to the open box lies another closed box.
CORTRONIC® shipping box 40x40x15 mm
Cortronic shipping box 40 x 40 x 15 mm/inside
dissipative, warning imprint, incl. 1 conductive
napped & PU foam for pin insertion
(DIN EN 61340-5-1 + IEC)
+++ Minimum order quantity 10 pieces+++
dpvlink
626

0,78 EUR
Show product

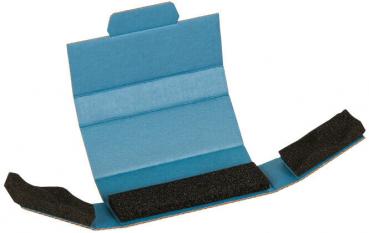

The image shows a foldable blue cardboard box with two black foam strips on the sides. It has an upright center and is probably used for protecting or transporting items.
