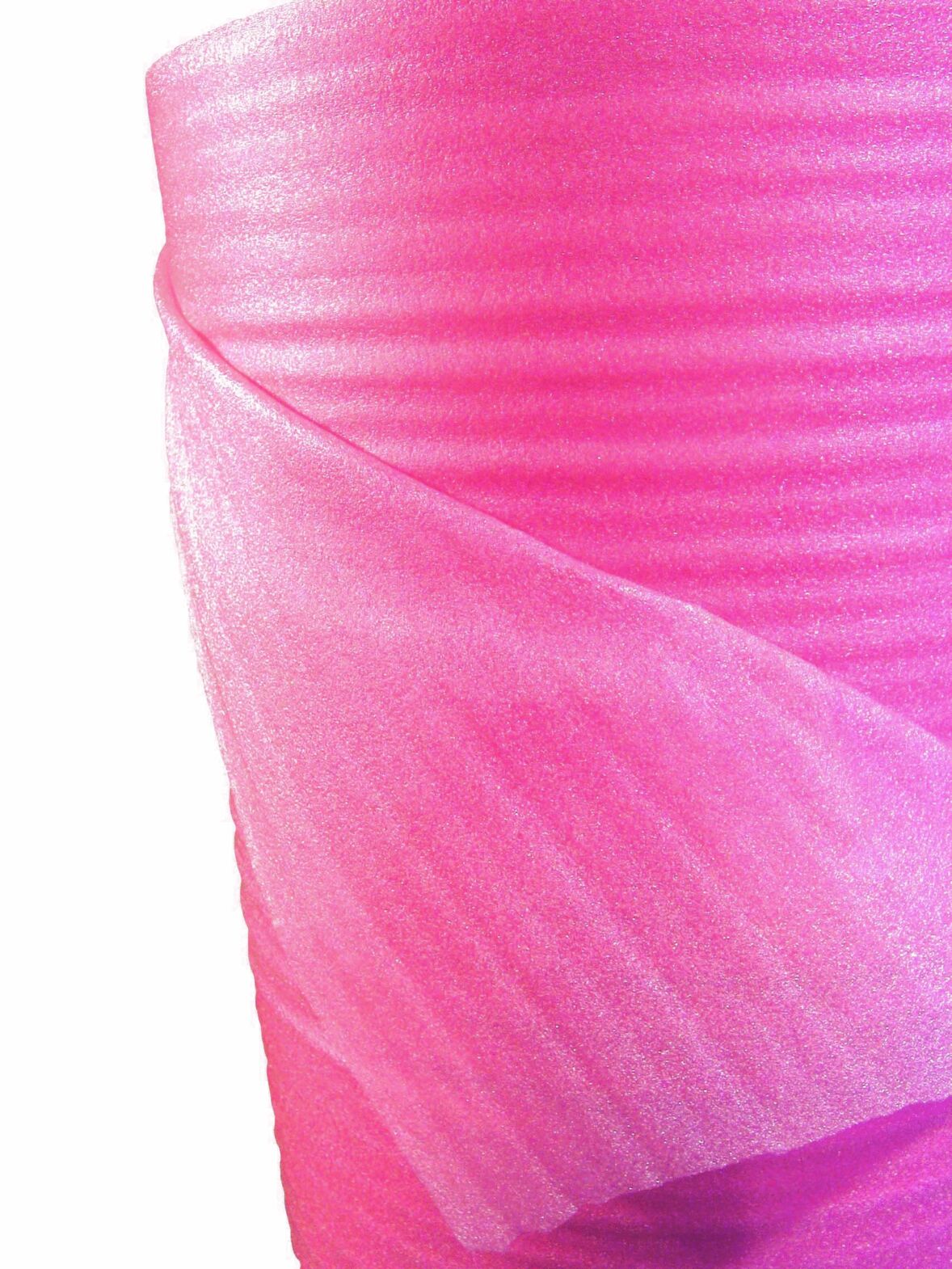

The image shows a roll of wavy, translucent, pink material. One end of the material is unrolled and gently flutters to the side, while the rest of the roll remains intact.
PE foam, antistatic 600 mm x 150 m
(Product No.: 4561.15.600)
The image shows a roll of wavy, translucent, pink material. One end of the material is unrolled and gently flutters to the side, while the rest of the roll remains intact.
Notice / Inquire

PE foam, antistatic 600 mm x 150 m

PE foam, antistatic 600 mm x 150 m

dpvlink:
9504
Width :
600 mm
Roll length [m]:
150 m
Thickness :
1.5 mm
Properties:
Note:
- Further thicknesses, perforations, cuttings, bags and covers available on request -
Further product information

chevron-down
available available
58,50 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

PE foam, antistatic 600 mm x 150 m

The antistatic PE foam film from EPApack provides an effective solution for protection and packaging requirements in ESD-sensitive environments. With a roll width of 600 mm and a length of 150 m, this pink film covers an area of 90 m². The thickness of the material is 1.5 mm, ensuring optimal cushioning and protecting the product from scratches and dust.
The film is electrostatically dissipative according to DIN EN 61340-5-1 and has a surface resistance of 10^11 Ω. The material, polyethylene, has a density of 17 - 35 kg/cm³ and is weldable, though not resealable. With proper storage, the foam can last up to 2 years.
This recyclable and easy-to-process foam film is excellent for use as a cover, wrap, as well as a separator and interlayer, and can be precisely adapted to the shape of the product to be protected.
Width
Width
600 mm
Roll length [m]
Roll length [m]
150 m
Thickness
Thickness
1.5 mm
Color
Color
rose
Conductivity
Conductivity
antistatic
Surface resistance Rs
Surface resistance Rs
1011 Ω
Material
Material
polyethylene
Material density
Material density
17 - 35 kg/cm³
heat-sealable
heat-sealable
yes
reclosable
reclosable
no
Shelf life
Shelf life
2 years , when stored properly
- Further thicknesses, perforations, cuttings, bags and covers available on request -
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 284
Complete Catalog 2023 - 2024
EPApack® ESD packaging solutions

Product Family

PE Foam film, antistatic

Antistatic PE foam film, suitable as cover, envelope, separate or intermediate layer, optimal cushioning effect, easily workable, accurate adaption to the product, protects from scratching and contamination by dust, recyclable. Color: pink.

In compliance with the ESD standard DIN EN 61340-5-1


Article image
Article description
Width
Roll length [m]
Thickness
Price
Compare
4561.15.600 - PE foam, antistatic 600 mm x 150 m
4561.15.600
PE foam, antistatic 600 mm x 150 m
600 mm
150 m
1.5 mm
58,50 EUR
4561.15.1200 - PE foam film, antistatic 1200 mm x 150 m
4561.15.1200
PE foam film, antistatic 1200 mm x 150 m
1200 mm
150 m
1.5 mm
94,80 EUR
