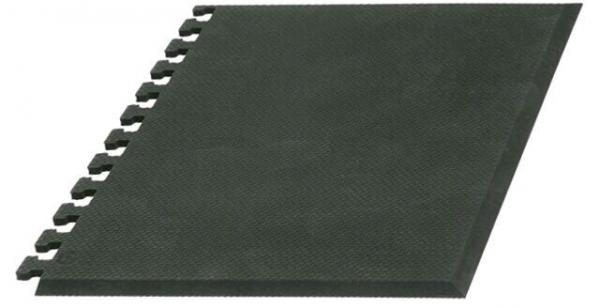

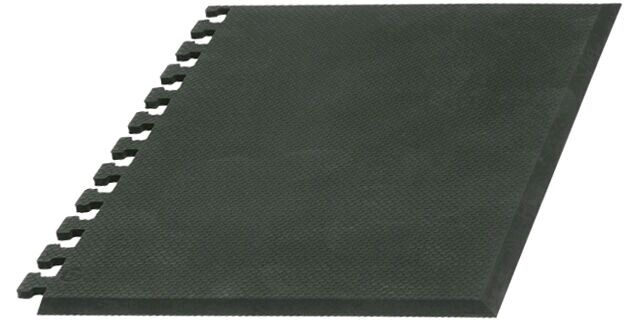

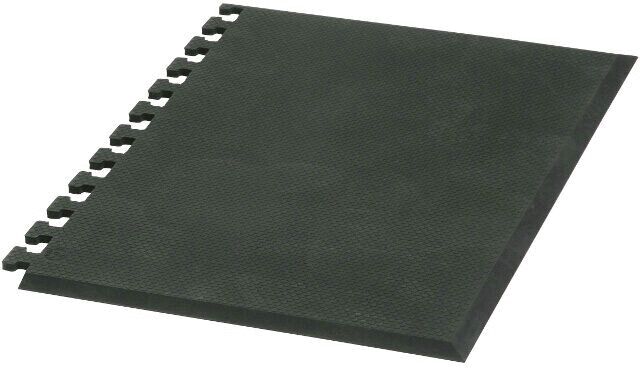

Preview: The image displays a rectangular, foam-like mat in dark green. On one side, the corners have jagged connections to join multiple mats together. The surface is slightly textured.

Anti-fatigue mat ECOSTAT walking comfort ESD

(Product No.: 1307.B1.Q970.Q635.VE)

Mobile Preview: The image shows a green, square notebook with a textured surface. It has a ring binder on the side, which allows for easy removal or addition of pages.

Mobile Preview: The image displays a rectangular, foam-like mat in dark green. On one side, the corners have jagged connections to join multiple mats together. The surface is slightly textured.

(Product No.: 1307.B1.Q970.Q635.VE)

Anti-fatigue mat ECOSTAT walking comfort ESD

Name: Anti-fatigue mat ECOSTAT walking comfort ESD
SKU: 1307.B1.Q970.Q635.VE
Price: 87.95 EUR
Availability: InStock

ArticleNo: 1307.B1.Q970.Q635.VE

Anti-fatigue mat ECOSTAT walking comfort ESD

dpvlink:

17656

Version:

horizontal

Width :

970 mm

Length :

635 mm

Thickness :

13 mm

Properties:

Further product information

Availability: at short notice

at short notice

87,95 EUR

excl. 19% tax

1 PCE

Compare

Notice

Product Info

Anti-fatigue mat ECOSTAT walking comfort ESD

The anti-fatigue mat ECOSTAT Gehkomfort ESD from Eurostat offers an effective solution for relieving muscles and joints. This mat is specifically designed for areas where employees must stand for long periods and features excellent thermal and impact sound insulation properties. The surface is slip-resistant and textured, which enhances walking, turning, and standing characteristics. Thanks to the innovative puzzle technique, the walking surface can be quickly and easily expanded in both transverse and longitudinal formats, with the smallest unit consisting of two end pieces.
The mat complies with the ESD standard DIN EN 61340-5-1 and is available in black. Its dimensions are 970 x 635 x 13 mm. The mat has a fire class rating of Bfl – s1 and is temperature resistant from -40 to 80 °C. The resistance to grounding ranges between 10^6 and 10^7 Ω, and it has a Shore hardness of 30 Shore A. The beveled side edge and corners provide additional safety and comfort during use. Ideal for technical areas where both comfort and safety standards are of the highest priority.

Details

Version Version: horizontal
Width Width: 970 mm
Length Length: 635 mm
Thickness Thickness: 13 mm
Fire class Fire class: Bfl – s1
Color Color: black
Bleeder resistance Bleeder resistance: 10⁶ - 10⁷ Ω
Shore hardness Shore hardness: 30 Shore A
Temperature resistance Temperature resistance: -40 - 80 °C

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Catalogues

Page: 159

Complete Catalog 2023 - 2024

Product Family

Anti-fatigue mat ECOSTAT walking comfort

for relieving muscles and joints
heat- and impact noise-insulating
improved walking, rotating and standing
running surface quickly and arbitrarily extendable by interlocking system
smallest compound: 2 end pieces
sloped edge/corners; dissipative and slip-resistant mat with impregnated surface
