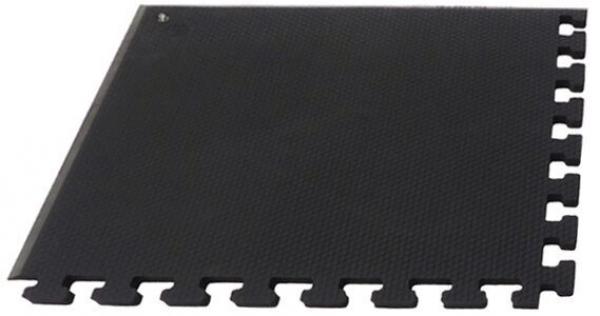

Antifatigue mat ECOSTAT walking comfort ESD
Antifatigue mat ECOSTAT walking comfort ESD
The anti-fatigue mat ECOSTAT Walking Comfort ESD, manufactured by Eurostat, is specifically designed for work environments that require relief for muscles and joints. This mat not only offers improved walking, turning, and standing characteristics, but is also heat and impact sound insulating. Thanks to the innovative puzzle technique, the walking surface can be quickly and arbitrarily extended, with the smallest unit consisting of two end pieces.The mat features a beveled edge design and an embossed surface that is slip-resistant and ESD compliant (meets ESD standard DIN EN 61340-5-1). Moreover, it is available in both transverse and longitudinal formats and offers a temperature resistance from -40 to +80 degrees Celsius.
The technical specifications include a width and length of 650 mm each, a thickness of 13 mm, and a resistance to ground of 10^6 - 10^7 Ω. The mat is available in black and meets the fire class Bfl – s1, making it a safe choice for corresponding work environments.
Details
- Version Version
- corner piece
- Width Width
- 650 mm
- Length Length
- 650 mm
- Thickness Thickness
- 13 mm
- Fire class Fire class
- Bfl – s1
- Color Color
- black
- Bleeder resistance Bleeder resistance
- 106 - 107 Ω
- Shore hardness Shore hardness
- 30 Shore A
- Temperature resistance Temperature resistance
- -40 - 80 °C
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Anti-fatigue mat ECOSTAT walking comfort
In compliance with ESD standard DIN EN 61340-5-1
- connection: 10mm snap
- nap diameter 8 mm
- material thickness: 13 mm
- color: black
- available in landscape and longitudinal format
Article image
Article description
Version
Width
Length
Thickness
Price
Compare
vertical
650 mm
910 mm
13 mm
vertical
650 mm
940 mm
13 mm
corner piece
650 mm
650 mm
13 mm
horizontal
970 mm
610 mm
13 mm
horizontal
970 mm
635 mm
13 mm
