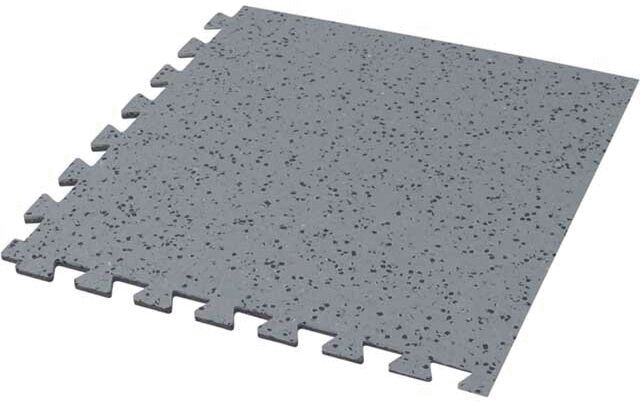

The image shows a square, gray floor tile with small black speckles. The edges are dimpled to facilitate easy installation.
ECOSTAT-DF Corner ramp element
(Product No.: 1330.PF.06.RES)
The image shows a square, gray floor tile with small black speckles. The edges are dimpled to facilitate easy installation.
Notice / Inquire

ECOSTAT-DF Corner ramp element

ECOSTAT-DF Corner ramp element

dpvlink:
23230
Width :
310 mm
Length :
310 mm
Thickness :
6 mm
Properties:
Further product information

available available
41,15 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

ECOSTAT-DF Corner ramp element

The ECOSTAT-DF ramp corner element is a two-layer composite covering in tile form, distinguished by its puzzle-like dovetail connection. This product is specifically designed for technical applications where volume conductivity and abrasion resistance are required. It is available with a thickness of 6 mm and dimensions of 310 x 310 mm, and meets the ESD standard DIN EN 61340-5-1, making it ideal for ESD-sensitive environments.
The material is flame-retardant (fire class Bfl – s1) and has a resistance to ground of 10^4 - 10^5 Ω. The high Shore hardness of 90 Shore A ensures excellent resistance under mechanical stress. Thanks to its suitability for chair casters and forklifts, and the fact that it is self-laying and walkable during installation, the product minimizes downtime in operational processes. The ease of machining with woodworking tools allows for straightforward customization to specific requirements, while the gray color provides an attractive appearance.
Width
Width
310 mm
Length
Length
310 mm
Thickness
Thickness
6 mm
Fire behavior
Fire behavior
hardly inflammable
Fire class
Fire class
Bfl – s1
Bleeder resistance
Bleeder resistance
104 - 105 Ω
Shore hardness
Shore hardness
90 Shore A
ESD
ESD
yes
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a roll of tape in a copper-colored shine. The roll has an inner diameter made of cardboard and is smooth. On the inside, various geometric patterns are depicted.
Copper tape, self-adhesive
Copper tape, 19 mm x 50 m,
self-adhesive (++adhesive conductive++)
dpvlink
3213

44,50 EUR

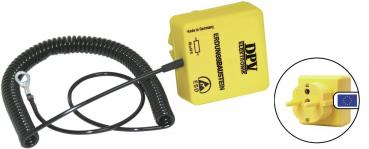

The image displays a yellow, square device with a long, spiral cable. A small plug is visible, which is used to operate the device. A section shows the plug socket.
Grounding plug eyelet M4, 2.4 m
Grounding plug (spiral cable 2.4 m)
eye M4/5 - Schuko dummy plug
dpvlink
3654

12,95 EUR
The image displays a yellow electrical device with a spiral cable. It is square and has a connection for a Swiss socket. A small circle illustrates the plug concept.
Grounding plug eyelet M4, 2.4 m (version...
Grounding plug (spiral cable 2.4 m)
eye M4/5 - dummy plug CH
dpvlink
3654

Price on request
The image shows a yellow device on a wall. It features a warning symbol and is connected to a green cable. Below it, a copper strip runs along the ground.
Grounding connection set for floor coverings...
Grounding connection set for floor coverings
with test point / 4 mm socket, cable length
approx. 3m (wall mounting)
dpvlink
8024

20,10 EUR

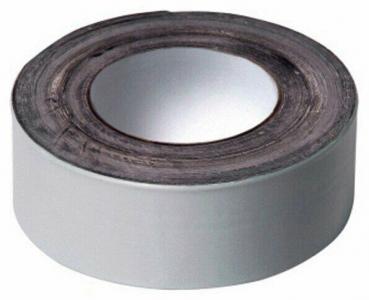

The image shows a roll of tape. The roll has a round core and is gray on the outside, with a smooth, visible surface.
Aluminium tape, self-adhesive
Aluminium tape, 50 mm x 50 m,
self-adhesive
dpvlink
3213

22,00 EUR
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

ECOSTAT-DF INTERLOCKING SYSTEM 6.0

  • two-layer compound flooring in tiles (interlocking system) with dovetail connection
  • volume conductive
  • abrasion-resistant
  • conductive back
  • suitable for swivel castors
  • suitable for forklift traffic
  • multi-purpose
  • self-lying (not adhered)
  • easy processing with wood tools
  • accessible while laying, thus less downtimes
  • color: grey
  • material thickness: 6 mm

In compliance with ESD standard DIN EN 61340


Article image
Article description
Width
Length
Thickness
Price
Compare
1330.PF.06 - ECOSTAT-DF INTERLOCKING SYSTEM 6.0
1330.PF.06
ECOSTAT-DF INTERLOCKING SYSTEM 6.0
635 mm
635 mm
6 mm
99,90 EUR
1330.PF.ESD - ECOSTAT-DF ESD LOGO
1330.PF.ESD
ECOSTAT-DF ESD LOGO
635 mm
635 mm
6 mm
50,90 EUR
1330.PF.06.R - ECOSTAT-DF Ramp element
1330.PF.06.R
ECOSTAT-DF Ramp element
635 mm
310 mm
6 mm
40,10 EUR
1330.PF.06.RES - ECOSTAT-DF Corner ramp element
1330.PF.06.RES
ECOSTAT-DF Corner ramp element
310 mm
310 mm
6 mm
41,15 EUR
Show Compare List (0)

This product is compatible with (for example):

The image shows a yellow, square plastic canister with a blue screw cap. On it is a label featuring a mop and the inscription "ESD-Floor-Cleaner professional".
TOP
EPAclean® ESD Floor Cleaner Professional...
ESD Floor Cleaner professional "EPAclean"
10 liter canister, cleaning concentrate for
dissipative floors
(concentrate / dilution ratio 1:200)
dpvlink
22452

64,25 EUR

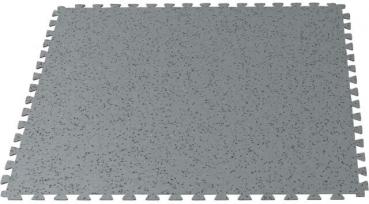

The image shows a square, gray mat with a textured surface and jagged edges, which are designed for easy connection with other mats. It is durable and versatile.
ECOSTAT-DF INTERLOCKING SYSTEM 6.0
ECOSTAT-DF PUZZLE
Tiles 635 x 635 x 6 mm
Color: grey
(DIN EN 61340-5-1)
dpvlink
23230

99,90 EUR

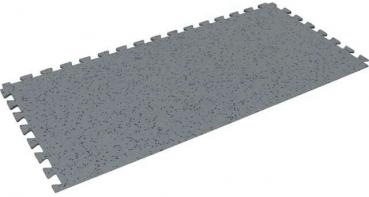

The image shows a large, gray mat with a textured surface. It has interlocking edges that allow the assembly of multiple mats. It appears sturdy.
ECOSTAT-DF Ramp element
ECOSTAT-DF Ramp element 635 x 310 mm
(DIN EN 61340-5-1)
dpvlink
23230

40,10 EUR

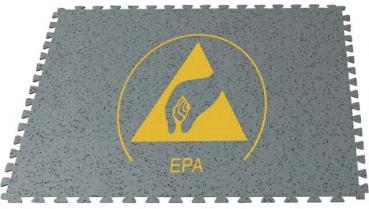

The image shows a gray mat with a yellow symbol. In the center, there is a triangle depicting a hand and a foot. Below it, "EPA" is written in uppercase letters.
