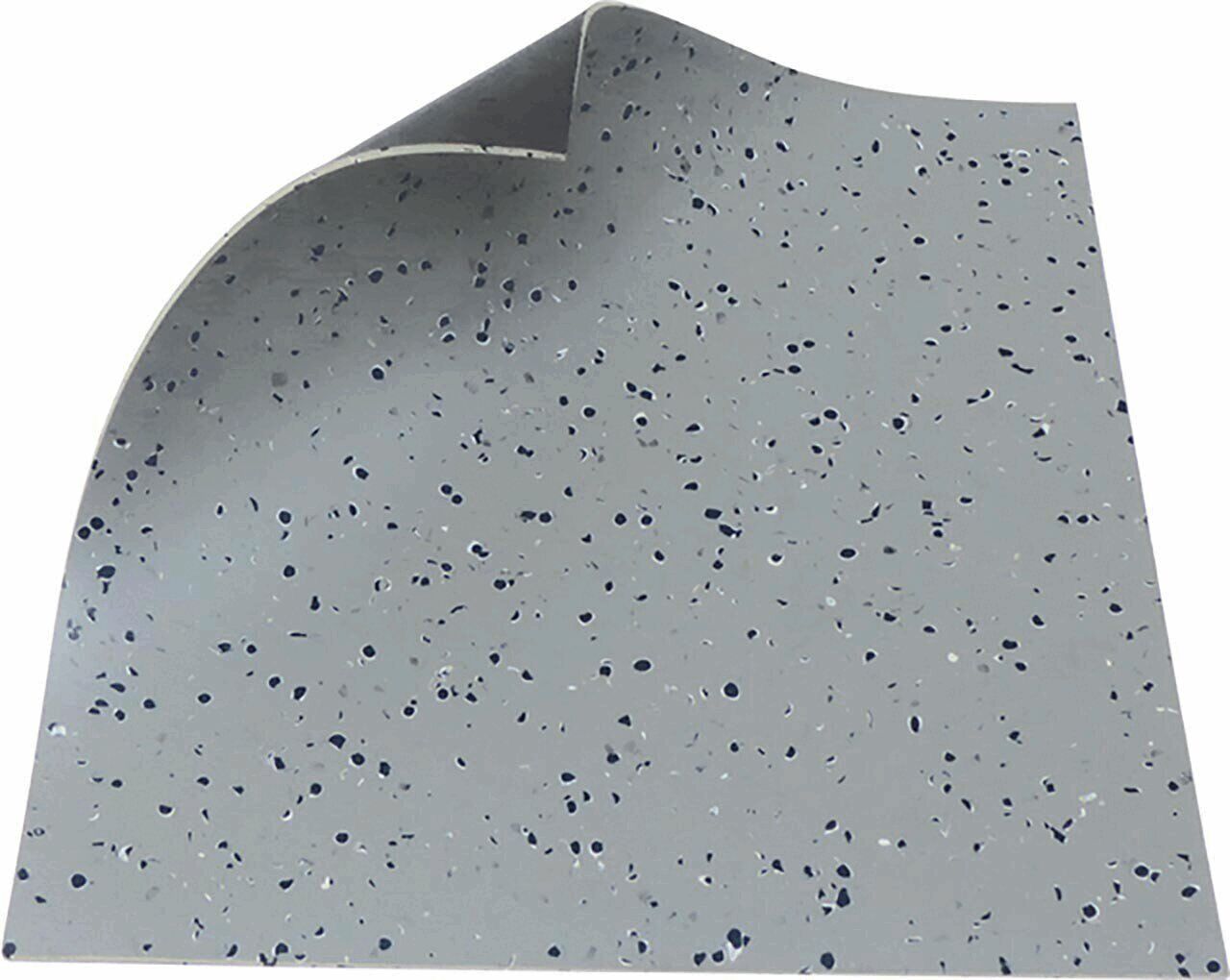

The image displays a piece of light gray flooring with colorful, irregular dots in blue and white. One corner is flipped up, revealing the structure.
Ecostat PR - 2.0 PVC floor mat 1500 x 2000 mm
(Product No.: 1250.7004.L)
The image displays a piece of light gray flooring with colorful, irregular dots in blue and white. One corner is flipped up, revealing the structure.
Notice / Inquire

Ecostat PR - 2.0 PVC floor mat 1500 x 2000 mm

Ecostat PR - 2.0 PVC floor mat 1500 x 2000 mm

dpvlink:
23291
Color:
grey
Width :
2000 mm
Length :
1500 mm
Thickness :
2 mm
Properties:
Further product information

at short notice at short notice
177,25 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Ecostat PR - 2.0 PVC floor mat 1500 x 2000 mm

The Ecostat PR - 2.0 PVC floor mat measures 1500 x 2000 mm and features a material thickness of 2 mm. Made from high-quality PVC, it meets the ESD standard DIN EN 61340-5-1, making it ideal for areas where electrostatic discharges must be avoided. The mat is volume conductive, abrasion-resistant, and permanently elastic, which makes it particularly durable. It is also suitable for chair casters, depending on the condition of the substrate, and has a conductive backing.
The surface in medium gray is not only visually appealing but also self-laying, which allows for easy installation without the need for adhesive. The mat is equipped with two snap connectors with a 10 mm diameter and rounded corners, which increases safety. Note that a grounding cord or connecting lead must be ordered separately.
The technical specifications include a point-to-point resistance of 10^6 to 10^8 Ω, a fire class of Bfl – s1, and a Shore hardness of 90 Shore A, confirming the robustness and quality of the product.
Color
Color
grey
Width
Width
2000 mm
Length
Length
1500 mm
Thickness
Thickness
2 mm
Fire class
Fire class
Bfl – s1
Point-to-point resistance Rp-p
Point-to-point resistance Rp-p
106 - 108 Ω
Material
Material
PVC
Shore hardness
Shore hardness
90 Shore A
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a roll of tape in a copper-colored shine. The roll has an inner diameter made of cardboard and is smooth. On the inside, various geometric patterns are depicted.
Copper tape, self-adhesive
Copper tape, 19 mm x 50 m,
self-adhesive (++adhesive conductive++)
dpvlink
3213

44,50 EUR

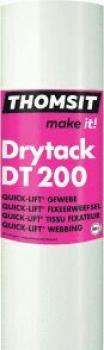

The image shows a roll with adhesive-coated material. The top part features a black inscription "THOMSIT make it!". Below it, "Drytack DT200" is written in pink.
Quick-lift fabric, self-adhesive on both...
Quick-lift fabric DT 200 Drytack++Thomsit++
self-adhesive 0.8 x 25 m = 20 m²


DT200: for re-applicable dry adhesive of textile, PVC and rubber coverings
dpvlink
13299

236,95 EUR

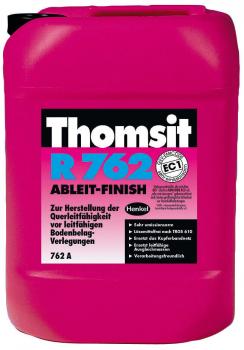

The image shows a pink plastic canister with a black label. It reads "Thomsit R 762 ABLEIT-FINISH", including instructions for use on flooring.
Conductive base coat
Conductive base coat R762 ++Thomsit++
Priming coat for establishing a transverse
conductive layer
1 container = 10 kg
dpvlink
10202

20,95 EUR
The image shows a yellow device on a wall. It features a warning symbol and is connected to a green cable. Below it, a copper strip runs along the ground.
Grounding connection set for floor coverings...
Grounding connection set for floor coverings
with test point / 4 mm socket, cable length
approx. 3m (wall mounting)
dpvlink
8024

20,10 EUR
The image shows a roll of tape. The roll has a round core and is gray on the outside, with a smooth, visible surface.
Aluminium tape, self-adhesive
Aluminium tape, 50 mm x 50 m,
self-adhesive
dpvlink
3213

22,00 EUR

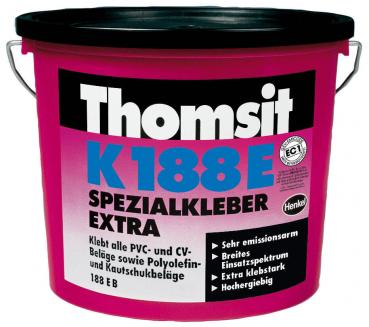

The image shows a bucket with a pink-purple hue. On the front, the product name "Thomsit K 188E Special Adhesive Extra" is displayed in large, white letters. Below that, there are instructions for use and properties of the adhesive.
Special adhesive K 188 E, not conductive
K188E - special glue extra ++Thomsit++
for double sided conductive PVC and
Rubber flooring (with conductive back)
1 Container = 13 kg
dpvlink
10265

9,10 EUR
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 151
Complete Catalog 2023 - 2024

Product Family

Ecostat PR - 2.0 PVC floor mat

  • one-layer PVC
  • material thickness: 2 mm
  • volume dissipative
  • abrasion-resistant
  • permanently elastic
  • suitable for swivel castors
    (depending on the quality of the substrate)
  • multi-purpose
  • conductive back
  • self-lying (not adhered)
  • color: grey

In compliance with ESD standard DIN EN 61340-5-1

Floor mats
complete with 2 snaps 10 mm and rounded corners


Article image
Article description
Color
Width
Length
Thickness
Price
Compare
1250.7004.L - Ecostat PR - 2.0 PVC floor mat 1500 x 2000 mm
1250.7004.L
Ecostat PR - 2.0 PVC floor mat 1500 x 2000 mm
grey
2000 mm
1500 mm
2 mm
177,25 EUR
1250.7004.S - Ecostat PR - 2.0 PVC floor mat 1200 x 2000 mm
1250.7004.S
Ecostat PR - 2.0 PVC floor mat 1200 x 2000 mm
grey
2000 mm
1200 mm
2 mm
143,15 EUR
Show Compare List (0)

This product is compatible with (for example):

The image shows a roll of tape in a copper-colored shine. The roll has an inner diameter made of cardboard and is smooth. On the inside, various geometric patterns are depicted.
Copper tape, self-adhesive
Copper tape, 19 mm x 50 m,
self-adhesive (++adhesive conductive++)
dpvlink
3213

44,50 EUR
The image displays a piece of light gray flooring with small, dark spots. One corner is slightly bent, revealing the texture of the material.
Ecostat PR - 2.0 PVC - flooring rolls
Ecostat PR - 2.0 PVC - flooring
Rolls 2.0 m x 9 m = 18 m²
Color: medium grey, thickness: 2 mm
(DIN EN 61340-5-1)
dpvlink
24970

51,45 EUR
The image shows a yellow, square plastic canister with a blue screw cap. On it is a label featuring a mop and the inscription "ESD-Floor-Cleaner professional".
TOP
EPAclean® ESD Floor Cleaner Professional...
ESD Floor Cleaner professional "EPAclean"
10 liter canister, cleaning concentrate for
dissipative floors
(concentrate / dilution ratio 1:200)
dpvlink
22452

64,25 EUR
The image shows a bucket with a pink-purple hue. On the front, the product name "Thomsit K 188E Special Adhesive Extra" is displayed in large, white letters. Below that, there are instructions for use and properties of the adhesive.
Special adhesive K 188 E, not conductive
K188E - special glue extra ++Thomsit++
for double sided conductive PVC and
Rubber flooring (with conductive back)
1 Container = 13 kg
dpvlink
10265

9,10 EUR
The image shows a roll of tape. The roll has a round core and is gray on the outside, with a smooth, visible surface.
Aluminium tape, self-adhesive
Aluminium tape, 50 mm x 50 m,
self-adhesive
dpvlink
3213

22,00 EUR
The image shows a yellow device on a wall. It features a warning symbol and is connected to a green cable. Below it, a copper strip runs along the ground.
Grounding connection set for floor coverings...
Grounding connection set for floor coverings
with test point / 4 mm socket, cable length
approx. 3m (wall mounting)
dpvlink
8024

20,10 EUR

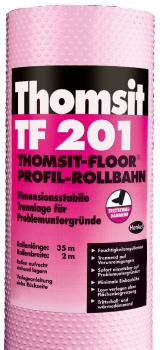

The image shows a pink roll with a non-slip surface. On it, in large letters, is "Thomsit TF 201". It is a profiled separation layer for floors that is stable and sound-insulating.
Separation layer TF 201
TF 201 Thomsit floor profile runway
Separation layer for problematic grounds
Material thickness: 1.3 mm
Roll 2.0 m x 35 m = 70 m²
dpvlink
10206

1.525,90 EUR
The image shows a pink plastic canister with a black label. It reads "Thomsit R 762 ABLEIT-FINISH", including instructions for use on flooring.
Conductive base coat
Conductive base coat R762 ++Thomsit++
Priming coat for establishing a transverse
conductive layer
1 container = 10 kg
dpvlink
10202

20,95 EUR
The image shows a roll with adhesive-coated material. The top part features a black inscription "THOMSIT make it!". Below it, "Drytack DT200" is written in pink.
Quick-lift fabric, self-adhesive on both...
Quick-lift fabric DT 200 Drytack++Thomsit++
self-adhesive 0.8 x 25 m = 20 m²


DT200: for re-applicable dry adhesive of textile, PVC and rubber coverings
dpvlink
13299

236,95 EUR
The image shows a roll of yellow tape. The label displays the words "THOMSIT make it! Drytack DT 100" in pink and black, with instructions on how to use the tape.
Quick-lift fabric, self-adhesive on both...
Quick Lift Fabric DT 100 Drytack++Thomsit++
self-adhesive 0.8 x 25 m = 20 m²


DT100 : For residue-free reuptake bonding of textile, PVC and rubber coverings
dpvlink
13299

182,60 EUR

This product is similar to:

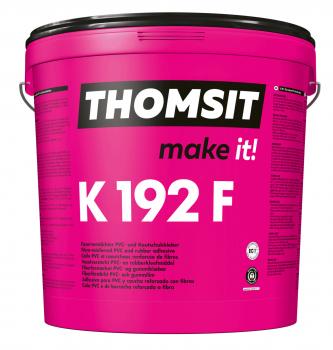

In the picture is a pink paint bucket with the imprint "THOMSIT make it! K 192 F". The bucket has a black lid, and the lettering is in white and black.
