Table covering, cuttings
(Product No.: 1402.66[..].Z)
Mobile Preview: Image
Mobile Preview: Image

Table covering, cuttings

Table covering, cuttings

dpvlink:
2757
Width :
Cutting mm
Properties:
Further product information

Delivery time! Delivery time!

Compare Compare
Notice / Inquire
Product Info

Table covering, cuttings

The offered table covering is designed for loose laying as well as for adhesive bonding, providing an effective solution for work environments that have high requirements for electrostatic discharge. This product is certified according to ESD standard DIN EN 61340-5-1 and prevents corrosion on electronic contacts. The table covering is solder and heat resistant up to 60°C and features a dissipative, wear-resistant top layer and a high-resistance bottom layer.
The two-layer construction consists of a highly wear-resistant, permanently elastic rubber material that is abrasion-resistant and dimensionally stable. Additionally, the covering is easy to clean and environmentally friendly, as it is free from PVC, plasticizers, halogens, and heavy metals. The material thickness is 2 mm. The covering is available in the colors Beige, Platinum Gray, Spanish Green, Light Blue, and Royal Blue. The width is based on individual cutting, and the point-to-point resistance is at 10^7 Ω. Fixation can be done with double-sided adhesive tape or Quick-Lift fabric tape if needed.
Width
Width
Cutting mm
Point-to-point resistance Rp-p
Point-to-point resistance Rp-p
107 Ω
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a blue mat with a gray pillow, a yellow warning sign, and a connecting cable. A microphone is integrated into the cable and connected.
Accessory set 1 for table coverings
- 1 x 2850.10020.EPA Warning sign PVC 100x50 mm
- 1 x 2050.750.3 Wrist strap DK 3
- 1 x 2101.752.3.10 Grounding cable DK 3/10
- 1 x 2200.101 Grounding module
dpvlink
24891

20,60 EUR
The image shows a blue mat with a gray pillow, a yellow warning sign, and a connecting cable. A microphone is integrated into the cable and connected.
Accessory set 1 for table coverings (Switzerland)...
- 1 x Art. 2850.10050.EPA Sign PVC 100x50 mm
- 1 x Art. 2050.750.3 Wrist strap DK 3
- 1 x Art. 2101.752.3.10 Grounding cable DK 3/10
- 1 x Art. 2200.101.CH grounding module
- 1 x Art. 2850.10050.EPA Warning Sign PVC 100x50 mm - M2-4
- 1 x Art. 2050.750.3 Wrist Strap DK 3 - M3-45
- 1 x Art. 2101.752.3.10 Ground cable DK 3/10 - M3-36
- 1 x Art. 2200.101.CH Grounding Module - M3-47
dpvlink
24891

21,60 EUR
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

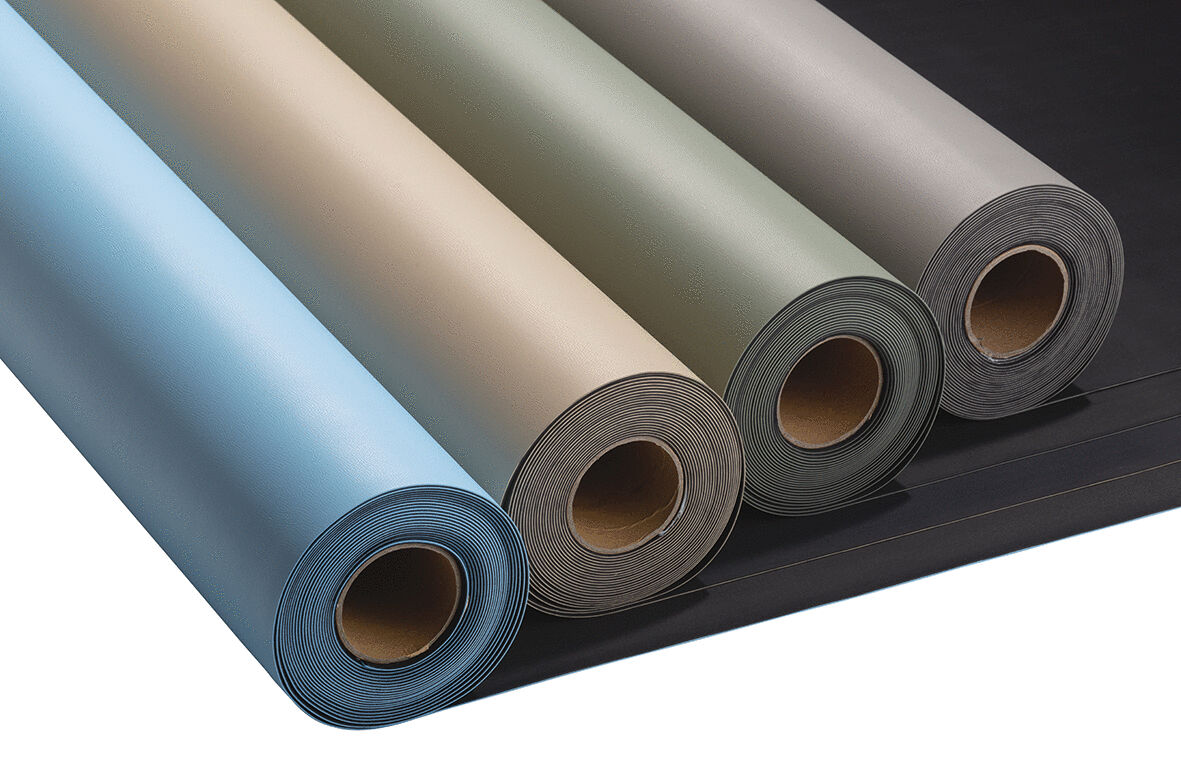

Product Family

Table covering, rolls

  • suitable for loose laying as well as for bonding
  • causes no corrosion on electronic contacts
  • resistant to solder and heat up to 60°C
  • dissipative, wear-resistant wear layer, high-impedance bottom layer
  • easy to clean
  • two-layer structure
  • highly wear-resistant rubber material, permanently elastic
  • abrasion-resistant
  • dimensional stability
  • environmentally compatible
  • free from PVC, plasticizers, halogens and heavy metals
  • Material thickness: 2 mm
  • available Colors: beige, grey, green, blue, royalblue

(Fixation with double-sided adhesive tape or Quick-Lift fabric tape possible)

In compliance with ESD standard DIN EN 61340-5-1


Article image
Article description
Color
Width
Roll length [m]
Thickness
Price
Compare
1402.662.R.061 - Table covering, rolls beige 0.61 x 10 m
1402.662.R.061
Table covering, rolls beige 0.61 x 10 m
beige
610 mm
10 m
2 mm
49,85 EUR
1402.662.R.100 - Table covering, rolls beige 1.00 x 10 m
1402.662.R.100
Table covering, rolls beige 1.00 x 10 m
beige
1000 mm
10 m
2 mm
49,85 EUR
1402.662.R - Table covering, rolls beige 1.22 x 10 m
1402.662.R
Table covering, rolls beige 1.22 x 10 m
beige
1220 mm
10 m
2 mm
49,85 EUR
1402.663.R.061 - Table covering, rolls grey 0.61 x 10 m
1402.663.R.061
Table covering, rolls grey 0.61 x 10 m
grey
610 mm
10 m
2 mm
49,85 EUR
1402.663.R.100 - Table covering, rolls grey 1.00 x 10 m
1402.663.R.100
Table covering, rolls grey 1.00 x 10 m
grey
1000 mm
10 m
2 mm
49,85 EUR
1402.663.R - Table covering, rolls grey 1.22 x 10 m
1402.663.R
Table covering, rolls grey 1.22 x 10 m
grey
1220 mm
10 m
2 mm
49,85 EUR
1402.664.R - Table covering, rolls green 1.22 x 10 m
1402.664.R
Table covering, rolls green 1.22 x 10 m
green
1220 mm
10 m
2 mm
49,85 EUR
1402.665.R.061 - Table covering, rolls light blue 0.61 x 10 m
1402.665.R.061
Table covering, rolls light blue 0.61 x 10 m
light blue
610 mm
10 m
2 mm
49,85 EUR
1402.665.R.100 - Table covering, rolls light blue 1.00 x 10 m
1402.665.R.100
Table covering, rolls light blue 1.00 x 10 m
light blue
1000 mm
10 m
2 mm
49,85 EUR
1402.665.R - Table covering, rolls light blue 1.22 x 10 m
1402.665.R
Table covering, rolls light blue 1.22 x 10 m
light blue
1220 mm
10 m
2 mm
49,85 EUR
1402.666.R.061 - Table covering, rolls royal blue 0.61 x 10 m
1402.666.R.061
Table covering, rolls royal blue 0.61 x 10 m
royal blue
610 mm
10 m
2 mm
49,85 EUR
1402.666.R.100 - Table covering, rolls royal blue 1.00 x 10 m
1402.666.R.100
Table covering, rolls royal blue 1.00 x 10 m
royal blue
1000 mm
10 m
2 mm
49,85 EUR
1402.66[..].Z - Table covering, cuttings
1402.66[..].Z
Table covering, cuttings

Cutting mm


-
