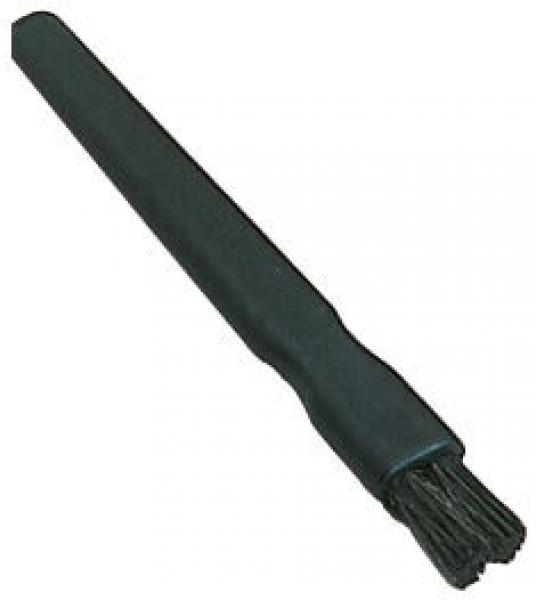

The picture shows a long, narrow object with a black, smooth handle. At one end, there are many fine, stringy bristles that stick out loosely.
ESD flat brush
(Product No.: 6100.103)
The picture shows a long, narrow object with a black, smooth handle. At one end, there are many fine, stringy bristles that stick out loosely.
Notice / Inquire

ESD flat brush

ESD flat brush

dpvlink:
2007
Hardness:
hard
Width :
12.5 mm
Bristles :
natural bristles / conductive fibers
Properties:
Further product information

available available
8,35 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

ESD flat brush

The ESD flat brush -hard- with a width of 12.5 mm is specifically designed for cleaning ESD-sensitive flat assemblies. It features an electrostatically conductive plastic handle and embedded natural bristles mixed with conductive fibers to ensure safe dissipation of electrostatic charges. The bristles of this brush are black and are characterized by their hardness, making them particularly effective for stubborn dirt. The resistance to ground ranges between 10^6 and 10^7 Ohm, confirming compliance with the ESD standard DIN EN 61340-5-1. This brush is a reliable choice for technical professionals who need to perform precise and safe cleaning tasks on sensitive electronic components.
Hardness
Hardness
hard
Width
Width
12.5 mm
Bristles
Bristles
natural bristles / conductive fibers
Bristle color
Bristle color
black
Bleeder resistance
Bleeder resistance
106 - 107 Ω
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 171
Complete Catalog 2023 - 2024

Product Family

ESD flat brushes

  • For cleaning work on ESD-sensitive flat assemblies
  • Electrostatically volume-conductive plastic handle
  • Integrated natural bristles (mixed with conductive fibers)

In compliance with ESD standard DIN EN 61340-5-1


Article image
Article description
Hardness
Width
Bristles
Price
Compare
6100.103 - ESD flat brush
6100.103
ESD flat brush
hard
12.5 mm
natural bristles / conductive fibers
8,35 EUR
6100.104 - ESD flat brush
6100.104
ESD flat brush
hard
19 mm
natural bristles / conductive fibers
9,00 EUR
6100.105 - ESD flat brush
6100.105
ESD flat brush
hard
25 mm
natural bristles / conductive fibers
9,10 EUR
6100.106 - ESD flat brush
6100.106
ESD flat brush
hard
38 mm
natural bristles / conductive fibers
10,30 EUR
6100.107 - ESD flat brush
6100.107
ESD flat brush
hard
50x6 mm
natural bristles / conductive fibers
10,80 EUR
6100.1001 - ESD flat brush
6100.1001
ESD flat brush
soft

natural bristles / conductive fibers
40,65 EUR
6100.1002 - ESD flat brush
6100.1002
ESD flat brush
soft
100 mm
natural bristles / conductive fibers
41,40 EUR
