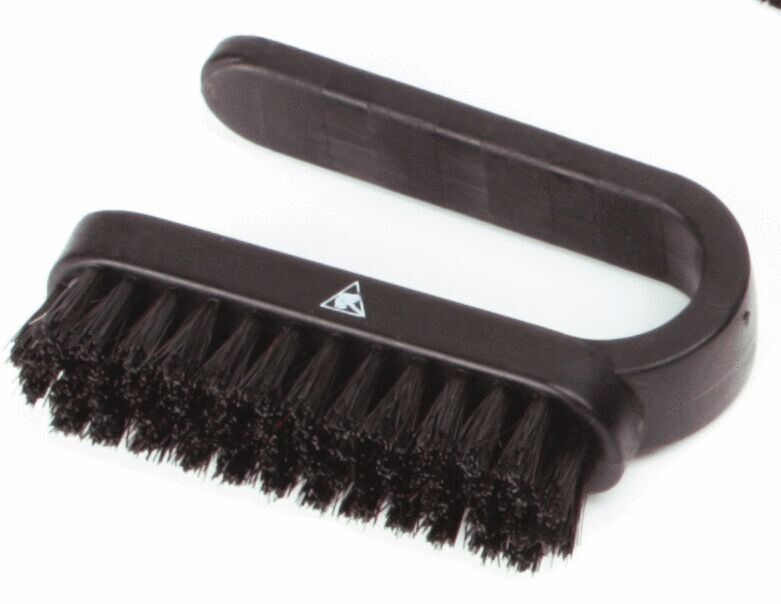

The image shows a black brush with a curved handle. The bristles are short and tightly arranged, ideal for scrubbing or cleaning surfaces.
ESD hard brush 70 x 25 mm
(Product No.: 6105.5323)
The image shows a black brush with a curved handle. The bristles are short and tightly arranged, ideal for scrubbing or cleaning surfaces.
Notice

ESD hard brush 70 x 25 mm

ESD hard brush 70 x 25 mm

dpvlink:
2025
Hardness:
hard
Width :
70 mm
Brush length:
15 mm
Handle length:
85 mm
Bristles :
polyester / conductive fibers
Properties:
Further product information

available available
22,80 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

ESD hard brush 70 x 25 mm

The ESD hard brush with dimensions of 70 x 25 mm is specifically designed for the safe cleaning of populated circuit boards. It features an 85 mm long handle made of conductive plastic and 15 mm long bristles made from a combination of polyester and conductive fibers to prevent electrostatic discharge. This brush meets the ESD standard DIN EN 61340-5-1, making it ideal for use in sensitive electronic environments. The bristle hardness is classified as hard, which allows for effective cleaning without damaging the components. The surface resistance of the brush is between 10^4 and 10^9 ohms, and the bristle color is black, which additionally aids in visual inspection of cleanliness. Ideal for technical applications where precision and protection against electrostatic discharge are required.
Hardness
Hardness
hard
Width
Width
70 mm
Brush length
Brush length
15 mm
Handle length
Handle length
85 mm
Bristles
Bristles
polyester / conductive fibers
Bristle color
Bristle color
black
Depth
Depth
25 mm
Surface resistance Rs
Surface resistance Rs
104 - 109 Ω
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 173
Complete Catalog 2023 - 2024

Product Family

ESD Brushes

  • For risk-free cleaning of assembled printed circuit boards
  • Conductive plastic handles
  • Bristles are made of a mixture of conductive fiber and polyester

In compliance with the ESD standard DIN EN 61340-5-1


Article image
Article description
Hardness
Width
Brush length
Handle length
Bristles
Price
Compare
6105.0707 - ESD brush 7 mm
6105.0707
ESD brush 7 mm
hard
12.5 mm
15 mm
62 mm
polyester / conductive fibers
4,35 EUR
6105.1206 - ESD flat brush 12 x 6 mm
6105.1206
ESD flat brush 12 x 6 mm
hard
12 mm
15 mm
100 mm
polyester / conductive fibers
6,65 EUR
6105.1806 - ESD flat brush 18 x 6 mm
6105.1806
ESD flat brush 18 x 6 mm
hard
18 mm
15 mm
105 mm
polyester / conductive fibers
7,80 EUR
6105.2506 - ESD flat brush 25 x 6 mm
6105.2506
ESD flat brush 25 x 6 mm
hard
25 mm
20 mm
110 mm
polyester / conductive fibers
8,80 EUR
6105.3011 - ESD flat brush 30 x 11 mm
6105.3011
ESD flat brush 30 x 11 mm
hard
30 mm
20 mm
140 mm
polyester / conductive fibers
13,80 EUR
6105.5006 - ESD flat brush 50 x 6 mm
6105.5006
ESD flat brush 50 x 6 mm
hard
50 mm
18 mm
133 mm
polyester / conductive fibers
10,75 EUR
6105.5011 - ESD flat brush 50 x 11 mm
6105.5011
ESD flat brush 50 x 11 mm
hard
50 mm
20 mm
144 mm
polyester / conductive fibers
13,00 EUR
6105.5323 - ESD hard brush 70 x 25 mm
6105.5323
ESD hard brush 70 x 25 mm
hard
70 mm
15 mm
85 mm
polyester / conductive fibers
22,80 EUR
6105.7011 - ESD flat brush 70 x 11 mm
6105.7011
ESD flat brush 70 x 11 mm
hard
70 mm
20 mm
148 mm
polyester / conductive fibers
20,30 EUR
6105.3706 - ESD flat brush 37 x 6 mm
6105.3706
ESD flat brush 37 x 6 mm
hard
37 mm
18 mm
123 mm
polyester / conductive fibers
7,15 EUR
