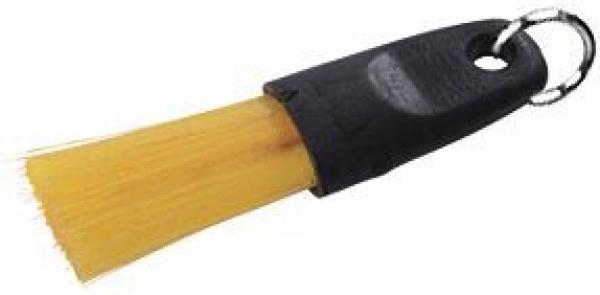

The image displays a small brush with a yellow brush head and a black handle. Attached to the end of the handle is a ring, likely for hanging.
ESD hard brush as key ring
(Product No.: 6104.Y.1200)
The image displays a small brush with a yellow brush head and a black handle. Attached to the end of the handle is a ring, likely for hanging.
Notice / Inquire

ESD hard brush as key ring

ESD hard brush as key ring

dpvlink:
17707
Hardness:
hard
Width :
17 mm
Properties:
Further product information

Delivery time! Delivery time!
6,70 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

ESD hard brush as key ring

The ESD hard brush as a keychain is an essential tool for preventing static charges when cleaning ESD-sensitive flat assemblies. With a width of 17 mm and a bristle length of 29 mm, this product is specifically designed for precise cleaning tasks. The brush features yellow nylon bristles with a diameter of 0.4 mm, which are incorporated into a volume-conductive plastic handle. This construction ensures permanent electrostatic discharge capability according to the standard DIN EN 61340-5-1, with a discharge resistance between 10^9 and 10^10 ohms. This product combines functionality with practical handling, as it also serves as a keychain, making it easily transportable and always ready to use. Ideal for technicians in electronics manufacturing and maintenance who need a reliable solution to prevent electrostatic discharges.
Hardness
Hardness
hard
Width
Width
17 mm
Bristle color
Bristle color
yellow
Brush length
Brush length
29 mm
Bleeder resistance
Bleeder resistance
109 - 1010 Ω
Bristles
Bristles
nylon bristles
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 172
Complete Catalog 2023 - 2024

Product Family

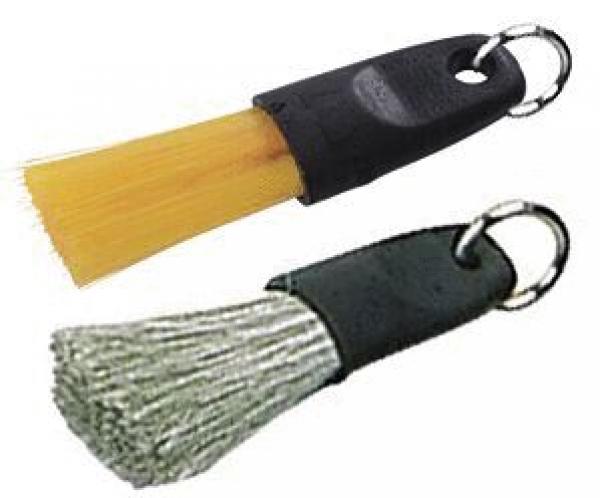

ESD brush as key ring

When using these conductive brushes, cleaning work does not cause static charges on ESD-sensitive flat assemblies.

  • Integrated, permanently dissipative nylon bristles
  • Volume-conductive plastic handle with ESD warning symbol
  • Bristle diameter 0.4 mm

In compliance with the ESD standard DIN EN 61340-5-1


Article image
Article description
Hardness
Width
Price
Compare
6104.Y.1200 - ESD hard brush as key ring
6104.Y.1200
ESD hard brush as key ring
hard
17 mm
6,70 EUR
6100.1200 - ESD soft brush as key ring
6100.1200
ESD soft brush as key ring
soft
25 mm
6,45 EUR
