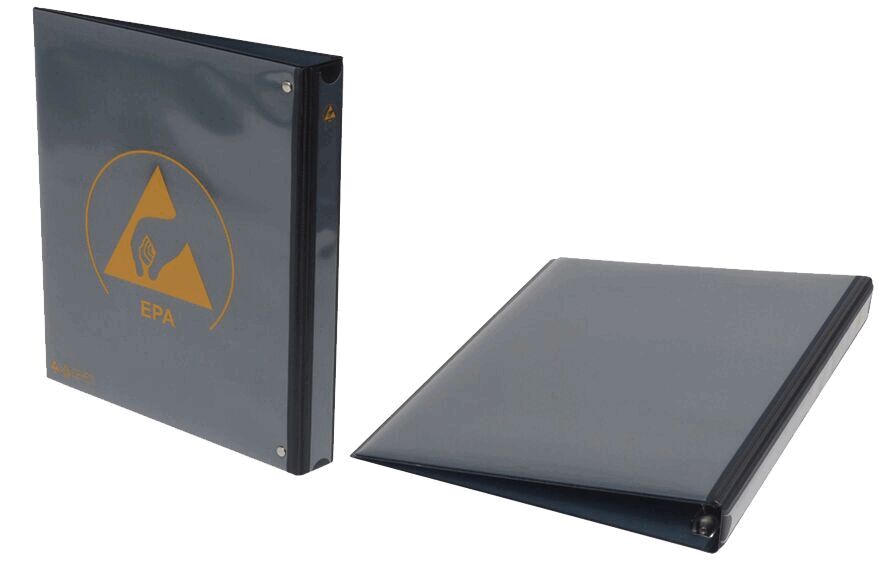

The image shows a black folder with an orange triangle symbol and the label "EBN". It is standing upright and partially open to reveal its interior.

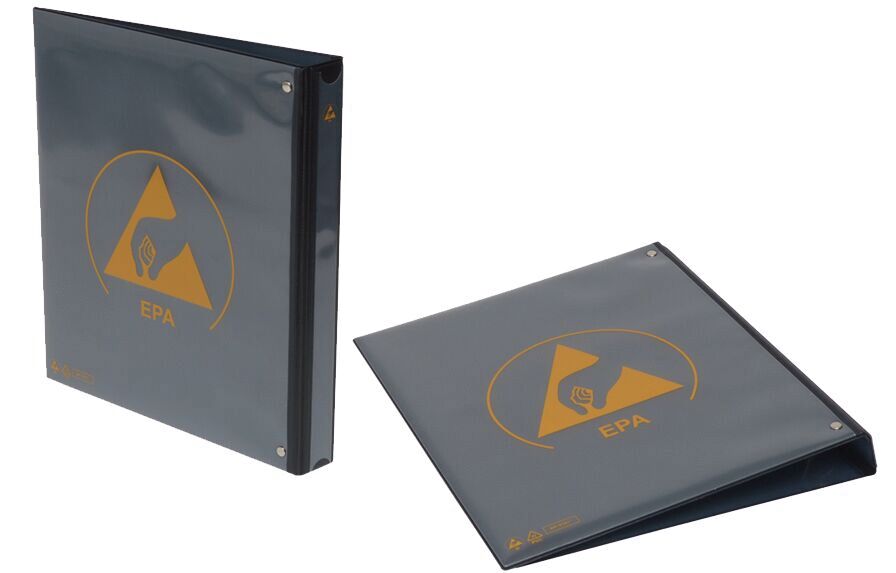

The image shows a black folder with a golden triangle and a symbol in the center. The folder is standing upright and lying next to it, with a smooth, shiny surface.
Preview: The image shows a black folder with an orange triangle symbol and the label "EBN". It is standing upright and partially open to reveal its interior.
Preview: The image shows a black folder with a golden triangle and a symbol in the center. The folder is standing upright and lying next to it, with a smooth, shiny surface.
Ring folder IDP-STAT® back width 30 mm, black
(Product No.: 5710.RB.B.30)
The image shows a black folder with an orange triangle symbol and the label "EBN". It is standing upright and partially open to reveal its interior.
The image shows a black folder with a golden triangle and a symbol in the center. The folder is standing upright and lying next to it, with a smooth, shiny surface.
Mobile Preview: The image shows a black folder with an orange triangle symbol and the label "EBN". It is standing upright and partially open to reveal its interior.
Mobile Preview: The image shows a black folder with a golden triangle and a symbol in the center. The folder is standing upright and lying next to it, with a smooth, shiny surface.
Notice / Inquire

Ring folder IDP-STAT® back width 30 mm, black

Ring folder IDP-STAT® back width 30 mm, black

dpvlink:
19521
DIN size:
DIN A4
Back width:
30 mm
Version:
4 rings
Color:
black
Properties:
Further product information

Delivery time! Delivery time!
12,61 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Ring folder IDP-STAT® back width 30 mm, black

The IDP-STAT® binder with a spine width of 30 mm and in the color black is specifically designed for requirements in ESD-sensitive environments. This product in DIN A4 format features four rings and is made from a permanently conductive, inherently dissipative polymer (IDP) that meets the standards of DIN EN 61340-5-1.
The dimensions of the cover are 315 mm in length and 265 mm in width. The surface resistance of the material ranges between 10^9 and 10^10 Ohm, ensuring reliable dissipation of electrostatic charges.
In addition, the binder is reinforced with a PVC soft film and coated both outside and inside with an electrostatically conductive IDP-STAT® film. The front side and the spine are shortened by about 5 mm at the top and are open, providing a practical slip pocket. The binder is marked with the ESD symbol to indicate its suitability for ESD-sensitive areas.
DIN size
DIN size
DIN A4
Back width
Back width
30 mm
Version
Version
4 rings
Color
Color
black
Length
Length
315 mm
Width
Width
265 mm
Surface resistance Rs
Surface resistance Rs
109 - 1010 Ω
Material
Material
IDP
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 178
Complete Catalog 2023 - 2024

Product Family

Ring folder IDP-STAT®

Permanently dissipative ring folder

  • PVC soft film with cardboard reinforcement
  • Inside and outside with electrostatically dissipative IDP-STAT® film
  • ESD symbol
  • Front cover and spine upper part approx. 5 mm shorter, open as pocket
  • Dimension of cover (H x L) approx. 315 x 265 mm
  • back width 45 or 30 mm
  • Color: black or yellow

In compliance with ESD standard DIN EN 61340-5-1


Article image
Article description
DIN size
Back width
Version
Color
Price
Compare
5710.RB.B - Ring folder IDP-STAT® back width 45 mm, black
5710.RB.B
Ring folder IDP-STAT® back width 45 mm, black
DIN A4
45 mm
4 rings
black
14,55 EUR
5710.RB.B.30 - Ring folder IDP-STAT® back width 30 mm, black
5710.RB.B.30
Ring folder IDP-STAT® back width 30 mm, black
DIN A4
30 mm
4 rings
black
12,61 EUR
5710.RB.Y - Ring folder IDP-STAT® back width 45 mm, yellow
5710.RB.Y
Ring folder IDP-STAT® back width 45 mm, yellow
DIN A4
45 mm
4 rings
yellow
14,55 EUR
