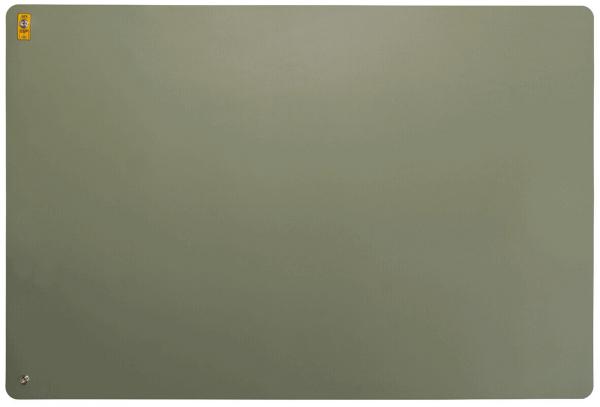

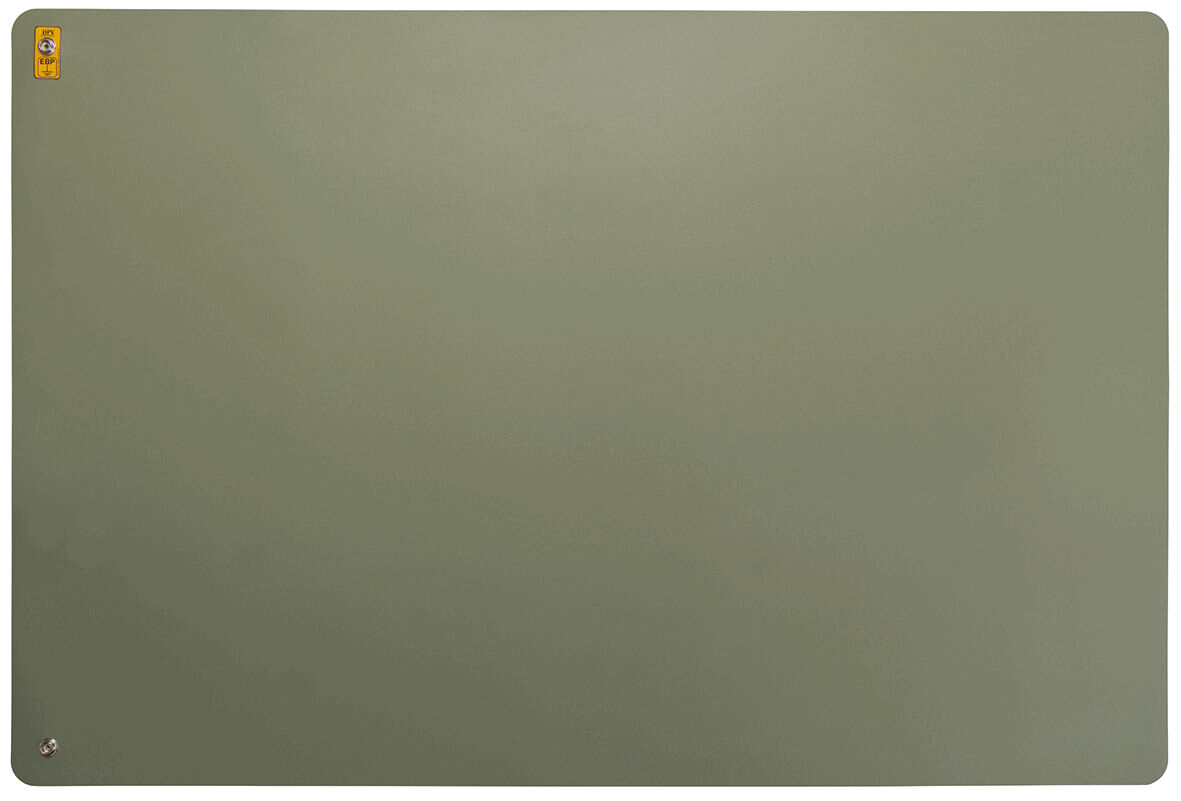

The image shows a rectangular area in matte olive green. The surface appears smooth and solid-colored, without any discernible patterns or textures. A small sticker is located in the upper left corner.
The image shows a green, padded surface with rounded corners. On the surface, there is a yellow label with the inscription "DPV" and "EBP" along with a silver turning knob.
Preview: The image shows a rectangular area in matte olive green. The surface appears smooth and solid-colored, without any discernible patterns or textures. A small sticker is located in the upper left corner.
Preview: The image shows a green, padded surface with rounded corners. On the surface, there is a yellow label with the inscription "DPV" and "EBP" along with a silver turning knob.
Table mats 600 x 900 mm, green
(Product No.: 1402.664.S)
The image shows a rectangular area in matte olive green. The surface appears smooth and solid-colored, without any discernible patterns or textures. A small sticker is located in the upper left corner.
The image shows a green, padded surface with rounded corners. On the surface, there is a yellow label with the inscription "DPV" and "EBP" along with a silver turning knob.
Mobile Preview: The image shows a rectangular area in matte olive green. The surface appears smooth and solid-colored, without any discernible patterns or textures. A small sticker is located in the upper left corner.
Mobile Preview: The image shows a green, padded surface with rounded corners. On the surface, there is a yellow label with the inscription "DPV" and "EBP" along with a silver turning knob.
Notice / Inquire

Table mats 600 x 900 mm, green

dpvlink:
2663
Color:
green
Width :
600 mm
Length :
900 mm
Thickness :
2 mm
Properties:
Further product information
Table Covering Cutting
Configure now


chevron-down
available available
34,95 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Table mats 600 x 900 mm, green

The ESD table mat in fern green with dimensions of 600 x 900 mm and a thickness of 2 mm is made from highly wear-resistant synthetic rubber, which is permanently elastic and abrasion-resistant. This mat can be laid loosely or glued down and is ideal for environments with electronic components, as it does not cause corrosion on electronic contacts. It is resistant to soldering tin and heat up to 60°C and features a dissipative, wear-resistant top layer and a high-resistance bottom layer.
The mat is easy to clean and environmentally friendly, free from PVC, plasticizers, halogens, and heavy metals. The two-layer construction ensures dimensional stability and durability. The delivery includes two 10 mm snap-on connections on the short side and rounded corners. Additional connections are available upon request. Optionally, the mat can be secured with double-sided adhesive tape or Quick-Lift fabric tape. The mat meets the ESD standard DIN EN 61340-5-1, highlighting its suitability for ESD-sensitive areas.
Color
Color
green
Width
Width
600 mm
Length
Length
900 mm
Thickness
Thickness
2 mm
Material
Material
synthetic rubber
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a blue mat with a gray pillow, a yellow warning sign, and a connecting cable. A microphone is integrated into the cable and connected.
Accessory set 1 for table coverings
- 1 x 2850.10020.EPA Warning sign PVC 100x50 mm

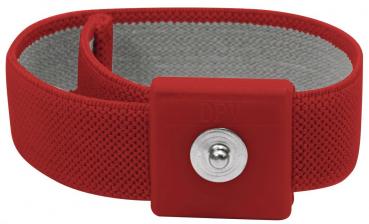

- 1 x 2050.750.3 Wrist strap DK 3
- 1 x 2101.752.3.10 Grounding cable DK 3/10
- 1 x 2200.101 Grounding module
dpvlink
24891

20,60 EUR
Show product
The image shows a blue mat with a gray pillow, a yellow warning sign, and a connecting cable. A microphone is integrated into the cable and connected.
Accessory set 1 for table coverings (Switzerland)...
- 1 x Art. 2850.10050.EPA Sign PVC 100x50 mm
- 1 x Art. 2050.750.3 Wrist strap DK 3
- 1 x Art. 2101.752.3.10 Grounding cable DK 3/10
- 1 x Art. 2200.101.CH grounding module
- 1 x Art. 2850.10050.EPA Warning Sign PVC 100x50 mm - M2-4
- 1 x Art. 2050.750.3 Wrist Strap DK 3 - M3-45
- 1 x Art. 2101.752.3.10 Ground cable DK 3/10 - M3-36
- 1 x Art. 2200.101.CH Grounding Module - M3-47
dpvlink
24891

21,60 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 147
Complete Catalog 2023 - 2024
Configurators:
Table Covering Cutting

Product Family

Table mats

  • suitable for loose laying as well as for bonding
  • causes no corrosion on electronic contacts
  • resistant to solder and heat up to 60°C
  • dissipative, wear-resistant wear layer, high-impedance bottom layer
  • easy to clean
  • two-layer structure
  • highly wear-resistant rubber material, permanently elastic
  • abrasion-resistant
  • dimensional stability
  • environmentally friendly
  • free from PVC, plasticizers, halogens and heavy metals
  • Material thickness: 2 mm

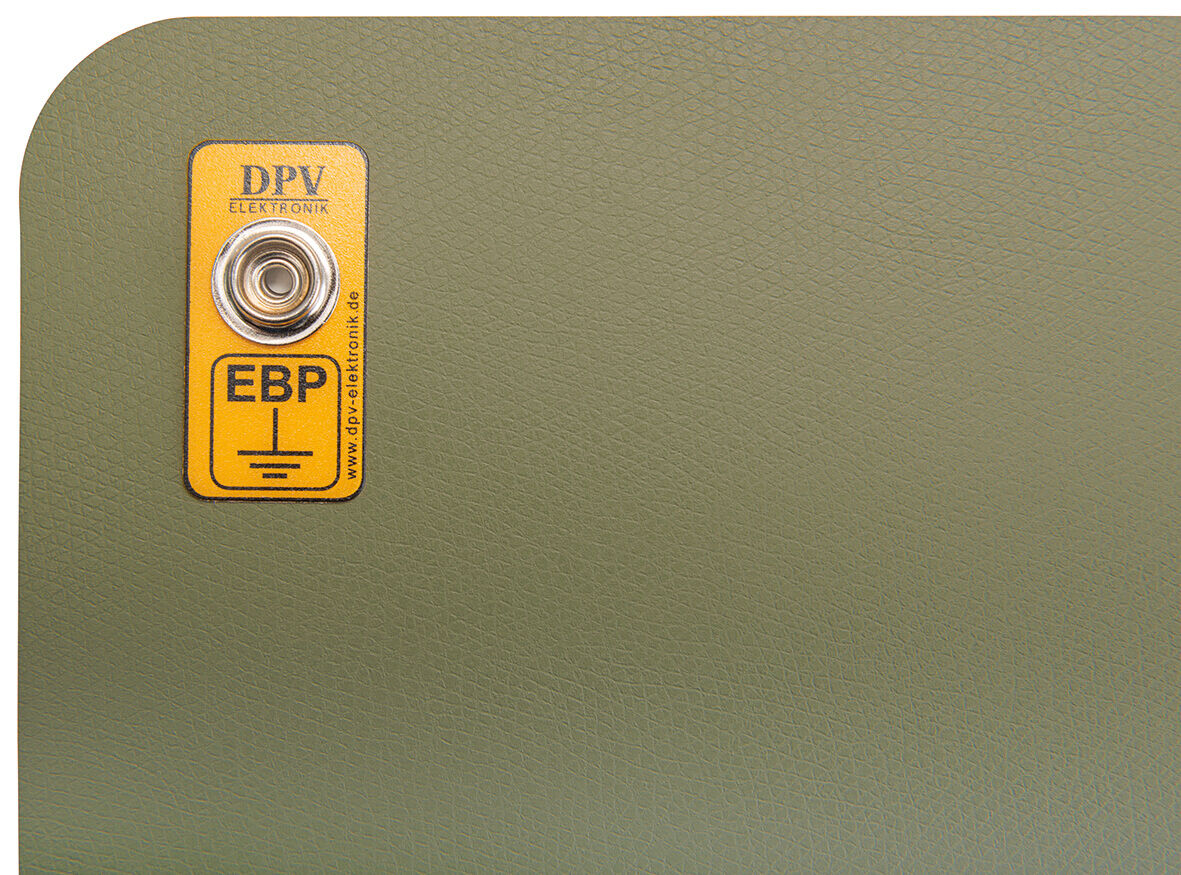

  • Delivery incl. 2 snap connections DK 10 mm on the short side and rounded corners, one with EBP label (other connections available)

(if necessary, fixation with double-sided adhesive tape or Quick-lift fabric tape)

In compliance with the ESD standard DIN EN 61340-5-1


Article image
Article description
Color
Width
Length
Thickness
Price
Compare
1402.662.S.1 - Table mats 600 x 600 mm, beige
1402.662.S.1
Table mats 600 x 600 mm, beige
beige
600 mm
600 mm
2 mm
26,20 EUR
1402.662.S - Table mats 600 x 900 mm, beige
1402.662.S
Table mats 600 x 900 mm, beige
beige
600 mm
900 mm
2 mm
34,95 EUR
1402.662.S.2 - Table mats 600 x 1200 mm, beige
1402.662.S.2
Table mats 600 x 1200 mm, beige
beige
600 mm
1200 mm
2 mm
44,90 EUR
1402.662.S.3 - Table mats 700 x 1200 mm, beige
1402.662.S.3
Table mats 700 x 1200 mm, beige
beige
700 mm
1200 mm
2 mm
51,15 EUR
1402.662.S.4 - Table mats 800 x 1200 mm, beige
1402.662.S.4
Table mats 800 x 1200 mm, beige
beige
800 mm
1200 mm
2 mm
57,40 EUR
1402.663.S.1 - Table mats 600 x 600 mm, grey
1402.663.S.1
Table mats 600 x 600 mm, grey
grey
600 mm
600 mm
2 mm
26,20 EUR
1402.663.S - Table mats 600 x 900 mm, grey
1402.663.S
Table mats 600 x 900 mm, grey
grey
600 mm
900 mm
2 mm
34,95 EUR
1402.663.S.2 - Table mats 600 x 1200 mm, grey
1402.663.S.2
Table mats 600 x 1200 mm, grey
grey
600 mm
1200 mm
2 mm
44,90 EUR
1402.663.S.3 - Table mats 700 x 1200 mm, grey
1402.663.S.3
Table mats 700 x 1200 mm, grey
grey
700 mm
1200 mm
2 mm
51,15 EUR
1402.663.S.4 - Table mats 800 x 1200 mm, grey
1402.663.S.4
Table mats 800 x 1200 mm, grey
grey
800 mm
1200 mm
2 mm
57,40 EUR
1402.664.S.1 - Table mats 600 x 600 mm, green
1402.664.S.1
Table mats 600 x 600 mm, green
green
600 mm
600 mm
2 mm
26,20 EUR
1402.664.S - Table mats 600 x 900 mm, green
1402.664.S
Table mats 600 x 900 mm, green
green
600 mm
900 mm
2 mm
34,95 EUR
1402.664.S.2 - Table mats 600 x 1200 mm, green
1402.664.S.2
Table mats 600 x 1200 mm, green
green
600 mm
1200 mm
2 mm
44,90 EUR
1402.664.S.3 - Table mats 700 x 1200 mm, green
1402.664.S.3
Table mats 700 x 1200 mm, green
green
700 mm
1200 mm
2 mm
51,15 EUR
1402.664.S.4 - Table mats 800 x 1200 mm, green
1402.664.S.4
Table mats 800 x 1200 mm, green
green
800 mm
1200 mm
2 mm
57,40 EUR
1402.665.S.1 - Table mats 600 x 600 mm, light blue
1402.665.S.1
Table mats 600 x 600 mm, light blue
light blue
600 mm
600 mm
2 mm
26,20 EUR
1402.665.S - Table mats 600 x 900 mm, light blue
1402.665.S
Table mats 600 x 900 mm, light blue
light blue
600 mm
900 mm
2 mm
34,95 EUR
1402.665.S.2 - Table mats 600 x 1200 mm, light blue
1402.665.S.2
Table mats 600 x 1200 mm, light blue
light blue
600 mm
1200 mm
2 mm
44,90 EUR
1402.665.S.3 - Table mats 700 x 1200 mm, light blue
1402.665.S.3
Table mats 700 x 1200 mm, light blue
light blue
700 mm
1200 mm
2 mm
51,15 EUR
1402.665.S.4 - Table mats 800 x 1200 mm, light blue
1402.665.S.4
Table mats 800 x 1200 mm, light blue
light blue
800 mm
1200 mm
2 mm
57,40 EUR
1402.666.S.1 - Table mats 600 x 600 mm, royal blue
1402.666.S.1
Table mats 600 x 600 mm, royal blue
royal blue
600 mm
600 mm
2 mm
26,20 EUR
1402.666.S - Table mats 600 x 900 mm, royal blue
1402.666.S
Table mats 600 x 900 mm, royal blue
royal blue
600 mm
900 mm
2 mm
34,95 EUR
1402.666.S.2 - Table mats 600 x 1200 mm, royal blue
1402.666.S.2
Table mats 600 x 1200 mm, royal blue
royal blue
600 mm
1200 mm
2 mm
44,90 EUR
1402.666.S.3 - Table mats 700 x 1200 mm, royal blue
1402.666.S.3
Table mats 700 x 1200 mm, royal blue
royal blue
700 mm
1200 mm
2 mm
51,15 EUR
1402.666.S.4 - Table mats 800 x 1200 mm, royal blue
1402.666.S.4
Table mats 800 x 1200 mm, royal blue
royal blue
800 mm
1200 mm
2 mm
57,40 EUR
Show Compare List (0)

This product is compatible with (for example):

The image shows a blue spray bottle with the label "ESD-Cleaner professional". It features a man and a woman working together at a table.
Preview: EPAclean® ESD Cleaner Professional 1l
Preview: The image displays the logo of
TOP
TOP
EPAclean® ESD Cleaner Professional 1l
ESD-Cleaner professional 1L , "EPAclean"
Spray bottle, ready-to-use cleaner
for dissipative and conductive surfaces
dpvlink
22449

10,35 EUR
Show product
The image shows a blue, square canister with a yellow label. It contains information about an ESD cleaner. Two people are smiling in the background, in a bright room.
EPAclean® ESD Cleaner Professional 5l
ESD Cleaner professional 5L , "EPAclean"
refill canister
ready-to-use cleaning agent
for dissipative and conductive surfaces
VOC content: 3%
dpvlink
22449

34,25 EUR
Show product
The bottle has a white body with a black lid. It reads "EPA clean". The lower part is orange with the label "250 ml". In the background, there are two people in a lab.
Preview: EPAclean® ESD Cleaner professional 250 ml
Preview: The image shows a bottle with a white and green label. It reads
Preview: The image displays a bottle with a white, round body and a black lid. The label is marked with information about an ESD cleaner, including usage instructions and ingredients.
EPAclean® ESD Cleaner professional 250 ml...
ESD-Cleaner professional 250 ml, "EPAclean"
ready-to-use detergent for dissipative
and conductive surfaces
dpvlink
22449

4,25 EUR
Show product

This product is similar to:

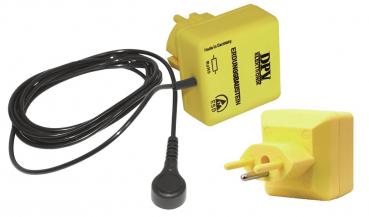

The image shows an electrical device in yellow with two connections on the left side and a cable leading to a yellow plug. It has a rectangular shape.
Preview: Grounding box 2 x 10 mm snap + 1 x BA safety socket + 1 x screw connection for eye M4
Preview: The image shows a black device with a yellow plug and a long cable connection. There are buttons and labels on the device. The plug is marked with
Preview: The image shows a rectangular black casing with several ports: two round sockets on the left and one central socket. The top is yellow and displays technical labels.
Preview: The image shows a rectangular, black device with a yellow sticker. On the sticker are diagrams and labels. A cable leads from the side of the device.
Preview: The image shows a rectangular, black plastic casing with screwable fixtures at the corners. On the side, there is a connection cable and an adjustable knob.
Grounding box 2 x 10 mm snap + 1 x BA safety...
Grounding box, 2x 10 mm snap (A) / 1x banana-
safety socket (D) / 1 x screw connection
for eye M4 (F), grounding cable
2.5 m / Schuko dummy plug
dpvlink
3681

13,50 EUR
Show product

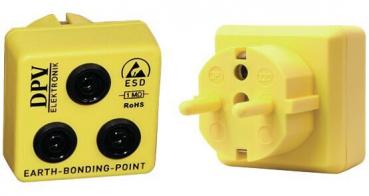

The image shows a yellow plug with a triangular shape. There are three connection sockets on the front. Below there is a note for use for ESD control.
