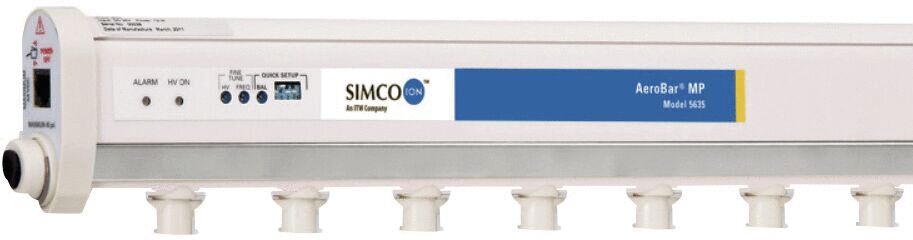

The AeroBar MP 5635 Ionizing Bar from Simco, with an active length of 1500 mm, is specifically designed for use in highly sensitive production environments such as semiconductor manufacturing. This device utilizes advanced modulated pulse technology for effective neutralization of static charges while minimizing particle contamination. The emitters of the bar are made from high-purity silicon, ensuring complete compatibility with sensitive processes.
The dimensions of the ionizing bar are 78 mm in height, 34 mm in width, and 1600 mm in length, with the active length comprising 1500 mm. The emitters are spaced 75 mm apart, ensuring an even distribution of ions. The bar operates at a working voltage of 24 V/DC and maintains an ion balance of +/- 20 V.
Additionally, the device features air assistance to enhance ion distribution and an automatic adjustment for precise static neutralization. Alarm functions inform about the operating status and can be connected to machines for monitoring and control. The AeroBar MP 5635 is suitable for ambient temperatures from 15 to 35 °C and meets the cleanliness standards of ISO 14644 Class 1.
Installing the ionizing bar is straightforward, requiring only connection to a 24 V DC power source and a compressed air line for air assistance.
Details
- ISO according to 14644-1
ISO according to 14644-1
- 1
- Active length
Active length
- 1500 mm
- Emitter spacing
Emitter spacing
- 75 mm
- Emitters
Emitters
- 31
- Ion balance +/-
Ion balance +/-
- 20 V
- Working voltage
Working voltage
- 24 V/DC
- Height [mm]
Height [mm]
- 78 mm
- Length [mm]
Length [mm]
- 1600 mm
- Width [mm]
Width [mm]
- 34 mm
- Ambient temperature
Ambient temperature
- 15 - 35 °C
