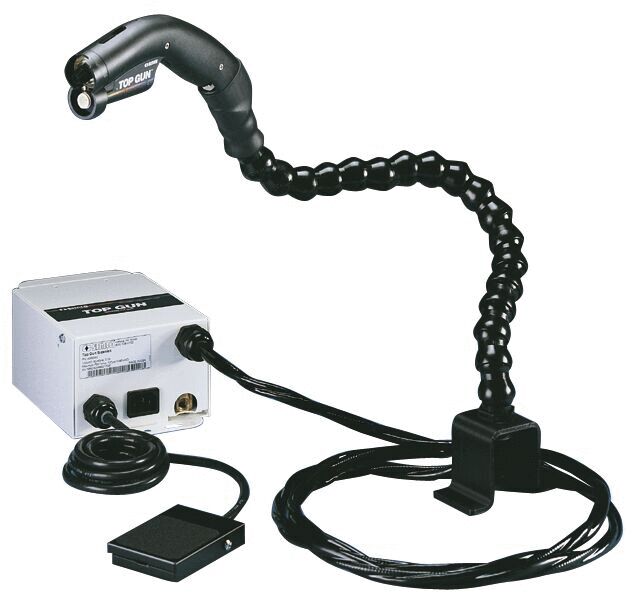

Top Gun TG3 ionizer gun with Sidekick (foot switch)
Top Gun TG3 ionizer gun with Sidekick (foot switch)
The Top Gun TG3 Ionizing Gun with Sidekick by Simco-Ion is specifically designed for use in electronics manufacturing and other sensitive production environments to effectively neutralize static charges and eliminate contaminants. This model features high-voltage ionization technology that allows for an ozone generation of a maximum of 0.001 ppm at a distance of 45 cm. The gun, hose, and cable are conductive to ensure safe handling.The TG3 offers precise positioning with its flexible neck, ideal for tasks requiring high accuracy. Additionally, the foot pedal allows for hands-free operation, enhancing productivity in repetitive tasks. The device is lightweight and ergonomically designed, allowing for comfortable use over extended periods. A replaceable filter at the nozzle ensures clean air exits.
The ionizing gun is ISO 6 compliant and provides self-balancing of offset voltage to maintain a balance of 0 ±15 volts. The dimensions of the controller are 132 mm in width, 85 mm in height, and 164 mm in depth. The IsoStat technology ensures stable ion delivery, making the TG3 an indispensable tool in any production environment that demands high standards of cleanliness and precision.
Details
- ISO according to 14644-1 ISO according to 14644-1
- 6
- Ozone generation max. Ozone generation max.
- 0.001 ppm
- Voltage Voltage
- 230 V
- Depth Depth
- 164 mm
- Height Height
- 85 mm
- Width Width
- 132 mm
Show accessories
Accessories
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family

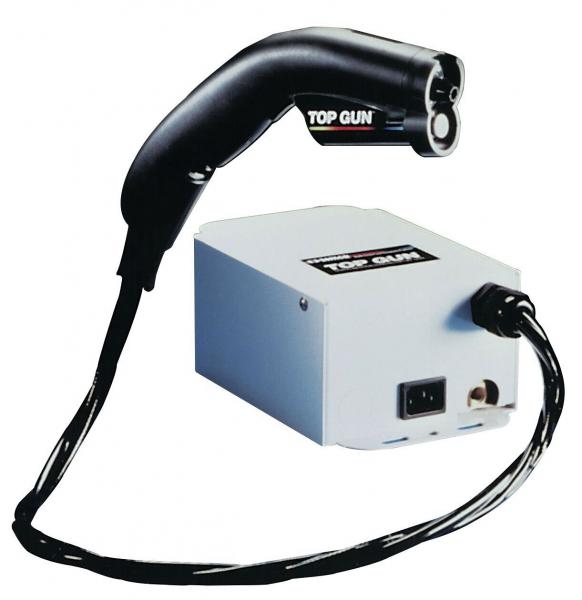

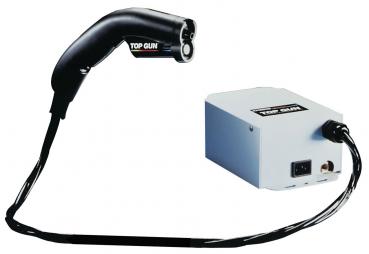

Top Gun TG3 / TG3 with Side Kick
Ionized air integration: integrates ionized air to neutralize static charges that trap particles and ensure effective cleaning.
Airflow control: adjustable airflow is controlled by a foot pedal, reducing compressed air consumption and operating costs.
Air supply: via a compressed air system in the range of 1 to 6.8 bar.
Ergonomic design: lightweight and ergonomic design for comfortable handling.
Filter: a replaceable filter (0.01 µm) on the nozzle ensures a clean air outlet.
Ion delivery technology: uses IsoStat technology for stable ion delivery.
Areas of application: Suitable for the electronics industry as well as ISO 6 class cleanrooms.
Self-balancing: maintains an offset voltage of 0 ±15 volts for efficient neutralization of static charge.
Article image
Article description
ISO according to 14644-1
Ozone generation max.
Voltage
Depth
Height
Width
Cable length
Price
Compare
6
0.001 ppm
230 V
164 mm
85 mm
132 mm
