Aerostat PC 2 - mobile ionizer (table model)
Aerostat PC 2 - mobile ionizer (table model)

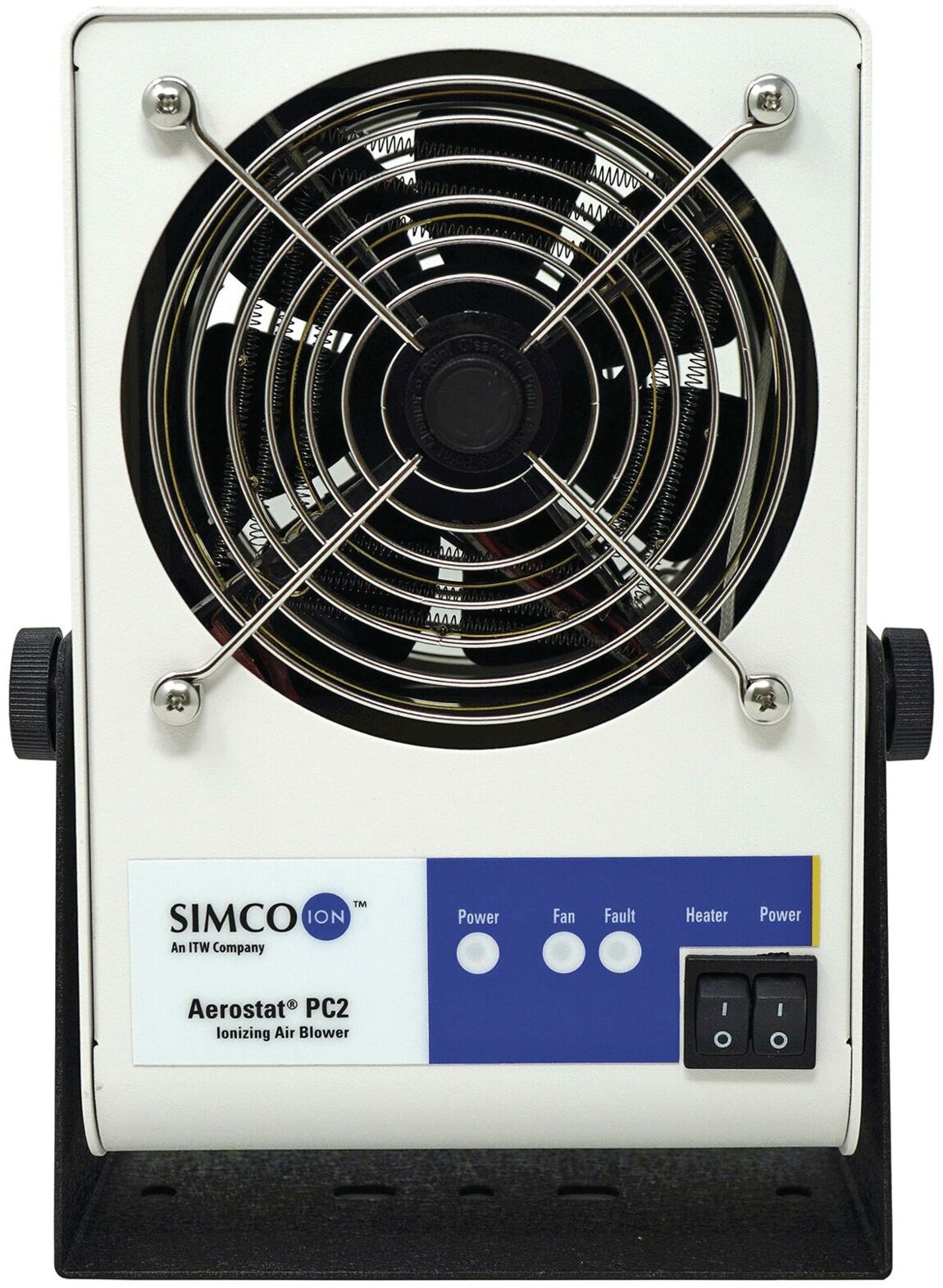

The Simco Aerostat PC 2 is an advanced, mobile ionizing device in a desktop model, specifically designed for the neutralization of static charges. With a voltage of 100-240 V and alternating current technology, it offers an effective ionization area of 300 x 1220 mm. The device is characterized by its compact dimensions of 173 mm width, 231 mm height, and 84 mm depth, and weighs only 1.25 kg, making it ideal for use on workbenches or in integrated process tools.The micropulse technology ensures a self-balancing ion output with a precision of ±10 V, which guarantees the protection of sensitive electronic components. The discharge time is less than 2 seconds at a distance of one meter, and ozone production is extremely low at a maximum of 0.005 ppm, minimizing environmental impact.
Additional customization options such as fan speed control and an optional heater increase user comfort, while optical and optionally acoustic alarm systems monitor operational status. A built-in emitter point cleaner reduces maintenance times and promotes consistently optimal performance.
Details
- Coverage Coverage
- 300 x 1220 mm
- Discharge time max. Discharge time max.
- 2 s
- Input voltage Input voltage
- 100 - 240 V/AC
- Ion balance +/- Ion balance +/-
- 10 V
- Ozone generation max. Ozone generation max.
- 0.005 ppm
- Depth Depth
- 84 mm
- Height Height
- 231 mm
- Width Width
- 173 mm
- Weight Weight
- 1.25 kg
Show accessories
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Accessories
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Aerostat PC 2 - mobile table model
- Effective static neutralization: The device neutralizes static charges in a working area of up to 3 meters in length and achieves a discharge time of less than 2 seconds at a distance of one meter.
- Micropulse technology: provides a self-balancing ion discharge with an accuracy of ±10 V, which is crucial for protecting sensitive electronic components.
- Adjustable settings: includes fan speed control (low/medium/high), optional heater for user comfort and alarm systems (visual and optional audible) to monitor faults and ionization status.
- Built-in maintenance tools: A built-in emitter point cleaner minimizes maintenance time and ensures optimal performance.
- Dimensions: 173 x 231 x 84 mm (WxHxD)
Article image
Article description
Coverage
Discharge time max.
Input voltage
Ion balance +/-
Ozone generation max.
Depth
Height
Width
Weight
Price
Compare
300 x 1220 mm
2 s
100 - 240 V/AC
10 V
0.005 ppm
84 mm
231 mm
173 mm
1.25 kg
300 x 1220 mm
2 s
100 - 240 V/AC
10 V
< 0,05 ppm ppm
84 mm
231 mm
173 mm
1.25 kg
300 x 1220 mm
2 s
100 - 240 V/AC
10 V
0.005 ppm
84 mm
231 mm
173 mm
1.25 kg
300 x 1220 mm
2 s
100 - 240 V/AC
10 V
0.005 ppm
84 mm
231 mm
173 mm
1.25 kg
