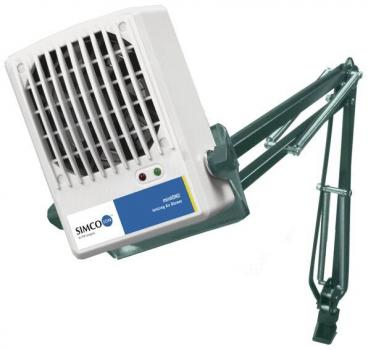

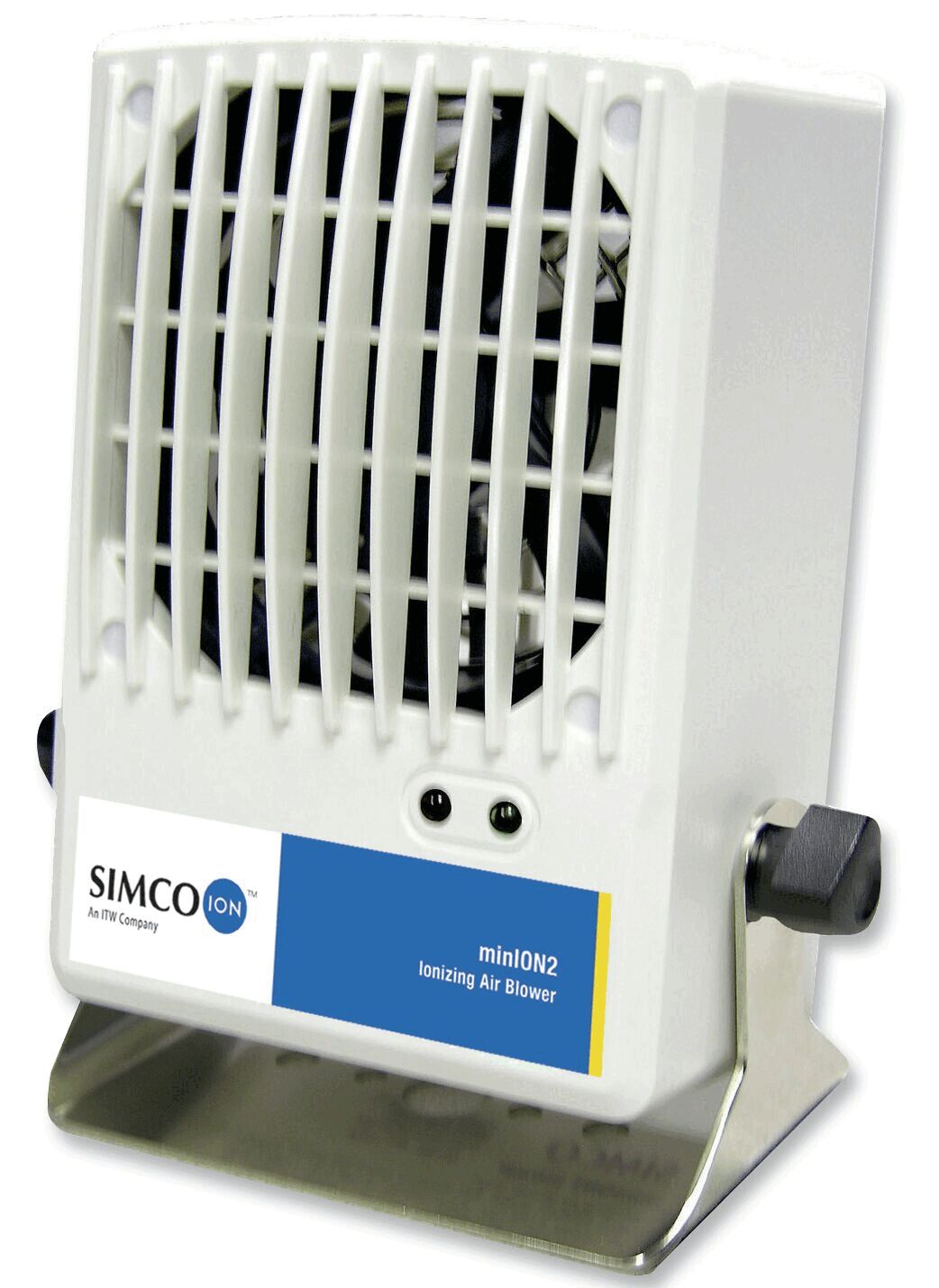

minION2 - Portable Ionizer
minION2 - Portable Ionizer
The Simco-Ion minION2 is an advanced, mobile ionizing device, specifically designed for use in sensitive environments such as electronic assembly and semiconductor manufacturing. With its compact dimensions of 98 x 136 x 60 mm and a weight that allows for easy portability, it is ideally suited for use directly at workstations or within machines.The self-balancing offset voltage of ±10 V ensures constant ionization without the need for manual readjustment, while the two-stage fan with an off switch enables rapid discharge of static charges, enhancing the safety and functionality of the devices. The device can be operated with a voltage of 24 VDC and supports the chaining of up to three units to achieve comprehensive coverage of the ionization area of 300 x 1200 mm.
Additionally, the minION2 features a modular wiring system and local LED indicators as well as relay contacts for fault detection. Ozone generation is extremely low at a maximum of 0.005 ppm, allowing for use in ISO 7 class cleanrooms. Despite its high performance, the device is supplied without a plug-in power supply, allowing for flexible adaptation to local power supply conditions.
Developed and manufactured by Simco, this device sets new standards in the effective control of electrostatic discharges.
Details
- ISO according to 14644-1 ISO according to 14644-1
- 7
- Coverage Coverage
- 300 x 1200 mm
- Discharge time max. Discharge time max.
- 2 s
- Ion balance +/- Ion balance +/-
- 10 V
- Ozone generation max. Ozone generation max.
- 0.005 ppm
- Voltage Voltage
- 230 V
- Working voltage Working voltage
- 24 V/DC
- Depth Depth
- 60 mm
- Height Height
- 136 mm
- Width Width
- 98 mm
- Operating temperature Operating temperature
- 0 - 50 °C
- Weight Weight
- 0.5 kg
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
minION2 - Portable ionizer
Article image
Article description
ISO according to 14644-1
Coverage
Discharge time max.
Ion balance +/-
Ozone generation max.
Voltage
Working voltage
Depth
Height
Width
Operating temperature
Weight
Price
Compare
7
300 x 1200 mm
2 s
10 V
0.005 ppm
230 V
24 V/DC
60 mm
136 mm
98 mm
0 - 50 °C
0.5 kg
7
300 x 1200 mm
2 s
10 V
0.005 ppm
230 V
24 V/DC
60 mm
136 mm
98 mm
0 - 50 °C
0.5 kg
