Grounding box - customer-specific -

(Product No.: 2201.spez)

Mobile Preview: Image

Mobile Preview: Image

(Product No.: 2201.spez)

Grounding box - customer-specific -

ArticleNo: 2201.spez

dpvlink:

3692

Properties:

ESD-protective

Further product information

Availability: Delivery time!

Delivery time!

Delivery time!

Product Info

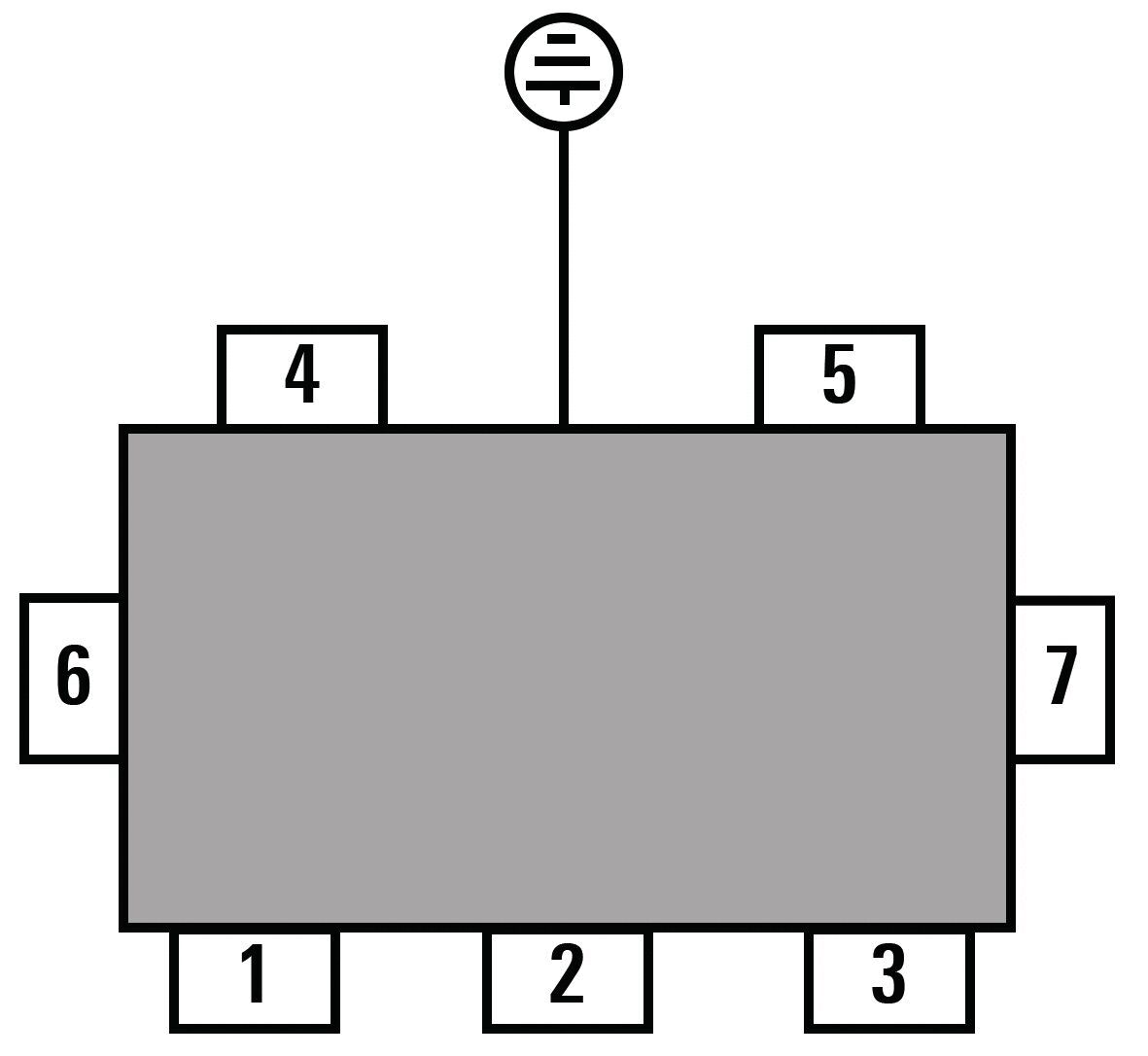

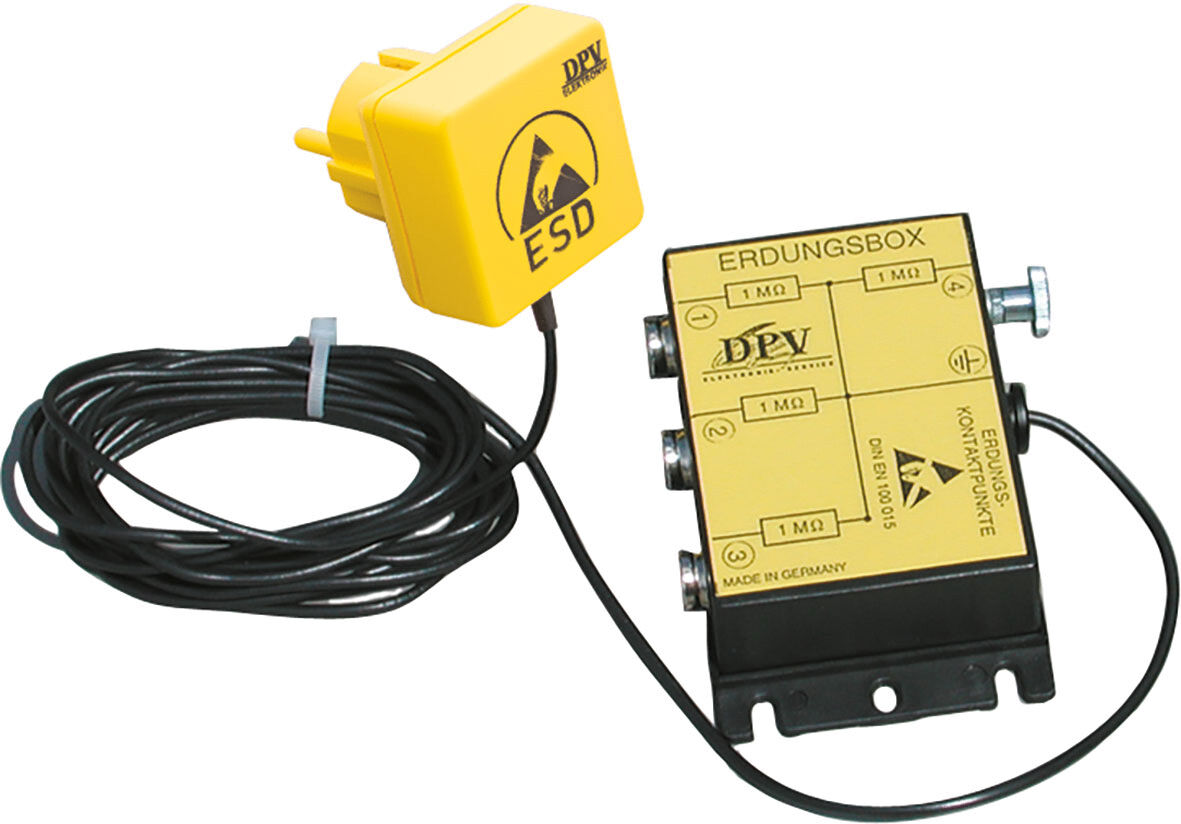

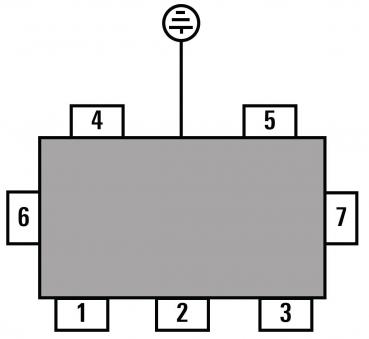

The custom grounding box serves as a central grounding connection point and is equipped with a 2.5 m long grounding cable, which is optionally available with an M4 screw eyelet or a connector plug. It features a 1 MOhm safety resistor per connection and meets ESD safety standards. The box can be configured with 1 to 7 connections, with various contacting options available: Type A with a 10 mm push button, Type B with 7 mm, Type C with 4 mm, Type D with safety sockets for 4 mm banana plugs, Type F with a safety connection and a knurled nut for M4/M5 eyelets, and Type G with a 20 cm long connection cable and an eyelet for desk frames. Additional contacting options are available upon request. This allows for flexible adaptation to specific requirements and applications.

Details

ESD protective

Show accessories

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
