Euro box trolley ESD 3 shelves 410 x 610 mm

(Product No.: 091.9381.ESD)

Euro box trolley ESD 3 shelves 410 x 610 mm

Name: Euro box trolley ESD 3 shelves 410 x 610 mm
SKU: 091.9381.ESD
Price: 587.80 EUR
Availability: InStock

ArticleNo: 091.9381.ESD

Euro box trolley ESD 3 shelves 410 x 610 mm

dpvlink:

20564

Depth :

525 mm

Width :

666 mm

Height :

1101 mm

Load capacity :

250 kg

Properties:

Further product information

Shelves / Loading bed:

Availability: Delivery time!

Delivery time!

587,80 EUR

excl. 19% tax

1 PCE

Compare

Notice

Product Info

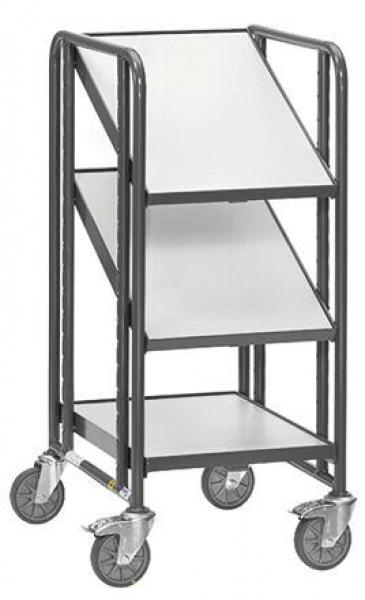

Euro box trolley ESD 3 shelves 410 x 610 mm

The Eurokasten Cart ESD 3-Tier 410 x 610 mm by Fetra is specifically designed for use in ESD-sensitive environments of the electronics industry. This model meets the ESD standard DIN EN 61340-5-1 and provides a secure transportation solution for Euro containers. The construction is made of welded steel tube and profile steel, electrostatically conductive and powder-coated in slate gray (RAL 7015).
The shelves are made from conductive wood material boards according to DIN 68765, with a rim of about 7 mm height. The overall dimensions are 525 x 666 x 1101 mm (LxWxH) with a load capacity of 250 kg, distributed over three tiers each with a load capacity of 80 kg. The tiers are adjustable (grid 50 mm) and can be mounted at an angle of 15° or 30°.
Mobility is ensured by four swivel casters with TPE-ESD tires (diameter 125 mm) and precision groove ball bearings, two of the casters featuring locks. The surface resistance is between 10^5 - 10^7 Ω, ensuring electrostatic discharge capability. Optionally, Fetra's TOTALSTOP central braking system is available, providing additional safety through easy operation. This cart combines high functionality with maximum safety and user-friendliness for daily use.

Details

Depth Depth: 525 mm
Width Width: 666 mm
Height Height: 1101 mm
Load capacity Load capacity: 250 kg
Wheel Ø Wheel Ø: 125 mm
Loading bed Loading bed: 410 x 610 mm
Shelf height Shelf height: 264 - 864 mm
Conductivity Conductivity: dissipative
Surface resistance Rs Surface resistance Rs: 10⁵ - 10⁷ Ω
Material Material: steel
Tires Tires: TPE / ESD
ESD ESD: yes
Shelves Shelves: 3
Weight Weight: 41 kg

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Catalogues

Page: 370

Complete Catalog 2023 - 2024

Product Family

ESD Euro box trolley with base plate

The ESD Euro box trolley offers a robust and flexible solution for the safe transportation of Euro boxes in ESD-sensitive areas. Its sophisticated design and electrically conductive components ensure maximum functionality and safety.

Robust construction: tubular and sectional steel, welded, electrically conductive, powder-coated in slate grey (RAL 7015)
Conductive shelves: wood-based sheet material according top DIN 68765 with edge
Flexible shelf frames: variably adjustable shelf frames, inclination 15° or 30°
Smooth-running castors: 4 swivel castors with TPE ESD tyres, precision deep-groove ball bearings and 2 brakes on the swivel castors in accordance with EN 1757-3
High load capacity: 80 kg load capacity per loading surface, ideal for heavy loads

These ESD Euro box trolleys offer maximum functionality and user-friendliness for professional use.
