Euro box trolley ESD 3 shelves 410 x 610 mm

Name: Euro box trolley ESD 3 shelves 410 x 610 mm
SKU: 091.9380.ESD
Price: 421.80 EUR
Availability: InStock

ArticleNo: 091.9380.ESD

Euro box trolley ESD 3 shelves 410 x 610 mm

dpvlink:

20560

Depth :

525 mm

Width :

666 mm

Height :

1101 mm

Load capacity :

250 kg

Properties:

Further product information

Shelves / Loading bed:

Availability: Delivery time!

Delivery time!

421,80 EUR

excl. 19% tax

1 PCE

Compare

Notice

Product Info

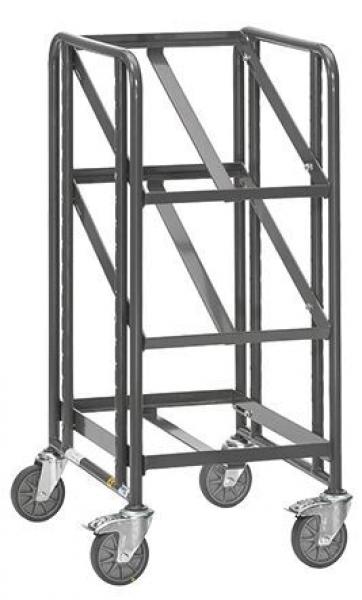

Euro box trolley ESD 3 shelves 410 x 610 mm

The Fetra ESD 3-Tier Trolley is specifically designed for use in ESD-sensitive environments of the electronics industry. This model measures 525 x 666 x 1101 mm (LxWxH) and has a total load capacity of 250 kg, with each of the three tiers able to carry up to 80 kg. The loading areas of 410 x 610 mm are adjustable in a grid of 50 mm and allow an inclination of 15° or 30°, which facilitates the transport and handling of materials.
The robust construction made of welded steel tube and profile steel is electrostatically conductive and powder-coated in slate grey (RAL 7015). The four swivel casters are equipped with TPE-ESD tires, ensuring quiet, traceless, and comfortable movement. Two of the casters have locks according to EN 1757-3, complementing Fetra's braking system. This innovative system can be operated with a foot pedal, secures the swivel movement of the casters, and prevents lateral swiveling of the cart.
The surface conductivity of the cart meets standards with a resistance of 10^5 - 10^7 Ohm, ensuring safe handling of sensitive electronic components. The TOTALSTOP central braking system is available as an option, providing additional safety.

Details

Depth Depth: 525 mm
Width Width: 666 mm
Height Height: 1101 mm
Load capacity Load capacity: 250 kg
Wheel Ø Wheel Ø: 125 mm
Loading bed Loading bed: 410 x 610 mm
Shelf height Shelf height: 238 - 838 mm
Conductivity Conductivity: dissipative
Surface resistance Rs Surface resistance Rs: 10⁵ - 10⁷ Ω
Material Material: steel
Tires Tires: TPE / ESD
ESD ESD: yes
Shelves Shelves: 3
Weight Weight: 31 kg

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Catalogues

Page: 369

Complete Catalog 2023 - 2024

Product Family

ESD Euro box trolley

The ESD Euro box trolley offers a robust and flexible solution for the safe transportation of Euro boxes in ESD-sensitive areas. Its sophisticated design and electrically conductive components ensure maximum functionality and safety.

Robust construction: tubular and sectional steel, welded, electrically conductive, powder-coated in slate grey (RAL 7015)
Flexible shelf frames: variably adjustable shelf frames, inclination 15° or 30°
Smooth-running castors: 4 swivel castors with TPE ESD tyres, precision deep-groove ball bearings and 2 brakes on the swivel castors in accordance with EN 1757-3
High load capacity: 80 kg load capacity per loading surface, ideal for heavy loads
Low-noise and energy-saving: TPE tires for non-marking, quiet and comfortable running

These ESD Euro box trolleys offer maximum functionality and user-friendliness for professional use.
