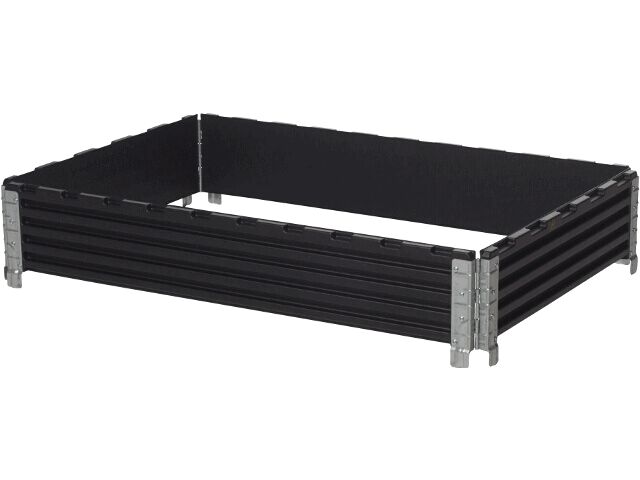

The image displays a rectangular, black planter box made from striped material. The corners are reinforced with silver metal connectors. It is open and has a flat, wide base.

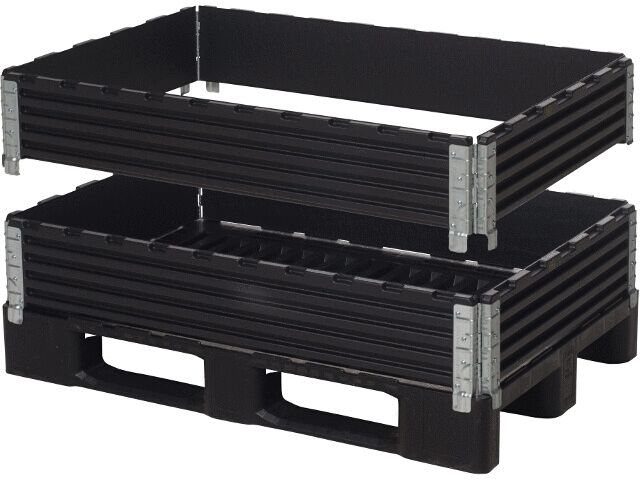

The image shows two stackable, black plastic boxes with open sides. They feature wavy surfaces and are designed in a flat, rectangular format.
Preview: The image displays a rectangular, black planter box made from striped material. The corners are reinforced with silver metal connectors. It is open and has a flat, wide base.
Preview: The image shows two stackable, black plastic boxes with open sides. They feature wavy surfaces and are designed in a flat, rectangular format.
Pallet stacking frame ESD
(Product No.: 5395.AR)
The image displays a rectangular, black planter box made from striped material. The corners are reinforced with silver metal connectors. It is open and has a flat, wide base.
The image shows two stackable, black plastic boxes with open sides. They feature wavy surfaces and are designed in a flat, rectangular format.
Mobile Preview: The image displays a rectangular, black planter box made from striped material. The corners are reinforced with silver metal connectors. It is open and has a flat, wide base.
Mobile Preview: The image shows two stackable, black plastic boxes with open sides. They feature wavy surfaces and are designed in a flat, rectangular format.
Notice

Pallet stacking frame ESD

Pallet stacking frame ESD

dpvlink:
19362
Length [mm]:
1200
Width [mm]:
800
Height [mm]:
200
Properties:
Further product information

available available
96,55 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

Pallet stacking frame ESD

The ESD pallet collar frame is characterized by its precise dimensions of 1200 mm in length, 800 mm in width, and 200 mm in height, and is made from conductive polystyrene reinforced with carbon. Weighing approximately 5.2 kg, this frame is lightweight yet sturdy. The product is specifically designed for use in ESD-sensitive environments and meets the standard DIN EN 61340-5-1, which is further confirmed by the ESD marking.
The black color and the construction with four corner hinges not only allow for easy handling and storage but also diagonal folding for space-saving storage. Additionally, the frame is stackable, optimizing its use in storage and transport areas. Ideal for technical purchasers who value efficiency and safety in handling electrostatically sensitive products.
Length [mm]
Length
1200
Width [mm]
Width
800
Height [mm]
Height
200
Color
Color
black
Conductivity
Conductivity
conductive
Material
Material
polystyrene
Stackable
Stackable
yes
Weight
Weight
5.2 kg
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 296
Complete Catalog 2023 - 2024

Product Family

Article image
Article description
Length [mm]
Width [mm]
Height [mm]
Price
Compare
5395.AR - Pallet stacking frame ESD
5395.AR
Pallet stacking frame ESD
1200
800
200
96,55 EUR
Show Compare List (0)

This product is compatible with (for example):

The image shows a black plastic pallet. It has a rectangular shape with many holes and a grid pattern. The corners are rounded and it stands stable on four short legs.
Lightweight pallet ESD 1200 x 800 mm
ESD lightweight pallet 1200 x 800 x 150 mm, black
with 9 feet, material: PP with external locking
electrostatically conductive
(DIN EN 61340-5-1)
Surface load:
static 1,000 kg
dynamic 500 kg
Specific contact resistance / surface resistance
10H3 < 10H10
dpvlink
15655

40,80 EUR
The image shows a black plastic pallet. It has a grid-like structure with several square openings and four sturdy feet on the sides.
Lightweight pallet ESD 1200 x 800 mm / skids...
Lightweight pallet ESD 1200 x 800 x 150 mm, black
with 3 skids, material: PP with external locking

electrostatically conductive (DIN EN 61340-5-1)
Surface load::
static 1,000kg
dynamic 500 kg
Specific contact resistance / surface resistance
10H3 < 10H10
dpvlink
15655

56,10 EUR
The image shows a black plastic pallet. It has a rectangular shape with a smooth surface and side handles. The edges are slightly raised, and the bottom is stable.
Transport pallet ESD type 860
ESD transport pallet type 860
1200 x 800 x 160 mm, with 3 skids, external lock
Weight 17.5 kg
Material: conductive polypropylene
load capacity (load):
static = 3500 kg
dynamic = 1500 kg
high rack = 300 kg
dpvlink
17010

110,55 EUR
The image shows a black plastic pallet. It is rectangular, flat, and has two openings on the longer sides for gripping. The surface is textured and sturdy, ideal for storage.
Transport pallet ESD type 861
ESD pallet type 861
1200 x 800 x 160 mm, reinforced with 2 steel pipes
with 3 skids, external locking, weight 19 kg
Material: conductive polypropylene
load capacity (load):
static = 4500 kg
dynamic = 2500 kg
high rack = 1500 kg
dpvlink
17010

121,75 EUR
