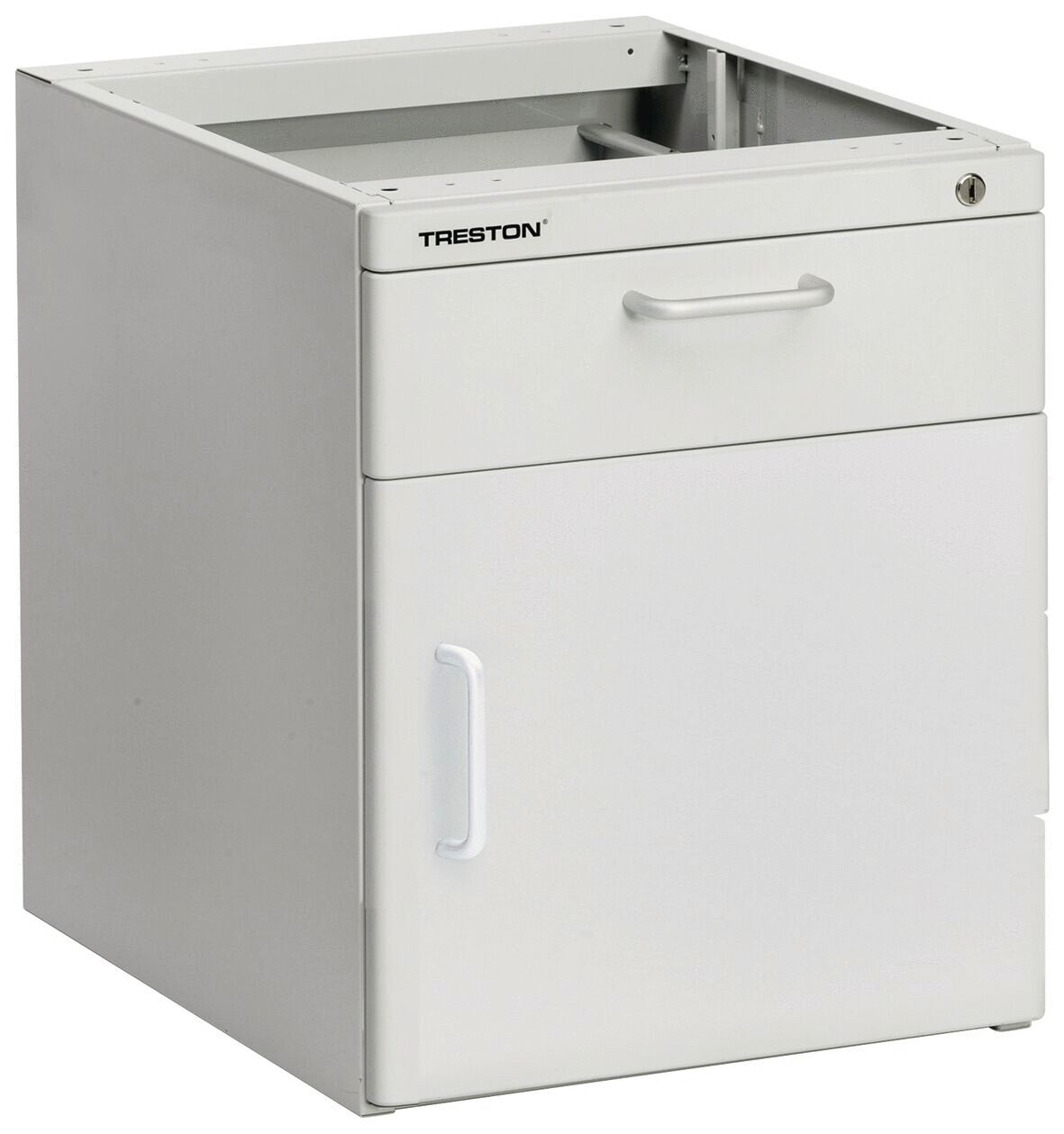

The image shows a white rolling cabinet with a drawer on top and a door at the bottom. It has a smooth surface and a simple, rectangular shape.
Drawer unit LMC-04-D ESD
(Product No.: LMC-04-DESD)
The image shows a white rolling cabinet with a drawer on top and a door at the bottom. It has a smooth surface and a simple, rectangular shape.
Notice / Inquire

Drawer unit LMC-04-D ESD

Drawer unit LMC-04-D ESD

dpvlink:
1601
Width :
370 mm
Height :
455 mm
Depth :
460 mm
Drawers:
1
Load capacity :
15 kg
suitable for system:
TP, TPH, WB, TPB
Properties:
Further product information
Treston Configurator
Configure now


Delivery time! Delivery time!
465,70 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Drawer unit LMC-04-D ESD

The Treston drawer unit LMC-04-D ESD impresses with its modern, slim design and is ideal for work areas with limited space. This model is specifically designed for use with TP, TPH, and WB series workbenches. For optimal use at WB tables, the additional holder LMCK 2 is required.
The external dimensions of the drawer unit are 460 mm in depth, 370 mm in width, and 455 mm in height. Equipped with a drawer (100 mm height) and a door (300 mm height), the product offers a practical layout. The internal dimensions of the drawer are 278 mm wide and 75 mm high.
The construction from powder-coated steel ensures durability and stability, with each drawer having a load capacity of up to 15 kg. The drawers are equipped with slide rails that allow an opening of up to 75% and come with mounts and a central locking system. The front panels and handles are rounded for safer handling.
This product combines functionality with an attractive design and meets the requirements for electrostatic discharge safety (ESD), making it particularly suitable for use in electronically sensitive environments.
Width
Width
370 mm
Height
Height
455 mm
Depth
Depth
460 mm
Drawers
Drawers
1
Load capacity
Load capacity
15 kg
suitable for system
suitable for system
TP, TPH, WB, TPB
Color
Color
light grey
Drawer height
Drawer height
100 mm
Internal depth
540 mm
Internal height
75 mm
Internal width
Internal width
278 mm
Material
Material
steel
Surface
Surface
Epoxy powder-coated
ESD
ESD
yes
Version
Version
70% extension, with door
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows an adjustable-height table in white with four casters. It has a square tabletop and a sturdy metal frame that stands upright.
Table trolley SAP-710 ESD
Table trolley 700 x 1000 mm
electrically conductive, height adjustment
(DIN EN 61340-5-1)
dpvlink
1474

652,75 EUR
Show product
Preview: Work table TP ESD 700 x 1500 mm
Preview: Image
Work table TP ESD 700 x 1500 mm
Basic unit TP-715 ESD
Plate size 700 x 1500 mm (WxD)
height adjustment 650-900 mm
dpvlink
1437

685,45 EUR
Show product
Preview: Work table TP ESD 700 x 1500 mm
Preview: Image
Preview: Image
Work table TP ESD 700 x 1500 mm
Basic unit TPH-715 ESD with shelf board
Plate size 700 x 1500 mm (WxD)
Shelf board depth 310 mm
dpvlink
1455

1.066,10 EUR
Show product
The image depicts a simple, modern desk in light gray. The tabletop is large and flat, the legs are sturdy and slightly tapered. The design appears minimalist and functional.
Preview: ESD Work table WB / electronic adjustment 800 x 1500 mm
Preview: Image
Preview: Image
Preview: Image
Preview: Image
ESD Work table WB / electronic adjustment...
Work table WB 815 EL ESD
Plate size: 800 x 1500 mm, load capacity 200 kg,
Height adjustment 700-1100 mm / electric motor
with cable tray WBCT 180
dpvlink
6776

2.667,75 EUR
Show product
The image shows a mobile shelving unit with three white shelves. The frame is made of silver metal and has four wheels, two of which have brakes.
Preview: Universal shelf trolley WTR-140 ESD
Preview: Image
Universal shelf trolley WTR-140 ESD
Universal shelf trolley WTR-140 ESD
Basic trolley with 3 shelves (without accessories)
External dimensions: 650 x 650 x 1400 mm (Dxwxh)
dpvlink
1951

1.310,55 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 261
Complete Catalog 2023 - 2024
Configurators:
Treston Configurator

Product Family

Drawer unit LMC

A lightweight drawer unit with one, two or four drawers that can be conveniently mounted under the worktop. The frame and drawers are made of powder-coated steel, the drawer fronts and the cupboard door are made of MDF. A clever and practical solution for the safe storage of small parts.

  • One drawer/drawer unit for mounting under a worktop
  • Max. 15 kg per drawer
  • Easy opening and closing of the drawers thanks to ball-bearing telescopic runners
  • Suitable for mounting under the worktops of the WB, TP, TPH series and under the worktops of the SAP710, SAP715 and WTR trolleys
  • A screen is required for mounting under WB worktables and WTR trolleys, which must be ordered separately

Article image
Article description
Width
Height
Depth
Drawers
Load capacity
suitable for system
Price
Compare
LMC-01ESD - Drawer unit LMC-01 ESD
LMC-01ESD
Drawer unit LMC-01 ESD
370 mm
135 mm
460 mm
1
15 kg
TP, TPH, WB, TPB, WTR, SAP
268,20 EUR
LMC-02ESD - Drawer unit LMC-02 ESD
LMC-02ESD
Drawer unit LMC-02 ESD
370 mm
245 mm
460 mm
2
15 kg
TP, TPH, WB, TPB
429,05 EUR
LMC-04ESD - Drawer unit LMC-04 ESD
LMC-04ESD
Drawer unit LMC-04 ESD
370 mm
455 mm
460 mm
4
15 kg
TP, TPH, WB, TPB
601,75 EUR
LMC-04-DESD - Drawer unit LMC-04-D ESD
LMC-04-DESD
Drawer unit LMC-04-D ESD
370 mm
455 mm
460 mm
1
15 kg
TP, TPH, WB, TPB
465,70 EUR
LMCK-2 - Cover LMCK 2
LMCK-2
Cover LMCK 2





WB, WTR
18,95 EUR
