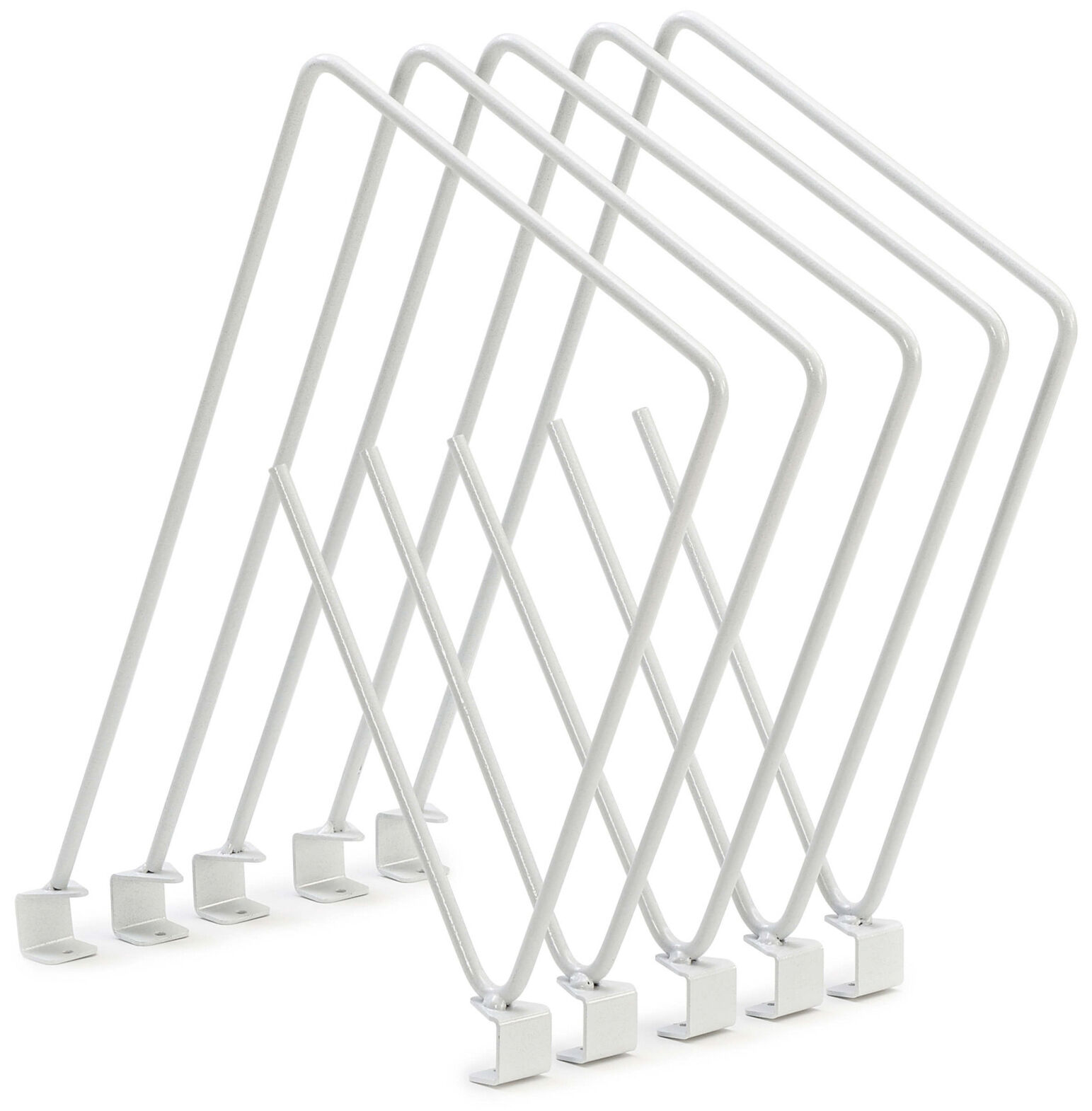

The image shows several white wire frames, arranged at angles to each other. They have square feet at the bottom and are designed to hold objects.

Lower part bracket set ESD for shelf ALH/SH

(Product No.: PDH-ESD)

The image shows several white wire frames, arranged at angles to each other. They have square feet at the bottom and are designed to hold objects.

(Product No.: PDH-ESD)

Lower part bracket set ESD for shelf ALH/SH

ArticleNo: PDH-ESD

Lower part bracket set ESD for shelf ALH/SH

dpvlink:

21598

Height :

400 mm

Depth :

310 mm

suitable for system:

TPH, WB, QuatreX, TPB

suitable for module:

ALH,SH

Properties:

ESD-protective

Further product information

Treston Configurator
Configure now

Availability: Delivery time!

Delivery time!

Delivery time!

NEW

138,65 EUR

excl. 19% tax

1 PCU

Notice / Inquire

Product Info

Lower part bracket set ESD for shelf ALH/SH

The ESD Bottom Bracket Set for Tier Board ALH and SH is an ideal solution for structured and secure storage in ESD-protected work areas. The set features a height of 400 mm and a depth of 310 mm, allowing it to seamlessly integrate into corresponding tier boards. The electrostatic discharge safety (ESD) ensures the protection of sensitive electronic components from static discharges. The light gray coloration and the material, a powder-coated steel, provide not only an appealing look but also high durability and robustness against physical and chemical influences. This product combines functionality with a high level of safety, making it an excellent choice for technical work environments that require ESD protection.

Details

Height Height: 400 mm
Depth Depth: 310 mm
suitable for system suitable for system: TPH, WB, QuatreX, TPB
suitable for module suitable for module: ALH,SH
Color Color: light grey
Material Material: steel
Surface Surface: Epoxy powder-coated
ESD ESD: yes

ESD protective

Show accessories

Pictograms

ESD protective

Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
