The image shows a simple, rectangular plate made of light material. It is flat and has a gray border around the edges. The surface is smooth and provides space for various objects.
Shelf ALH-110 ESD
(Product No.: ALH-110ESD)
The image shows a simple, rectangular plate made of light material. It is flat and has a gray border around the edges. The surface is smooth and provides space for various objects.
Notice / Inquire

Shelf ALH-110 ESD

dpvlink:
1555
Depth :
310 mm
suitable for system:
QuatreX, WB
suitable for module:
AL2X110W
Properties:
Further product information
Treston Configurator
Configure now


Delivery time! Delivery time!
293,65 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Shelf ALH-110 ESD

The shelf board ALH-110 ESD, manufactured by Treston, is an optimal addition for WB workbenches and can be mounted on the AL2X assembly profiles. This height-adjustable model offers a practical depth of 310 mm and a width of 1090 mm with a material thickness of 26 mm. It is specifically designed for use in ESD-sensitive areas and supports a maximum load capacity of 50 kg. The ESD protection feature prevents electrostatic discharges, making the shelf board ideal for use in electronic manufacturing environments.
Depth
Depth
310 mm
suitable for system
suitable for system
QuatreX, WB
suitable for module
suitable for module
AL2X110W
Thickness
Thickness
25 mm
Width
Width
1090 mm
ESD
ESD
yes
Version
Version
height-adjustble
Load capacity
Load capacity
50 kg
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a simple metal frame. It consists of two vertical bars on the sides and a horizontal beam connecting them. The frame is stable and has fixtures on the bottom.
Upright profile AL2X-110W
Upright profile 55 x 1063 x 900 mm
consisting of 2 vertical profiles +
1 horizontal profile
suitable for WB-811 ESD
dpvlink
1545

246,40 EUR
Show product
The image displays a simple, silver aluminum frame. It consists of two vertical poles and a horizontal connection that provides stability. The design is plain and functional.
Preview: Upright profile AL2X-110QX
Preview: The image displays a simple, gray table with two vertical, metallic supports on each side. A horizontal bar runs along the top of the supports.
Upright profile AL2X-110QX
Upright ESD QuatreX 1060x1200mm
Depth 55mm
The set consists of 2 upright and
a horizontal aluminium profile
dpvlink
29648

265,00 EUR
Show product
The table is modern and has a white surface with gray legs. In the center, there is a narrow shelf. It appears sturdy and is well-suited for a workspace.
Preview: ESD Work table QuatreX / electric adjustment 900 x 1025 mm
Preview: Image
ESD Work table QuatreX / electric adjustment...
QuatreX Table frame 1025x900 mm
Dimensions: 1025 x 900 mm (WxD),
height-adjustable 710-1210 mm / electric motor
Load capacity 300 kg - without ESD table top

Tabletop must be grounded with the ESD tabletop in the EPA area. Matching ESD grounding set QX-ESD
dpvlink
29635

1.942,00 EUR
Show product

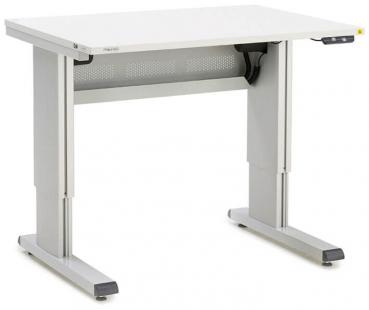

The image shows an adjustable-height desk with a white surface and silver legs. The tabletop is smooth, and there are control buttons on one side for height adjustment.
Preview: ESD Work table WB / electronic adjustment 800 x 1073 mm
Preview: Image
Preview: Image
Preview: Image
Preview: Image
ESD Work table WB / electronic adjustment...
Work table WB 811 EL ESD
Plate size: 800 x 1073 mm,
load capacity 200 kg,
Height adjustment 700-1100 mm / electric motor
incl. cable tray WBCT 180
dpvlink
6776

2.658,35 EUR
Show product
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 258
Complete Catalog 2023 - 2024
Configurators:
Treston Configurator

Product Family

Shelf ALH for series QuatreX / WB

Additional shelf for Treston worktables for storing drawer boxes, utensils or boxes. When fitted above the table top, the shelf is attached to the extension profiles or upright tube modules of the work tables. These must be ordered separately.

  • Height adjustable

Article image
Article description
Depth
suitable for system
suitable for module
Price
Compare
ALH-150ESD - Shelf ALH-150 ESD
ALH-150ESD
Shelf ALH-150 ESD
310 mm
QuatreX, WB
AL2X150W
350,55 EUR
ALH-180ESD - Shelf ALH-180 ESD
ALH-180ESD
Shelf ALH-180 ESD
310 mm
QuatreX, WB
AL2X180W
364,95 EUR
ALH-110ESD - Shelf ALH-110 ESD
ALH-110ESD
Shelf ALH-110 ESD
310 mm
QuatreX, WB
AL2X110W
293,65 EUR
