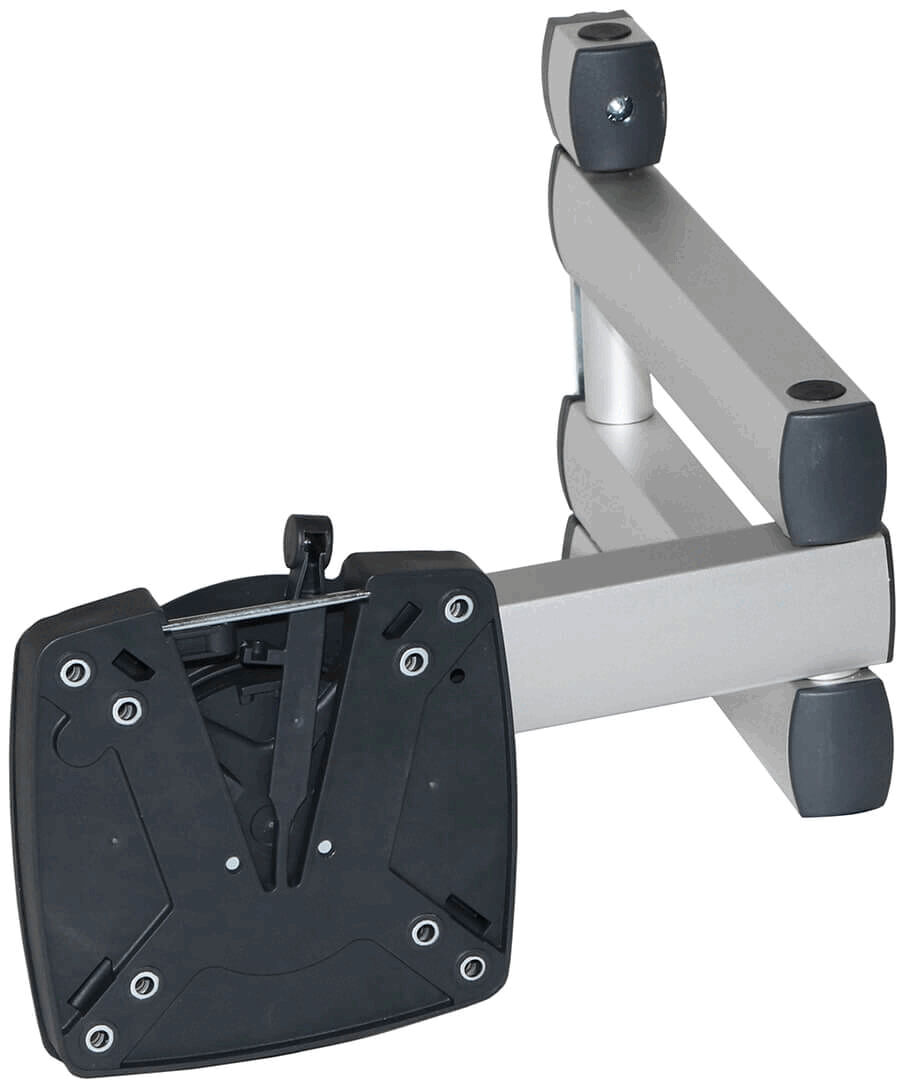

The image shows a mountable monitor arm. It consists of a sturdy, silver metal arm with a square, black bracket. The arm is swivelable and allows for flexible screen positioning.
Swivel arm MA2 for flat screens
(Product No.: MA2)
The image shows a mountable monitor arm. It consists of a sturdy, silver metal arm with a square, black bracket. The arm is swivelable and allows for flexible screen positioning.
Notice

Swivel arm MA2 for flat screens

Swivel arm MA2 for flat screens

dpvlink:
18575
Load capacity :
15 kg
Properties:
Further product information

Delivery time! Delivery time!
306,75 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

Swivel arm MA2 for flat screens

The MA2 flat screen swivel arm from Treston offers an optimal solution for flexible positioning of monitors at workstations. This swivel arm is equipped with a universal quick-release mount that is compatible with the VESA 75 and VESA 100 standard mounts, making it suitable for all common flat screens. The arm has two extensions and allows for 180° swiveling, with a reach from 95 to 425 mm from the mounting profile.
The installation of the swivel arm requires the AS2 adapter set to attach it to the grid tubes and C-profiles of the Treston workbenches in the TPH/TPB series, as well as to the grid tube profile of the Concept, TP, TED, and Workshop table series. The MA2 swivel arm can support loads up to 15 kg and is available in light gray. Please note that this swivel arm is not ESD-safe.
Load capacity
Load capacity
15 kg
Color
Color
light grey
ESD
ESD
no
Version
Version
swivelling
