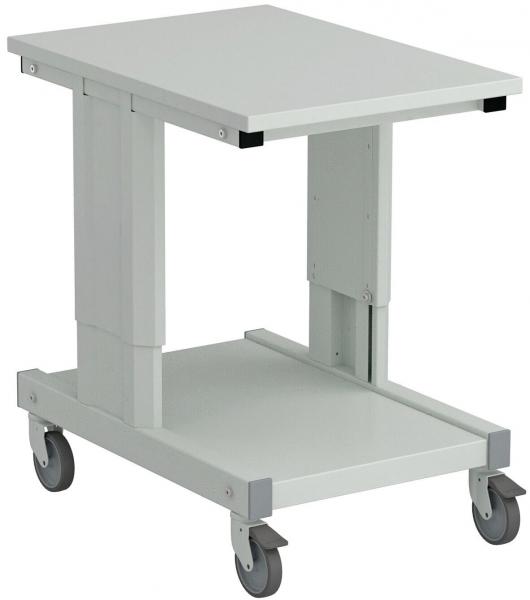

The image shows a small, mobile table on wheels. It has a rectangular tabletop and a lower shelf. The color is light gray-white, and it has a simple, modern shape.
Concept trolley ESD 500 x 700 mm
(Product No.: CONT705-49)

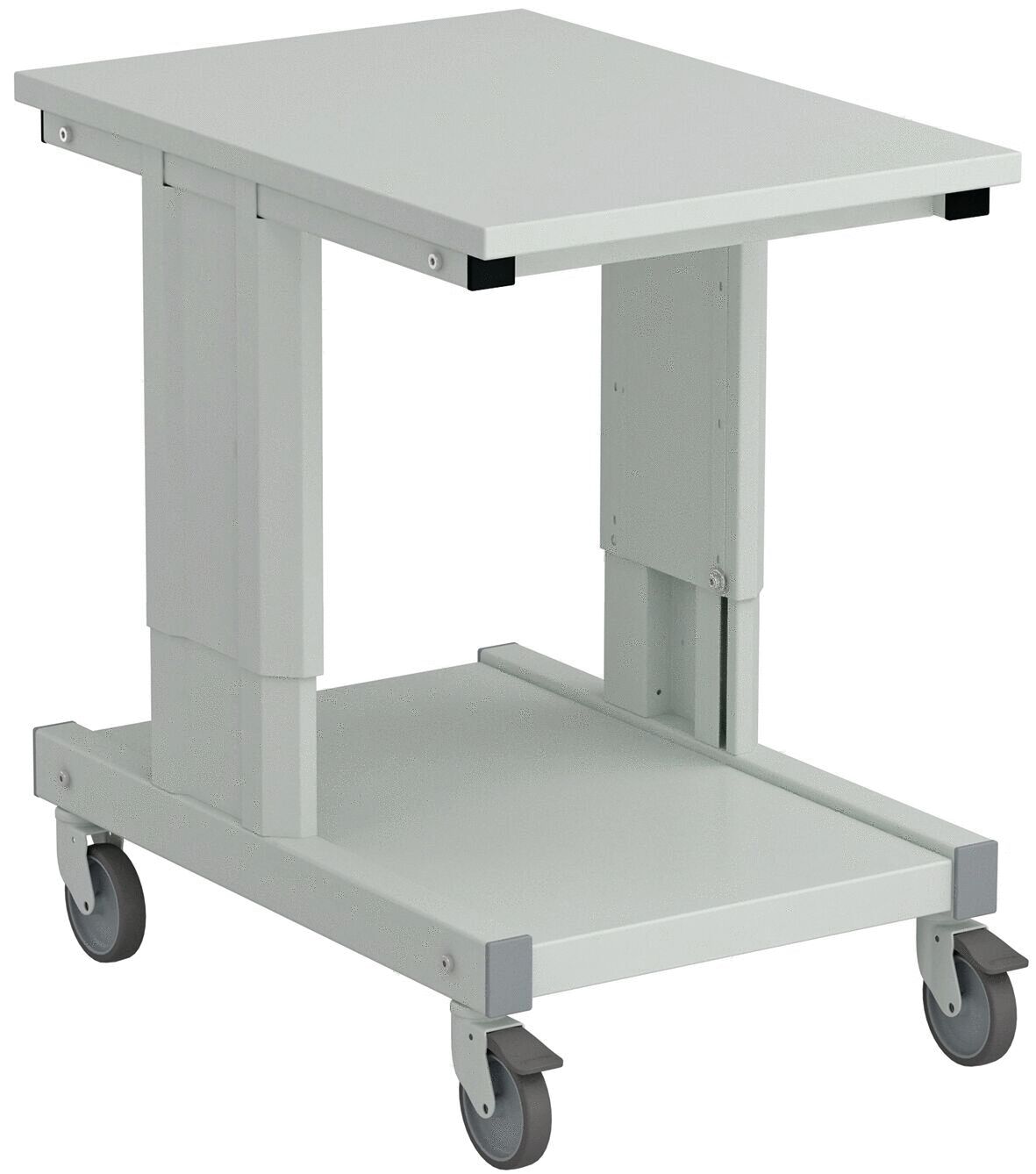

The image shows a small, mobile table on wheels. It has a rectangular tabletop and a lower shelf. The color is light gray-white, and it has a simple, modern shape.
Notice / Inquire

Concept trolley ESD 500 x 700 mm

Concept trolley ESD 500 x 700 mm

dpvlink:
25243
Height :
650 - 900 mm
Load capacity :
150 kg
Properties:
Further product information

Delivery time! Delivery time!
696,20 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

Concept trolley ESD 500 x 700 mm

The Concept Wagon ESD by Treston is an optimal addition for mobile work and storage areas, specifically designed to be used alongside Concept and WB workbenches. With a width of 500 mm and a depth of 700 mm, this wagon offers a compact, yet sufficient space for various work materials. The height of the wagon can be adjusted between 650 mm and 900 mm using Allen screws, allowing for an ergonomic working position.
The integrated base plate enhances stability, while the load capacity of up to 150 kg safely supports heavier loads. The wagon is ESD-safe and maintained in a light gray color, making it ideal for use in ESD-sensitive environments. Additionally, the wagon can be expanded with extra shelf boards or a drawer unit from the Series 30 as needed, enabling flexible use.
Height
Height
650 - 900 mm
Load capacity
Load capacity
150 kg
Color
Color
light grey
Tabletop dimensions
Tabletop dimensions
700 x 500 mm
Material
Material
steel / low pressure laminate
Surface
Surface
Epoxy powder-coated
ESD
ESD
yes
Version
Version
height-adjustble, hex screws
suitable for system
suitable for system
Concept, WB
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 253
Complete Catalog 2023 - 2024

Product Family

Concept trolley ESD

Article image
Article description
Height
Load capacity
Price
Compare
CONT705-49 - Concept trolley ESD 500 x 700 mm
CONT705-49
Concept trolley ESD 500 x 700 mm
650 - 900 mm
150 kg
696,20 EUR
