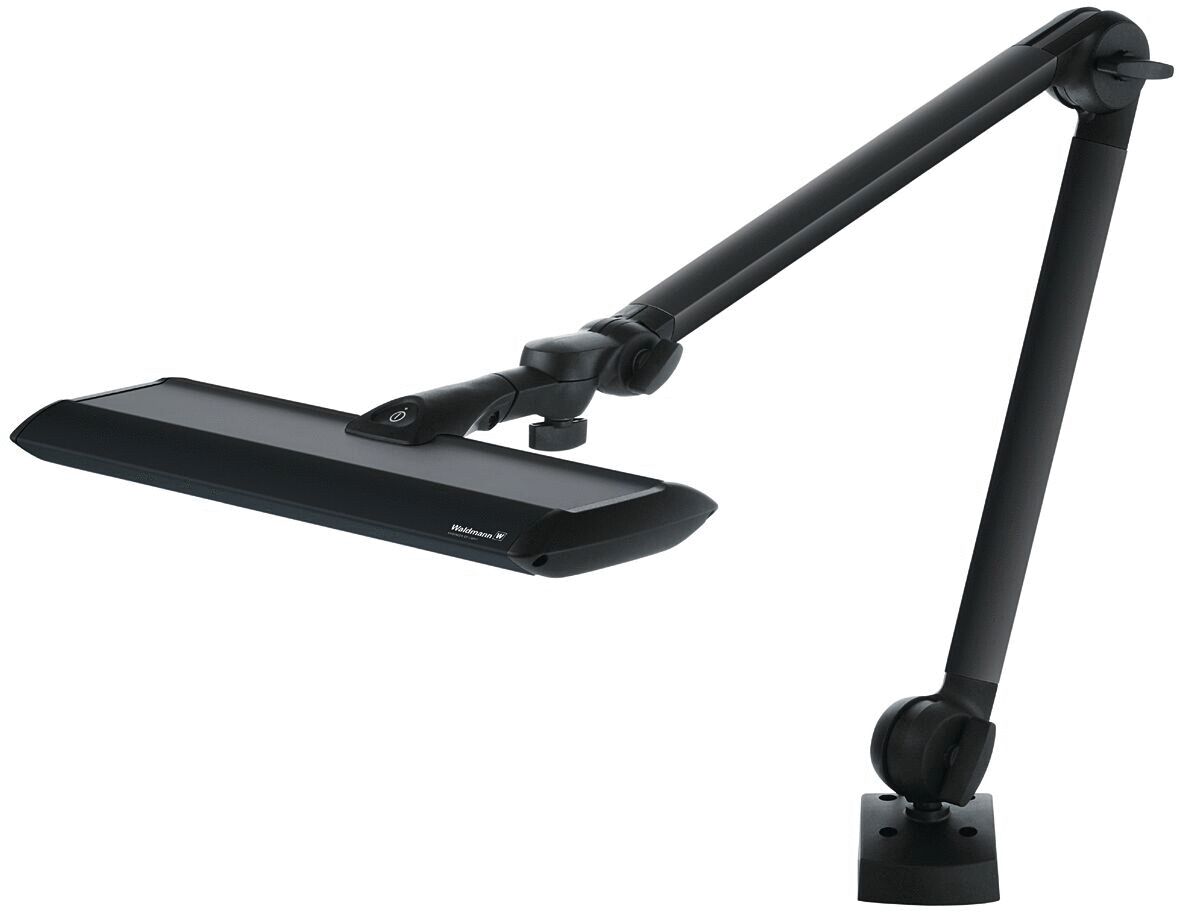

The image shows a black desk lamp with a flexible, flared arm. The lampshade is flat and elongated, mounted on a sturdy base.

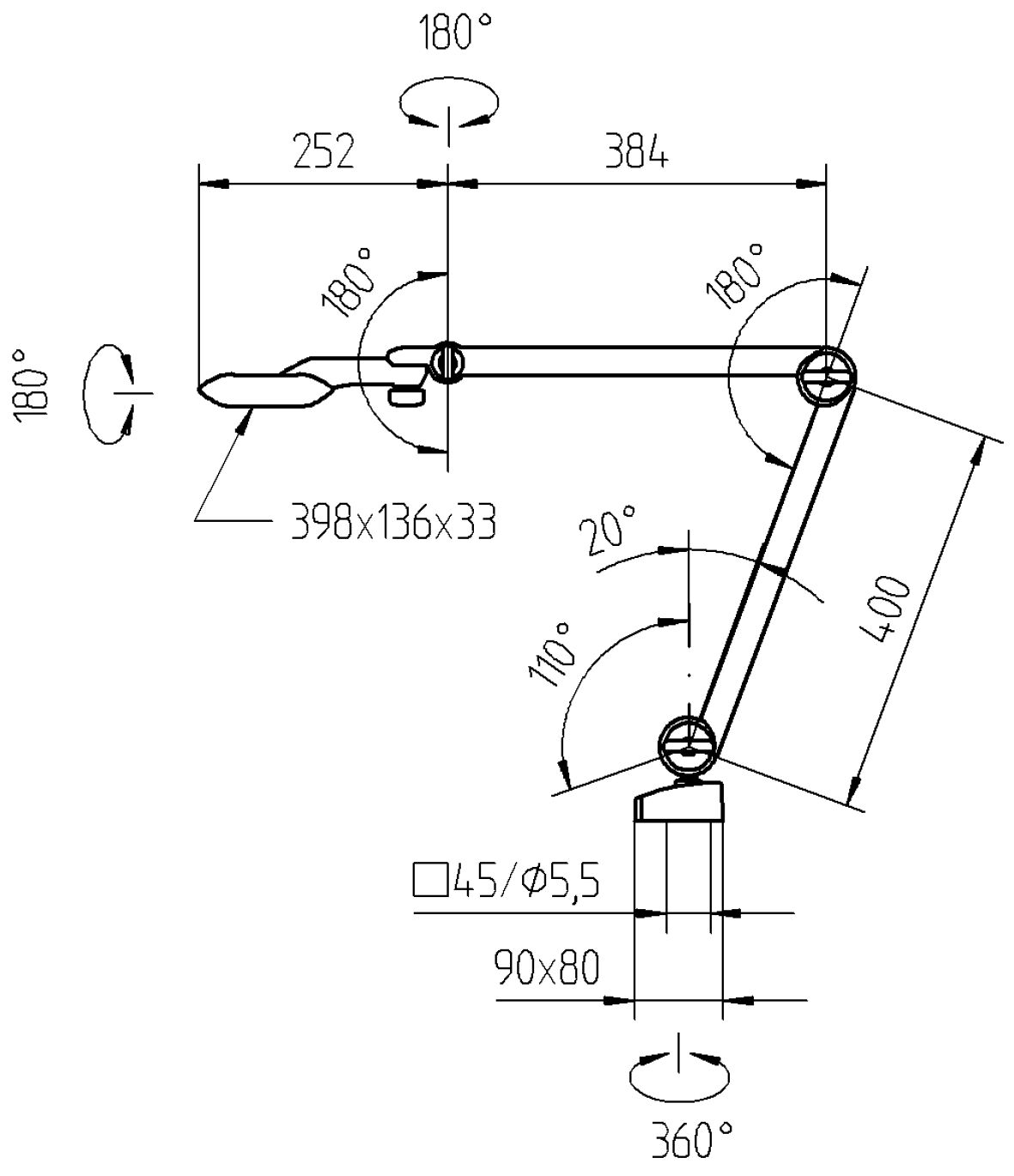

The image displays a technical drawing of an arm with joints that can move at various angles. Dimensions and angles are clearly indicated to illustrate the range of motion.
Preview: The image shows a black desk lamp with a flexible, flared arm. The lampshade is flat and elongated, mounted on a sturdy base.
Preview: The image displays a technical drawing of an arm with joints that can move at various angles. Dimensions and angles are clearly indicated to illustrate the range of motion.
LED universal light TANEO TND 1400/940-ESD, 4,000 K
(Product No.: 704.TND-1400/940-ESD)
The image shows a black desk lamp with a flexible, flared arm. The lampshade is flat and elongated, mounted on a sturdy base.

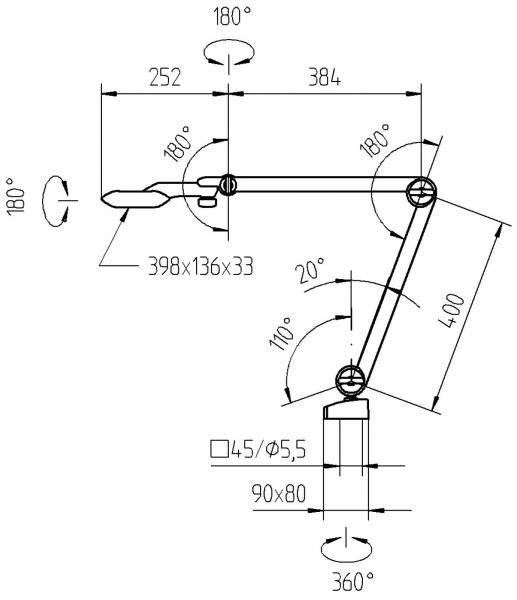

The image displays a technical drawing of an arm with joints that can move at various angles. Dimensions and angles are clearly indicated to illustrate the range of motion.
Mobile Preview: The image shows a black desk lamp with a flexible, flared arm. The lampshade is flat and elongated, mounted on a sturdy base.
Mobile Preview: The image displays a technical drawing of an arm with joints that can move at various angles. Dimensions and angles are clearly indicated to illustrate the range of motion.
Notice / Inquire

LED universal light TANEO TND 1400/940-ESD, 4,000 K

LED universal light TANEO TND 1400/940-ESD, 4,000 K

dpvlink:
17461
Color temperature:
4,000 K
Color:
black
Power [W]:
23 W
Properties:
Further product information

Delivery time! Delivery time!
710,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

LED universal light TANEO TND 1400/940-ESD, 4,000 K

The LED universal light TANEO TND 1400/940-ESD by Waldmann is specifically designed for demanding work environments and provides an optimal lighting solution. With a color temperature of 4,000 K and a luminous flux of 1500 lumens, this light offers excellent light quality in neutral white, which is particularly suitable for manufacturing, assembly, quality assurance, and analysis.
The light is characterized by its ESD safety and an ergonomic design with a spring-balanced jointed arm of 384/400 mm length, which includes a flexible 3D head joint. The integrated membrane switch in the light head allows for continuous dimming and easy on and off switching.
Additionally, the TANEO features glare reduction through a cone prism diffuser and is equipped with a 23-watt LED module. The light is available in black, has a width of 398 to 136 mm, a depth of 636 mm, and a weight of 1900 g. The 3.4-meter-long power cable and a beam angle of 75 degrees complete the technical specifications, making this light a universally applicable and efficient light source.
Color temperature
Color temperature
4,000 K
Color
Color
black
Power [W]
Power [W]
23 W
Power cable length
Power cable length
3.4 m
Voltage
Voltage
100 - 240 V
Depth
Depth
636 mm
Swivel arm/frame
Swivel arm/frame
384 / 400 mm
Width
Width
398 - 136 mm
Beam angle
Beam angle
75 °
Illuminant
Illuminant
LED
Luminous color
Luminous color
neutral white
Luminous flux
Luminous flux
1500 Lumen
ESD
ESD
yes
Weight
Weight
1900 g
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a black C-clamp. It has a square top surface, a vertical bar, and a bottom surface with a screw for tightening.
Table clamp TK 1 / 65, 0-65 mm
Table clamp TK 1 / 65, clmaping width 0-65 mm
(for all Waldmann magnifier lamps)
dpvlink
3059

25,55 EUR
The image shows a black C-clamp. It has a square top surface, a vertical bar, and a bottom surface with a screw for tightening.
Table clamp TK 1/65-ESD, 0-65 mm
Table clamp TK 1/65-ESD, clamping width 0-65 mm
Color: black
(for all Waldmann magnifier lamps)
dpvlink
3059

61,75 EUR
The image shows a black C-clamp. It has a square top surface, a vertical bar, and a bottom surface with a screw for tightening.
Table clamp TK 1 / 135, 65-135 mm
Table clamp TK 1 / 135, clamping width 65 - 135 mm
(for FLG 118, SNL 319, 136 ST, STE 136)
dpvlink
3059

28,45 EUR
The image shows a black C-clamp. It has a square top surface, a vertical bar, and a bottom surface with a screw for tightening.
Table clamp TK 1 / 165, 95-165 mm
Table clamp TK 1 / 165, clamping width 95-165 mm
(for FLG 118, SNL 319, 136 ST, STE 136)
dpvlink
3059

31,85 EUR
The image shows a round magnifying glass with a black plastic handle. The handle has a clip to attach the magnifying glass. The lens is transparent and magnifies objects.
Attachable lens for universal lamp Taneo
Clip-on magnifier TANEO, 3.5 diopter =x1.75
Lens diameter 132 mm
suitable for TANEO universal lamp
dpvlink
3059

141,00 EUR
The image shows a gray bracket with a curved top and several holes. It has a black mounting surface with additional holes for attachment.
Wall bracket for TANEO, TEVISIO and SNLQ
Wall bracket for TANEO, TEVISIO and SNLQ
Color: black
dpvlink
3059

33,65 EUR
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 541
Complete Catalog 2023 - 2024

Product Family

LED universal light TANEO STZL 24

With its application-specific light output, high light quality and ergonomic handling, the TANEO LED universal lamp ensures optimum working conditions and can be adapted to individual and activity-related requirements like no other. Be it in production, assembly, quality assurance or analysis: TANEO is a true all-rounder

  • Color temperature neutral white 4,000 K or 5,000 K
  • Glare control with conical prism screen (CDP)
  • Spring-relieved arm with 3D head joint
  • Membrane switch in the luminaire head for on / off and dimming (stepless)
  • 1500 lumens
  • Articulated arm/arm length: 384/400 mm


Article image
Article description
Color temperature
Color
Power [W]
Price
Compare
704.TND-1400/940-ESD - LED universal light TANEO TND 1400/940-ESD, 4,000 K
704.TND-1400/940-ESD
LED universal light TANEO TND 1400/940-ESD, 4,000 K
4,000 K
black
23 W
710,00 EUR
704.TND-1400/950-ESD - LED universal light TANEO TND 1400/950-ESD, 5,000 K
704.TND-1400/950-ESD
LED universal light TANEO TND 1400/950-ESD, 5,000 K
5,000 K
black
23 W
710,00 EUR
704.TND-1400/940 - LED universal light TANEO TND 1400/940, 4.000 K
704.TND-1400/940
LED universal light TANEO TND 1400/940, 4.000 K
4,000 K
aluminum anodized / black
24 W
558,00 EUR
704.TND-1400/950 - LED universal light TND 1400/950/D, 5,000 K
704.TND-1400/950
LED universal light TND 1400/950/D, 5,000 K
5000 K
aluminum anodized
23 W
558,00 EUR
