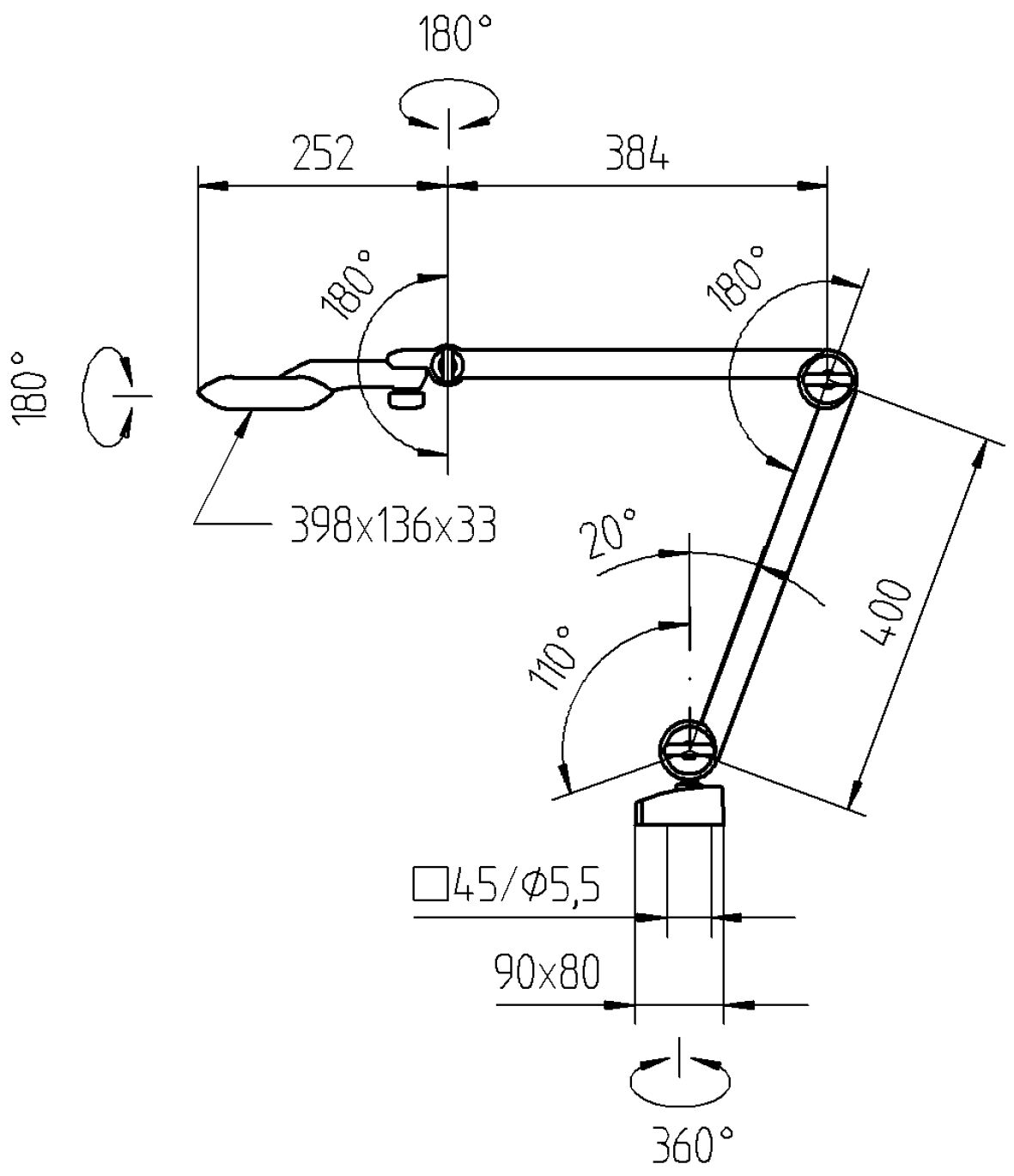

The image shows a technical drawing of an articulated arm with joints. It has various dimensions, a maximum deflection, and a rotating base, ideal for flexible applications.
Preview: The image shows a black desk lamp with a flexible, flared arm. The lampshade is flat and elongated, mounted on a sturdy base.
Preview: The image shows a technical drawing of an articulated arm with joints. It has various dimensions, a maximum deflection, and a rotating base, ideal for flexible applications.
LED universal light TANEO TND 1400/950-ESD, 5,000 K
(Product No.: 704.TND-1400/950-ESD)
The image shows a black desk lamp with a flexible, flared arm. The lampshade is flat and elongated, mounted on a sturdy base.
The image shows a technical drawing of an articulated arm with joints. It has various dimensions, a maximum deflection, and a rotating base, ideal for flexible applications.
Mobile Preview: The image shows a black desk lamp with a flexible, flared arm. The lampshade is flat and elongated, mounted on a sturdy base.
Mobile Preview: The image shows a technical drawing of an articulated arm with joints. It has various dimensions, a maximum deflection, and a rotating base, ideal for flexible applications.
Notice / Inquire

LED universal light TANEO TND 1400/950-ESD, 5,000 K

LED universal light TANEO TND 1400/950-ESD, 5,000 K

dpvlink:
17461
Color temperature:
5,000 K
Color:
black
Power [W]:
23 W
Properties:
Further product information

available available
710,00 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

LED universal light TANEO TND 1400/950-ESD, 5,000 K

The LED universal light TANEO TND 1400/950-ESD from Waldmann provides an optimal lighting solution for work environments such as manufacturing, assembly, quality assurance, and analysis. This model is distinguished by its high light quality with a luminous flux of 1500 lumens and a neutral white color temperature of 5,000 K. The light is specifically designed for ESD-protected areas and supports stepless dimming via a foil button on the light head.
The glare reduction is achieved through a cone prism screen, and the spring-relieved armature with a 3D head joint allows for flexible positioning. The total length of the articulated arm is 384 mm, while the armature measures 400 mm. The light has a width of 398 mm, a depth of 636 mm, and a weight of 1900 g. It is designed for voltages of 100 to 240 V and has a 3.4 m long power cable.
The robust black design and the beam angle of 75° round off the technical specifications, making the TANEO TND 1400/950-ESD a versatile and efficient lighting option.
Color temperature
Color temperature
5,000 K
Color
Color
black
Power [W]
Power [W]
23 W
Power cable length
Power cable length
3.4 m
Voltage
Voltage
100 - 240 V
Depth
Depth
636 mm
Swivel arm/frame
Swivel arm/frame
384 / 400 mm
Width
Width
398 - 136 mm
Beam angle
Beam angle
75 °
Illuminant
Illuminant
LED
Luminous color
Luminous color
neutral white
Luminous flux
Luminous flux
1500 Lumen
ESD
ESD
yes
Weight
Weight
1900 g
Show accessories
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Accessories

Accessories

The image shows a black C-clamp. It has a square top surface, a vertical bar, and a bottom surface with a screw for tightening.
Table clamp TK 1 / 65, 0-65 mm
Table clamp TK 1 / 65, clmaping width 0-65 mm
(for all Waldmann magnifier lamps)
dpvlink
3059

25,55 EUR
The image shows a black C-clamp. It has a square top surface, a vertical bar, and a bottom surface with a screw for tightening.
Table clamp TK 1/65-ESD, 0-65 mm
Table clamp TK 1/65-ESD, clamping width 0-65 mm
Color: black
(for all Waldmann magnifier lamps)
dpvlink
3059

61,75 EUR
The image shows a black C-clamp. It has a square top surface, a vertical bar, and a bottom surface with a screw for tightening.
Table clamp TK 1 / 135, 65-135 mm
Table clamp TK 1 / 135, clamping width 65 - 135 mm
(for FLG 118, SNL 319, 136 ST, STE 136)
dpvlink
3059

28,45 EUR
The image shows a black C-clamp. It has a square top surface, a vertical bar, and a bottom surface with a screw for tightening.
Table clamp TK 1 / 165, 95-165 mm
Table clamp TK 1 / 165, clamping width 95-165 mm
(for FLG 118, SNL 319, 136 ST, STE 136)
dpvlink
3059

31,85 EUR
The image shows a round magnifying glass with a black plastic handle. The handle has a clip to attach the magnifying glass. The lens is transparent and magnifies objects.
Attachable lens for universal lamp Taneo
Clip-on magnifier TANEO, 3.5 diopter =x1.75
Lens diameter 132 mm
suitable for TANEO universal lamp
dpvlink
3059

141,00 EUR
The image shows a gray bracket with a curved top and several holes. It has a black mounting surface with additional holes for attachment.
Wall bracket for TANEO, TEVISIO and SNLQ
Wall bracket for TANEO, TEVISIO and SNLQ
Color: black
dpvlink
3059

33,65 EUR
Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 541
Complete Catalog 2023 - 2024

Product Family

LED universal light TANEO STZL 24

With its application-specific light output, high light quality and ergonomic handling, the TANEO LED universal lamp ensures optimum working conditions and can be adapted to individual and activity-related requirements like no other. Be it in production, assembly, quality assurance or analysis: TANEO is a true all-rounder

  • Color temperature neutral white 4,000 K or 5,000 K
  • Glare control with conical prism screen (CDP)
  • Spring-relieved arm with 3D head joint
  • Membrane switch in the luminaire head for on / off and dimming (stepless)
  • 1500 lumens
  • Articulated arm/arm length: 384/400 mm
