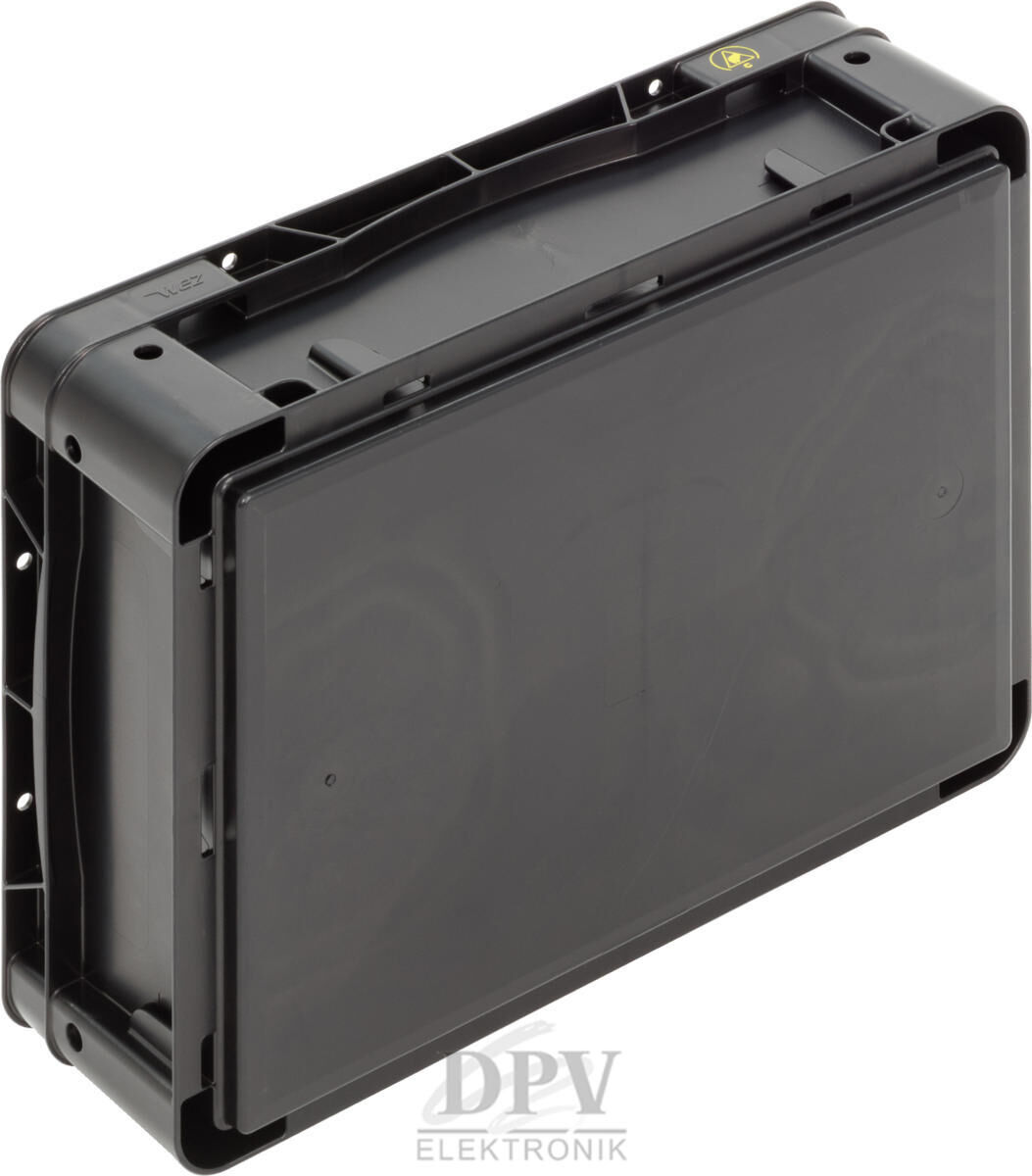

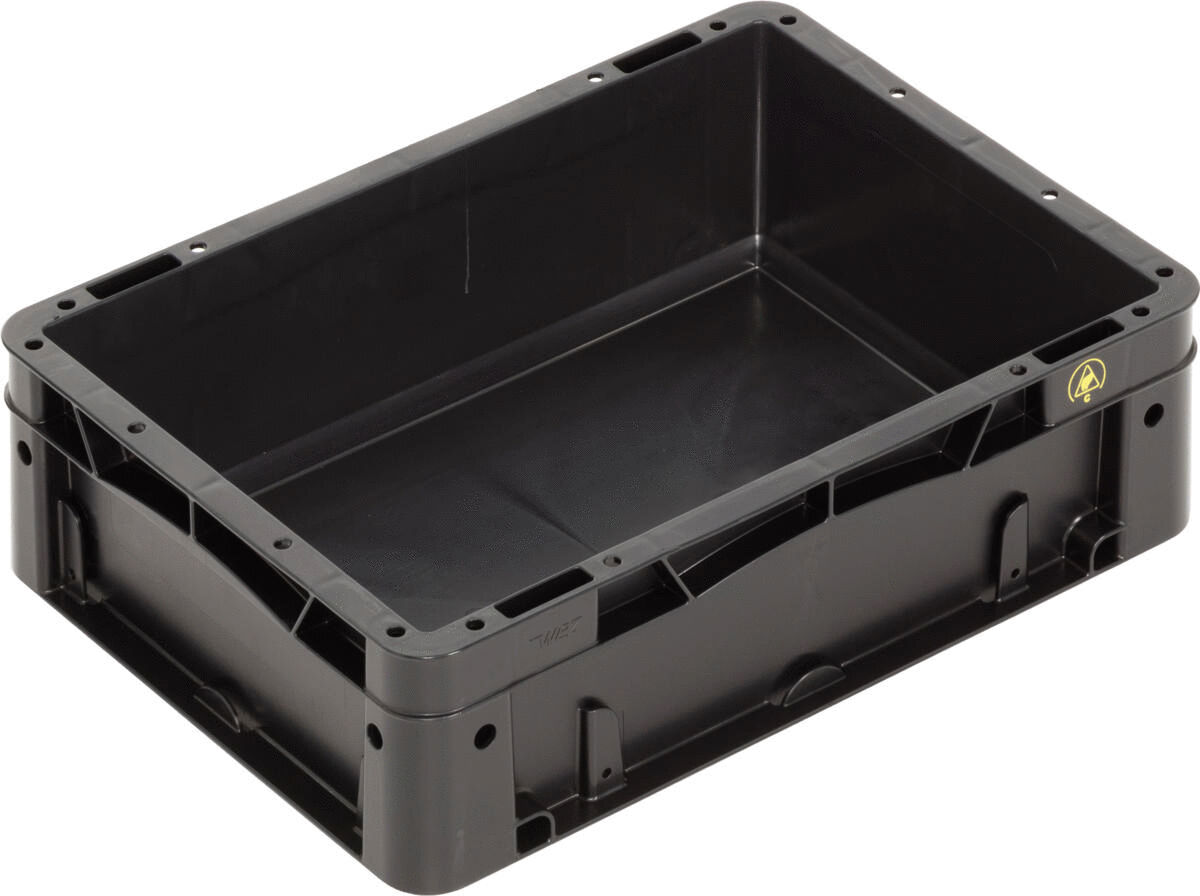

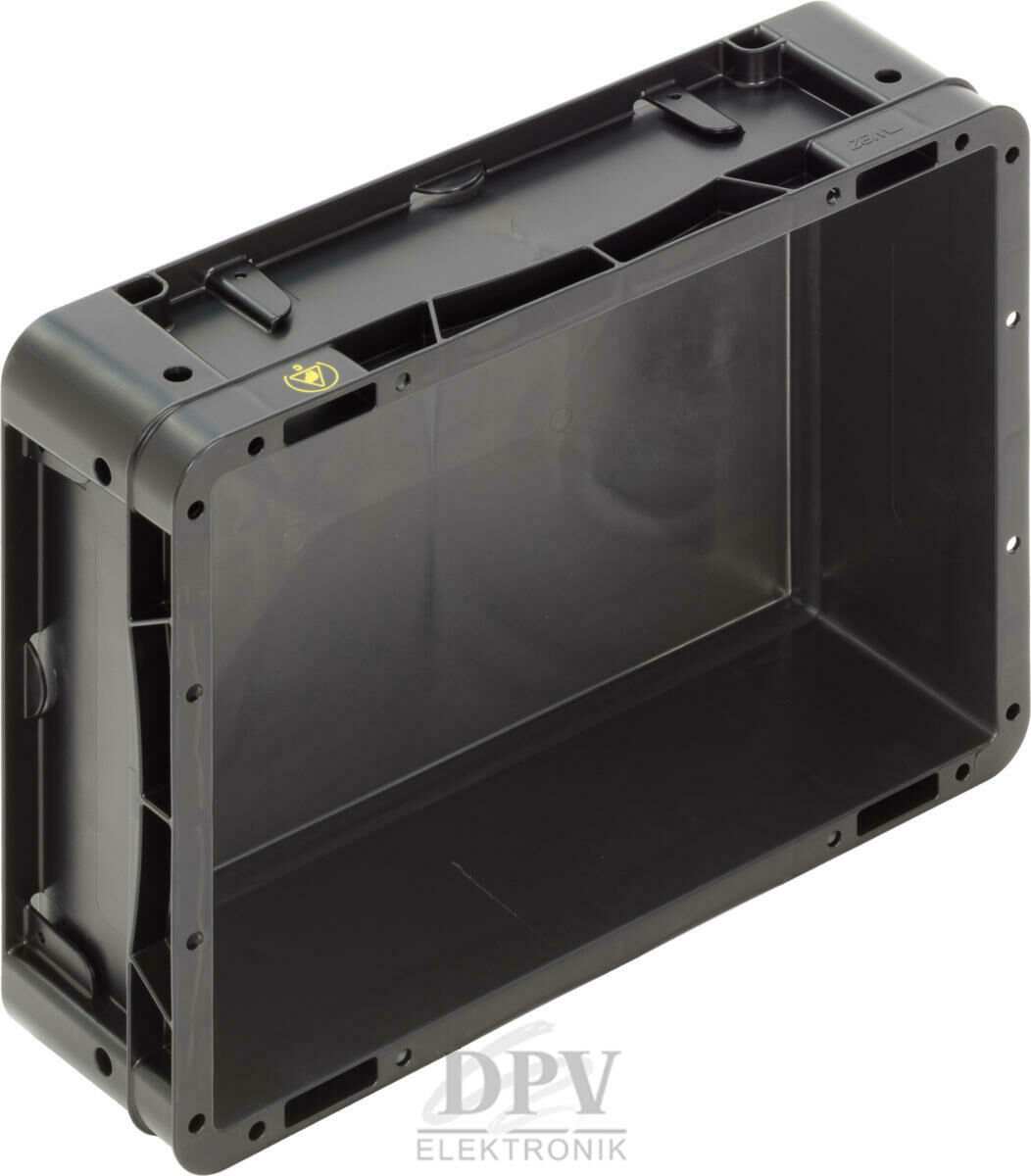

WEZ Euro container Futura ESD 400 x 300 x 120 mm
The WEZ Euro container Futura ESD, measuring 400 x 300 x 120 mm, is an innovative solution for the safe handling of electronic components, both manually and mechanically. Made from electrostatically conductive polypropylene, this container meets the ESD standard DIN EN 61340-5-1, making it ideal for use in ESD-protected areas (EPA).
The external dimensions are 400 x 300 x 120 mm, while the internal dimensions are 355 x 255 x 110 mm, allowing for optimal use of the 10.9-liter volume. The container is stackable and 100% compatible with other products from the WEZ ranges.
The design includes shell handles for easy handling, integrated label slots for A4 width on all four sides, and handling ribs for better centering. The container's load capacity is 15 kg, and thanks to its flat bottom with ramped edges and openings in the upper rim areas, it is also suitable for mechanical handling with standard gripping and lifting devices.
This product is manufactured by WEZ and belongs to the BLACKLINE® series, which is distinguished by its ability to protect sensitive electronic components during storage and transport.
The external dimensions are 400 x 300 x 120 mm, while the internal dimensions are 355 x 255 x 110 mm, allowing for optimal use of the 10.9-liter volume. The container is stackable and 100% compatible with other products from the WEZ ranges.
The design includes shell handles for easy handling, integrated label slots for A4 width on all four sides, and handling ribs for better centering. The container's load capacity is 15 kg, and thanks to its flat bottom with ramped edges and openings in the upper rim areas, it is also suitable for mechanical handling with standard gripping and lifting devices.
This product is manufactured by WEZ and belongs to the BLACKLINE® series, which is distinguished by its ability to protect sensitive electronic components during storage and transport.
Details
- Material Material
- polypropylene
- Stackable Stackable
- yes
- Conductivity Conductivity
- volume conductive
- Color Color
- black
- Height [mm] Height [mm]
- 120 mm
- Internal height
- 110 mm
- Internal length
- 355 mm
- Internal width Internal width
- 255 mm
- Length [mm] Length [mm]
- 400 mm
- Width [mm] Width [mm]
- 300 mm
- Surface resistance Rs Surface resistance Rs
- 104 Ω
- Volume Volume
- 10.9 l
- Load capacity Load capacity
- 15 kg
Show accessories
WEZ - knowhow and experience
WEZ combines 50 years of experience in the field of plastic injection molding with up-to-date knowhow. Plastic compatible solutions, a cost-effective production and individual services about our products are the target for the product development of the BLACKLINE® range.
BLACKLINE® - Safety for electronic components
WEZ BLACKLINE® protects sensitive electronic components in the EPA, in the storage and during the transport. The system offers a guarantee for a ESD safe handling as well in the conductive as in the dissipative areas.
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Accessories
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Article image
Article description
Dimensions outside
inside LxWxH [mm]
Material
Stackable
Conductivity
Price
Compare
400 x 300 x 120
355 x 255 x 110
polypropylene
yes
volume conductive
400 x 300 x 175
355 x 255 x 165
polypropylene
yes
volume conductive
600 x 400 x 120
555 x 355 x 110
polypropylene
yes
volume conductive
600 x 400 x 175
555 x 355 x 165
polypropylene
yes
volume conductive
