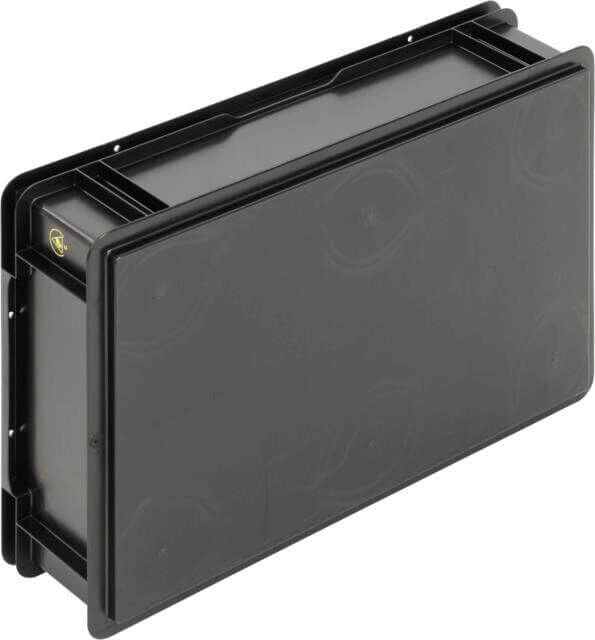

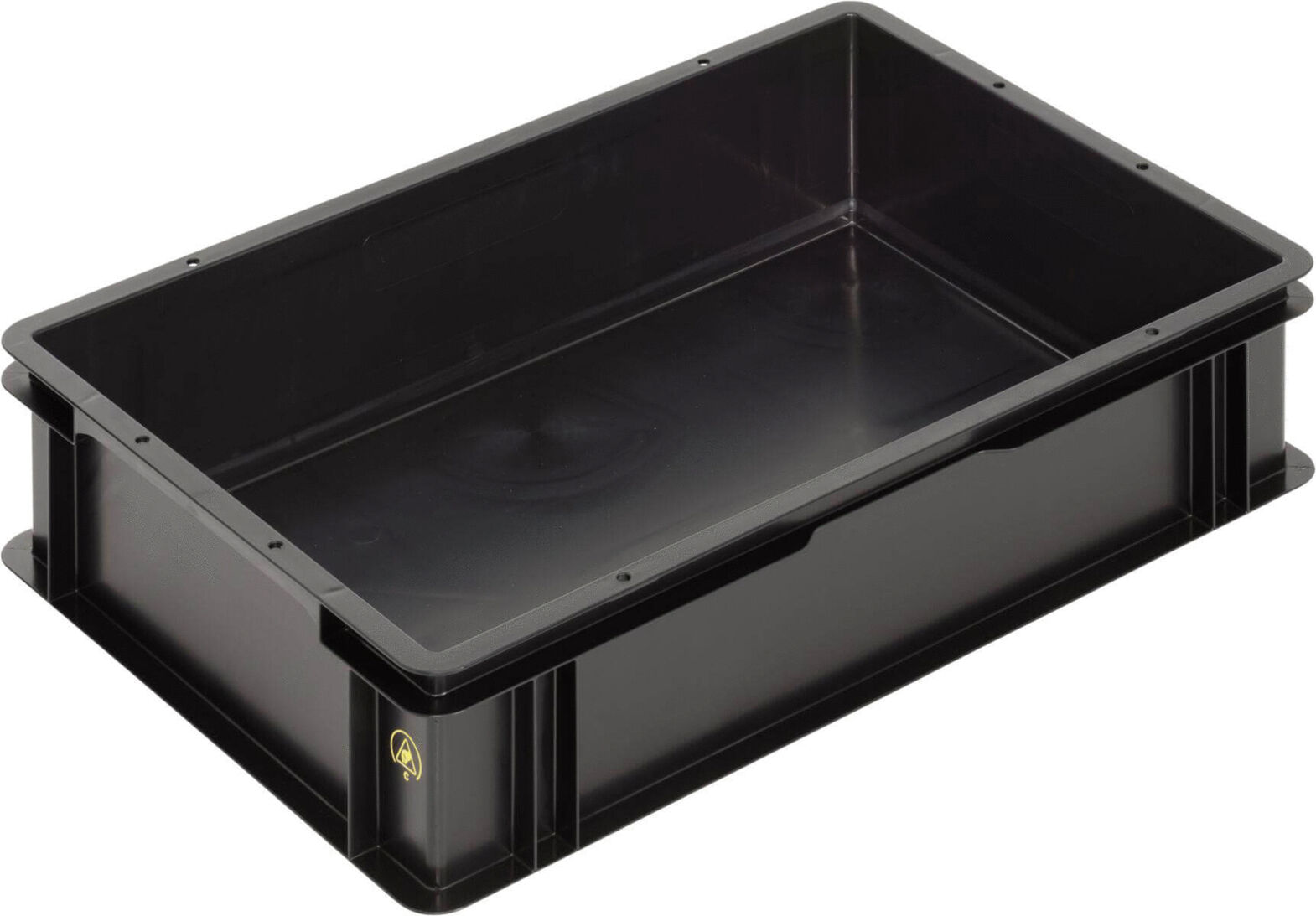

WEZ Euro container light ESD 600 x 400 x 145 mm, flat base

(Product No.: 6413.097.992)

(Product No.: 6413.097.992)

WEZ Euro container light ESD 600 x 400 x 145 mm, flat base

Name: WEZ Euro container light ESD 600 x 400 x 145 mm, flat base
SKU: 6413.097.992
Price: 15.80 EUR
Availability: InStock

ArticleNo: 6413.097.992

dpvlink:

831

Tags:

Additional:

light

Dimensions outside:

600 x 400 x 145

inside LxWxH [mm]:

554 x 354 x 141

Material:

polypropylene

Conductivity:

volume conductive

Further product information

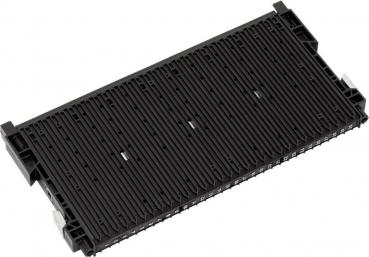

Parting Inserts
Configure now

Imprinting / Printing for boxes
Configure now

Interlayers
Configure now

Shipping time:
available

available

15,80 EUR
15,80 EUR per PCE

PCE:

Compare

Notice

Product Info

WEZ Euro Container light ESD 600 x 400 x 145 mm, flat bottom The WEZ Euro Container light ESD 600 x 400 x 145 mm with a flat bottom combines functionality and material innovation for the safe handling of electronic components. Made from electrostatically conductive polypropylene, this container meets the ESD standard DIN EN 61340-5-1 and the IEC standard. It is ideal for smooth transport on conveyor systems such as roller conveyors and ball tables, and its stackable design maximizes storage and transport efficiency. Technical specifications: - External dimensions: 600 x 400 x 145 mm - Internal dimensions: 554 x 354 x 141 mm - Material: Polypropylene - Conductivity: volume conductive - Surface resistance: 10^4 Ω - Color: Black - Load capacity: 10 kg - Volume: 26.2 liters - Stackable: Yes This light version is distinguished by its lightness and robustness, making it particularly suitable for use in ESD-protected areas (EPA). Item number: 6413.097.992

Details

Additional Additional: light
Material Material: polypropylene
Conductivity Conductivity: volume conductive
Color Color: black
Height [mm] Height [mm]: 145
Internal height Internal height: 141
Internal length Internal length: 554
Internal width Internal width: 354
Length [mm] Length [mm]: 600
Width [mm] Width [mm]: 400
Surface resistance Rs Surface resistance Rs: 10⁴ Ω
Stackable Stackable: yes
Volume Volume: 26.2 l
Load capacity Load capacity: 10 kg

Show accessories

Common

WEZ - knowhow and experience

WEZ combines 50 years of experience in the field of plastic injection molding with up-to-date knowhow. Plastic compatible solutions, a cost-effective production and individual services about our products are the target for the product development of the BLACKLINE® range.

BLACKLINE® - Safety for electronic components

WEZ BLACKLINE® protects sensitive electronic components in the EPA, in the storage and during the transport. The system offers a guarantee for a ESD safe handling as well in the conductive as in the dissipative areas.

Accessories

Label holder, transparent 102 x 65 mm for...

Label holder outside 102 x 65 mm /
inside 90 x 52 mm self-adhesive

Article image	Article description	Dimensions outside	inside DxWxH	Material	Conductivity	Additional	Price
	6420.007.992 WEZ Euro container ESD 600 x 400 x 212 mm, flat base	600 x 400 x 212	554 x 354 x 208	polypropylene	volume conductive		27,55 EUR
	6426.007.992 WEZ Euro container ESD 600 x 400 x 278 mm, flat base	600 x 400 x 278	554 x 354 x 273	polypropylene	volume conductive		28,70 EUR
	6440.007.992 WEZ Euro container ESD 600 x 400 x 412 mm, flat base	600 x 400 x 412	554 x 354 x 407	polypropylene	volume conductive		41,65 EUR
	4304.007.992 WEZ Euro container ESD 400 x 300 x 53 mm, flat base	400 x 300 x 53	354 x 254 x 49	polypropylene	volume conductive		9,05 EUR
	6413.007.992 WEZ Euro container ESD 600 x 400 x 145 mm, flat base	600 x 400 x 145	554 x 354 x 141	polypropylene	volume conductive		21,35 EUR
	4320.007.992 WEZ Euro container ESD 400 x 300 x 212 mm, flat base	400 x 300 x 212	354 x 254 x 208	polypropylene	volume conductive		15,50 EUR
	4308.907.992 WEZ Euro container ESD 400 x 300 x 100 mm, flat base	400 x 300 x 101	354 x 254 x 96	polypropylene	volume conductive		11,30 EUR
	6408.007.992 WEZ Euro container ESD 600 x 400 x 100 mm, flat base	600 x 400 x 100	554 x 354 x 96	polypropylene	volume conductive		19,65 EUR
	4313.907.992 WEZ Euro container ESD 400 x 300 x 145 mm, flat base	400 x 300 x 145	354 x 254 x 141	polypropylene	volume conductive		11,90 EUR
	4332.007.992 WEZ Euro container ESD 400 x 300 x 320 mm, flat base	400 x 300 x 320	354 x 254 x 315	polypropylene	volume conductive		21,95 EUR
	3204.007.992 WEZ Euro container ESD 300 x 200 x 53 mm, flat base	300 x 200 x 53	260 x 160 x 51	polypropylene	volume conductive		5,10 EUR
	3208.007.992 WEZ Euro container ESD 300 x 200 x 100 mm, flat base	300 x 200 x 100	254 x 154 x 96	polypropylene	volume conductive		7,50 EUR
	4326.007.992 WEZ Euro container ESD 400 x 300 x 278 mm, flat base	400 x 300 x 278	354 x 254 x 274	polypropylene	volume conductive		19,35 EUR
	3213.007.992 WEZ Euro container ESD 300 x 200 x 145 mm, flat base	300 x 200 x 145	254 x 154 x 141	polypropylene	volume conductive		8,80 EUR
	6432.007.992 WEZ Euro container ESD 600 x 400 x 320 mm, flat base	600 x 400 x 320	554 x 354 x 314	polypropylene	volume conductive		29,50 EUR
	4313.097.992 WEZ Euro container light ESD 400 x 300 x 145 mm, flat base	400 x 300 x 145	354 x 254 x 141	polypropylene	volume conductive	light	10,60 EUR
	6413.097.992 WEZ Euro container light ESD 600 x 400 x 145 mm, flat base	600 x 400 x 145	554 x 354 x 141	polypropylene	volume conductive	light	15,80 EUR
	6404.007.992 WEZ Euro container ESD 600 x 400 x 56 mm, flat base	600 x 400 x 56	560 x 360 x 54	polypropylene	volume conductive		13,25 EUR
	2108.007.992 WEZ Euro container ESD 200 x 150 x 100 mm, flat base	200 x 150 x 100	155 x 106 x 97	polypropylene	volume conductive		5,67 EUR
