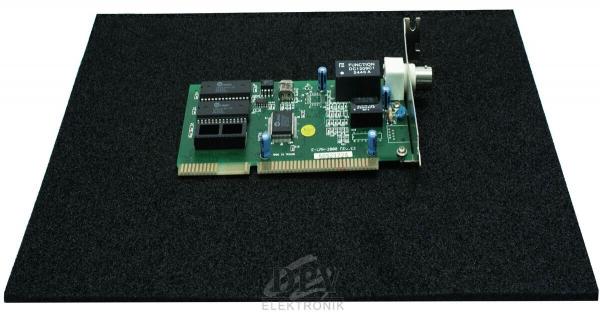

The image shows a green electronic circuit board on a dark background. The board has various components, including chips and a connector. There is a logo at the top right.
PE foam, dissipative 300x300x6 mm
(Product No.: 4550.06.0300)

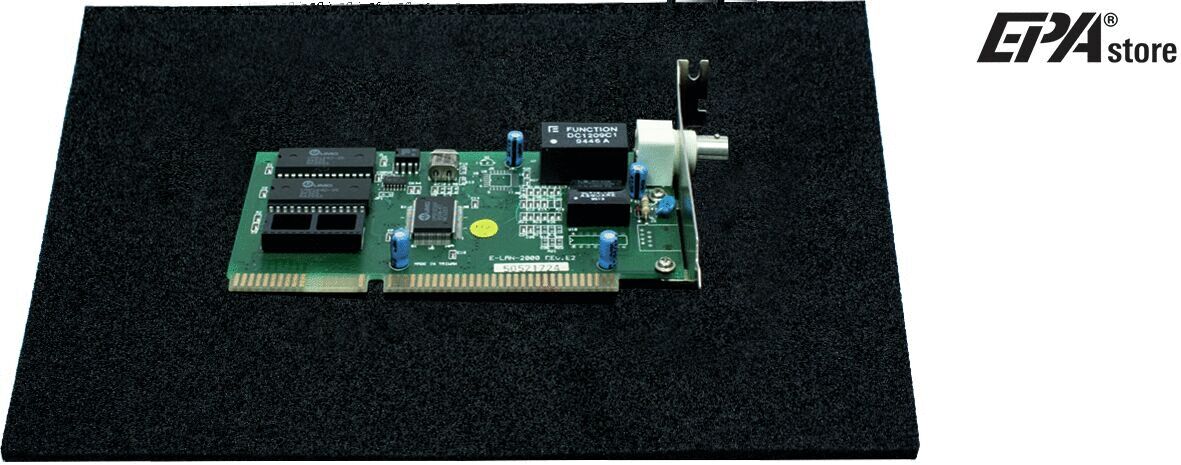

The image shows a green electronic circuit board on a dark background. The board has various components, including chips and a connector. There is a logo at the top right.
Notice

PE foam, dissipative 300x300x6 mm

PE foam, dissipative 300x300x6 mm

dpvlink:
700
Length :
300 mm
Width :
300 mm
Thickness :
6 mm
Properties:
Further product information

available available
1,96 EUR

excl. 19% tax

1 PCE
Compare Compare
Notice
Product Info

PE foam, dissipative 300x300x6 mm

This high-quality PE foam with dimensions of 300x300x6 mm is electrostatically dissipative and meets the ESD standard DIN EN 61340-5-1. The material is cross-linked, closed-cell, and offers a long lifespan due to its corrosion resistance and abrasion resistance. The black color of the foam highlights its practical application in various areas such as insert foam, interlayers, and partition walls for containers, as well as work surface mats.
The technical properties include a typical surface resistance of 10^5 to 10^7 Ohm. The side with skin shows a resistance of 10^5 to 10^6 Ohm, while the side without skin exhibits a resistance of 10^7 to 10^8 Ohm. The material polyethylene has a density of 46 kg/cm³ and can be used in a temperature range up to 90 °C.
This PE foam is a reliable choice for technical applications that require electrostatic dissipativity while also being robust and durable.
Length
Length
300 mm
Width
Width
300 mm
Thickness
Thickness
6 mm
Color
Color
black
Conductivity
Conductivity
dissipative
Volume resistance
Volume resistance
105 - 107 Ω
Material
Material
polyethylene
Material density
Material density
46 kg/cm³
Operating temperature
Operating temperature
90 °C
Pictograms
Material PE
Abrasion-resistant and corrosion-free, particularly low weight, thickness 3 mm / 6 mm / 10 mm, electrostatically dissipative (suitable as intermediate layers and compartments for containers). Typical surface resistance: R = 10^5 –10^8 Ohm.
ESD-compliant
Customizable
Interlayers and compartments can be individually adapted to your wishes and requirements. Size and shape can be adapted. Solutions with cut-outs are also possible.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 294
Complete Catalog 2023 - 2024

Product Family

Article image
Article description
Length
Width
Thickness
Price
Compare
4550.03.0153 - PE foam, dissipative 253x153x3 mm
4550.03.0153
PE foam, dissipative 253x153x3 mm
253 mm
153 mm
3 mm
0,82 EUR
4550.03.0253 - PE foam, dissipative 353x253x3 mm
4550.03.0253
PE foam, dissipative 353x253x3 mm
353 mm
253 mm
3 mm
1,50 EUR
4550.03.0255.KLT - PE foam, dissipative 340x255x3 mm
4550.03.0255.KLT
PE foam, dissipative 340x255x3 mm
340 mm
255 mm
3 mm
1,50 EUR
4550.03.0300 - PE foam, dissipative 300x300x3 mm
4550.03.0300
PE foam, dissipative 300x300x3 mm
300 mm
300 mm
3 mm
1,40 EUR
4550.03.0353 - PE foam, dissipative 553x353x3 mm
4550.03.0353
PE foam, dissipative 553x353x3 mm
553 mm
353 mm
3 mm
2,92 EUR
4550.03.0355.KLT - PE foam, dissipative 540x355x3 mm
4550.03.0355.KLT
PE foam, dissipative 540x355x3 mm
540 mm
355 mm
3 mm
2,92 EUR
4550.03.Z - PE foam, dissipative, cutting
4550.03.Z
PE foam, dissipative, cutting

Cutting mm
3 mm
-
4550.06.0153 - PE foam, dissipative 253x153x6 mm
4550.06.0153
PE foam, dissipative 253x153x6 mm
253 mm
153 mm
6 mm
0,95 EUR
4550.06.0253 - PE foam, dissipative 353x253x6 mm
4550.06.0253
PE foam, dissipative 353x253x6 mm
353 mm
253 mm
6 mm
1,72 EUR
4550.06.0255.KLT - PE foam, dissipative 340x255x6 mm
4550.06.0255.KLT
PE foam, dissipative 340x255x6 mm
340 mm
255 mm
6 mm
1,83 EUR
4550.06.0300 - PE foam, dissipative 300x300x6 mm
4550.06.0300
PE foam, dissipative 300x300x6 mm
300 mm
300 mm
6 mm
1,96 EUR
4550.06.0353 - PE foam, dissipative 553x353x6 mm
4550.06.0353
PE foam, dissipative 553x353x6 mm
553 mm
353 mm
6 mm
3,73 EUR
4550.06.0355.KLT - PE foam, dissipative 540x355x6 mm
4550.06.0355.KLT
PE foam, dissipative 540x355x6 mm
540 mm
355 mm
6 mm
4,10 EUR
4550.06.0550 - PE foam, dissipative 750x550x6 mm
4550.06.0550
PE foam, dissipative 750x550x6 mm
750 mm
550 mm
6 mm
10,60 EUR
4550.06.Z - PE foam, dissipative, cutting
4550.06.Z
PE foam, dissipative, cutting

Cutting mm
6 mm
-
4550.10.0253 - PE foam, dissipative 353x253x10 mm
4550.10.0253
PE foam, dissipative 353x253x10 mm
353 mm
253 mm
10 mm
2,69 EUR
4550.10.0255.KLT - PE foam, dissipative 340x255x10 mm
4550.10.0255.KLT
PE foam, dissipative 340x255x10 mm
340 mm
255 mm
10 mm
2,98 EUR
4550.10.0353 - PE foam, dissipative 553x353x10 mm
4550.10.0353
PE foam, dissipative 553x353x10 mm
553 mm
353 mm
10 mm
5,36 EUR
4550.10.0355.KLT - PE foam, dissipative 540x355x10 mm
4550.10.0355.KLT
PE foam, dissipative 540x355x10 mm
540 mm
355 mm
10 mm
5,94 EUR
4550.10.0550 - PE foam, dissipative 750x550x10 mm
4550.10.0550
PE foam, dissipative 750x550x10 mm
750 mm
550 mm
10 mm
13,80 EUR
4550.10.Z - PE foam, dissipative, cutting
4550.10.Z
PE foam, dissipative, cutting

Cutting mm
10 mm
-
