PP Partition length 253 mm / height 80 mm / grid 10 mm ESD with external supports

(Product No.: 050.239.080.10.AS)

PP Partition length 253 mm / height 80 mm / grid 10 mm ESD with external supports

Name: PP Partition length 253 mm / height 80 mm / grid 10 mm ESD with external supports
SKU: 050.239.080.10.AS
Price: 1.33 EUR
Availability: InStock

ArticleNo: 050.239.080.10.AS

PP Partition length 253 mm / height 80 mm / grid 10 mm ESD with external supports

dpvlink:

14878

Manufacturer:

Compartments:

Slots:

External support:

yes

Properties:

Further product information

Printing Interlayers / Parting Inserts
Configure now

Parting Inserts
Configure now

Availability: Delivery time!

Delivery time!

1,33 EUR

excl. 19% tax

1 PCE

Compare

Notice

Product Info

PP Partition length 253 mm / height 80 mm / grid 10 mm ESD with external supports

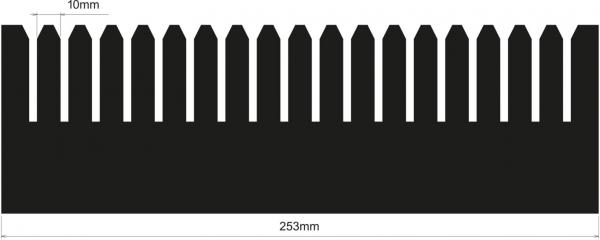

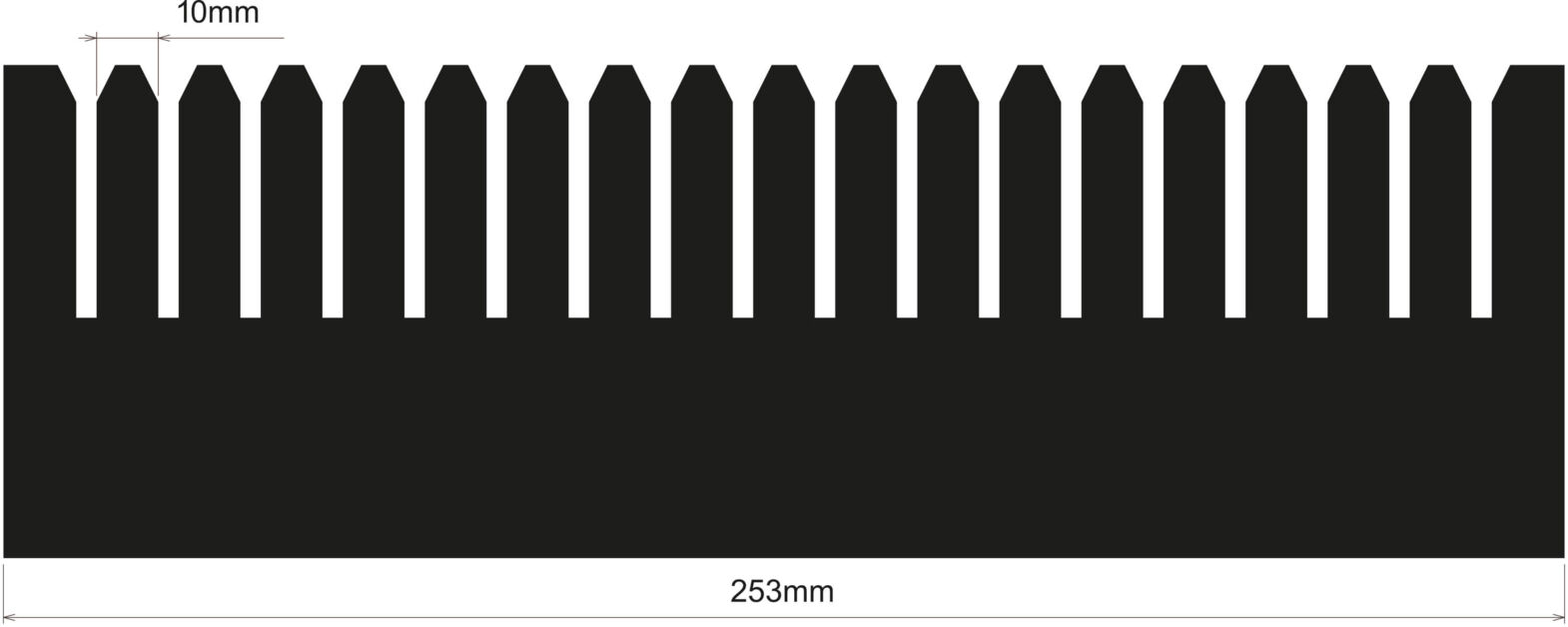

The PP ribbed wall from EPAstore, manufactured by DPV, is a high-quality solution for organizing and dividing Euro containers of size 400 x 300 mm. This ribbed wall has a length of 253 mm, a height of 80 mm, and a thickness of 3 mm. It is made from black polypropylene, a robust hollow chamber material known for its durability and stability.
The ribbed wall is equipped with a 10 mm grid, allowing for flexible division into 17 sections with a total of 18 slots. The outer ribs of the wall have a width of about 11 mm and contribute to additional reinforcement. Notably, the material features volume conductive properties, with a surface resistance of 10^6 Ω, thus meeting the standards of DIN EN 61340-5-1. These characteristics make the PP ribbed wall ideal for applications where electrostatic discharges must be avoided.

Details

Compartments Compartments: 17
Slots Slots: 18
External support External support: yes
Color Color: black
Height [mm] Height: 80 mm
Length Length: 253 mm
Thickness Thickness: 3 mm
Conductivity Conductivity: volume conductive
Surface resistance Rs Surface resistance Rs: 10⁶ Ω
Material Material: polypropylene
Grid spacing [mm] Grid spacing [mm]: 10 mm
Material structure Material structure: cavity material
Suitable for containers Suitable for containers: 400x300 mm

Common

In order to satisfy the constantly increasing requirements in electronics manufacturing you must protect your components against electrostatic discharge.

The ESD-safe parting inserts for Euro containers complete your workstation.

Parting inserts facilitate the removal of components to be processed from containers. Cut-outs can be adapted to your requirements. You will find hereinafter our standard parting inserts for the most common applications.

Technical data for standard versions

Lateral length container:	- 300 / 400 / 600 mm outside
	- 253 / 353 / 553 mm inside
Partition heights:	- 80 / 120 / 180 mm
Thicknesses:	- 3.0 mm (weight 600g/m²)
	- 3.5 mm extra sturdy (weight 800g/m²)

- available with different raster widths/numbers of subdivisions
- volume conductive
- In compliance with ESD standard DIN EN 61340-5-1

customizable

Upon request - Standard partitions

specific heights between 30 - 600 mm
handhold cut-outs

Also for KLT containers

H	=	Partition height (80, 120 or 180 mm)
L	=	Partition length (253, 353 or 553 mm)
G	=	Grid spacing
AS	=	External support (if existing)
SW	=	Slot width

In case of high Euro containers we recommend parting inserts and additionally interlayers that can be manufactured with cut-outs allowing a quick and easy removal of the components.

For the use in transport containers to transport or store electronic components in an organized manner and in layers

Fix your products and protect them against damage during transportation. The interlayers of lightweight polypropylene with cavities provide additional stability for your containers equipped with partitions.

Technical data for standard versions

Lateral length container:	- 300 / 400 / 600 / 800 mm

Thicknesses:	- 3.0 mm (weight 600g/m²)
	- 3.5 mm extra sturdy (weight 800g/m²)

- available in different dimensions with different cut-outs
- electrostatically volume conductive
- In compliance with ESD standard DIN EN 61340-5-1

Handhold cut-outs for easier removal from Euro containers available in 3 versions:

Standard: 2 corners sloped
Type A: 2 handhold cut-outs semicular 34 X 17 mm
Type C: 2 grip holes round 30 mm

In our product range you will find a wide selection of interlayers and parting inserts (partitions) for the use in transport containers. The combination is ideal for transporting different components susceptible to ESD. Available in 3 different materials for various requirements

PP cavity material:
- made of extruded polypropylene (PP)
- high abrasion resistance
- low weight

PS solid material:
- made of polystyrene (PS)
- high abrasion resistance
- high stability

PE foam:
- made of polyethylene foam (PE)

- abrasion-resistant and corrosion-free
- very low weight

Our standard dimensions are based on the most commonly used Euro transport containers.

If you don't find what you are looking for among our standard dimensions, please don't hesitate to ask us for customer-specific dimensions.

Pictograms

Material PP

High abrasion resistance, low weight thickness 3.0 mm | 600 g/m², thickness 3.5 mm | 800 g/m², volume conductive. Typical surface resistance: R = 10^4 –10^6 Ohm.

ESD-compliant

Customizable

Interlayers and compartments can be individually adapted to your wishes and requirements. Size and shape can be adapted. Solutions with cut-outs are also possible.
