PP Partition length 253 mm / height 80 mm / grid 28 mm ESD

(Product No.: 050.239.080.28)

PP Partition length 253 mm / height 80 mm / grid 28 mm ESD

Name: PP Partition length 253 mm / height 80 mm / grid 28 mm ESD
SKU: 050.239.080.28
Price: 0.82 EUR
Availability: InStock

ArticleNo: 050.239.080.28

dpvlink:

14878

Manufacturer:

Compartments:

Slots:

External support:

Properties:

Further product information

Parting Inserts
Configure now

Printing Interlayers / Parting Inserts
Configure now

Availability: Delivery time!

Delivery time!

0,82 EUR

1 PCE

Compare

Notice

Product Info

PP Ribbed Wall Length 253 mm / Height 80 mm / Grid 28 mm / ESD

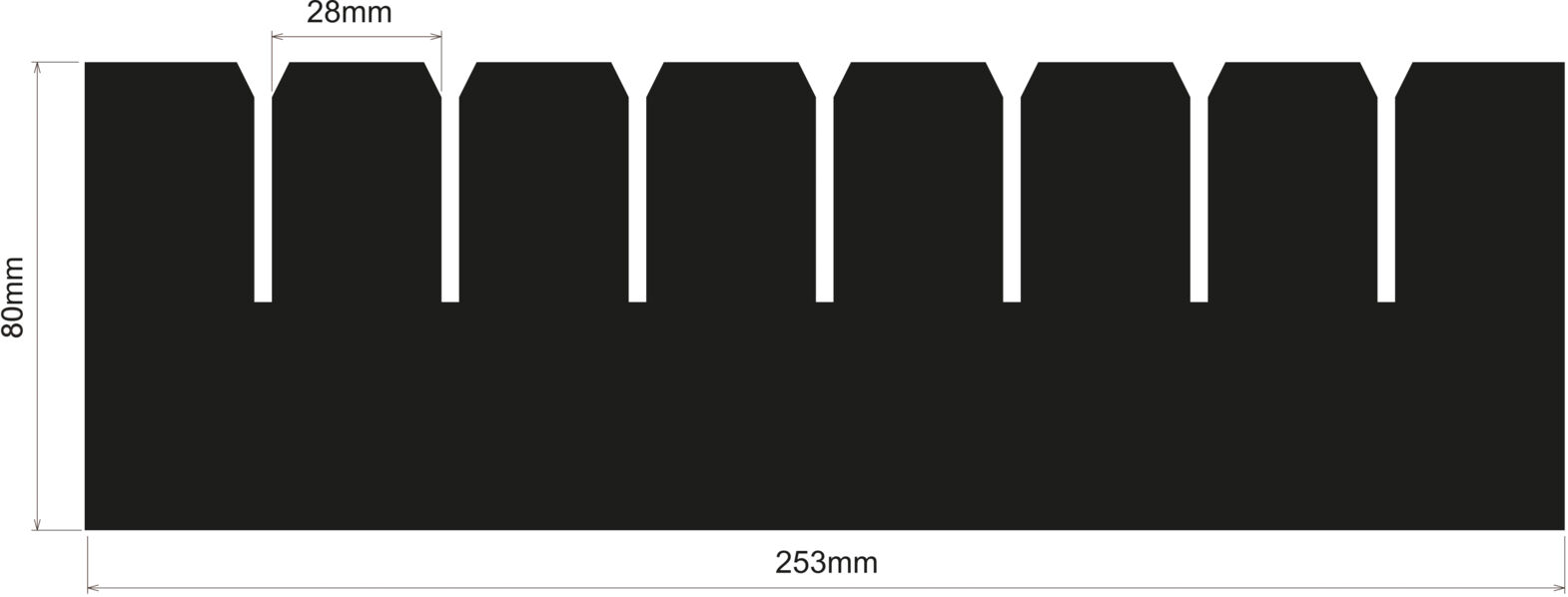

The PP ribbed wall with dimensions 253x80x3 mm and a grid of 28 mm is ideally suited for Euro containers of size 400x300 mm. This product made of extruded polypropylene (PP) is characterized by its electrostatic volume conductivity, which complies with the ESD standard DIN EN 61340-5-1, thus providing protection against electrostatic discharge. The ribbed wall has 8 subdivisions with 7 slots and comes without external ribs, allowing for flexible use. The surface is black and offers high abrasion resistance as well as a low weight of 600g/m², which facilitates handling.
Technical Data: - Container side length: outside 300 / 400 / 600 mm, inside 253 / 353 / 553 mm - Height of ribbed walls: 80 / 120 / 180 mm - Material thicknesses: 3.0 mm and 3.5 mm (extra stable) - Available in various grids - Color: Black - Material: Polypropylene hollow chamber - Weight: 600g/m² - Surface resistance: 10^6 Ω - Suitable for: container 400x300 mm - Grid size: 28 mm
Item number: 050.239.080.28

Details

Compartments Compartments: 8
Slots Slots: 7
External support External support: no
Color Color: black
Height [mm] Height [mm]: 80 mm
Length [mm] Length [mm]: 253 mm
Thickness [mm] Thickness [mm]: 3 mm
Conductivity Conductivity: volume conductive
Surface resistance Rs Surface resistance Rs: 10⁶ Ω
Material Material: polypropylene
Grid spacing [mm] Grid spacing [mm]: 28 mm
Material structure Material structure: cavity material
Suitable for containers Suitable for containers: 400x300
Weight [g/m²] Weight [g/m²]: 600

Common

In order to satisfy the constantly increasing requirements in electronics manufacturing you must protect your components against electrostatic discharge.

The ESD-safe parting inserts for Euro containers complete your workstation.

Parting inserts facilitate the removal of components to be processed from containers. Cut-outs can be adapted to your requirements. You will find hereinafter our standard parting inserts for the most common applications.

Technical data for standard versions

Lateral length container:	- 300 / 400 / 600 mm outside
	- 253 / 353 / 553 mm inside
Partition heights:	- 80 / 120 / 180 mm
Thicknesses:	- 3.0 mm (weight 600g/m²)
	- 3.5 mm extra sturdy (weight 800g/m²)

- available with different raster widths/numbers of subdivisions
- volume conductive
- In compliance with ESD standard DIN EN 61340-5-1

customizable

Upon request - Standard partitions

specific heights between 30 - 600 mm
handhold cut-outs

Also for KLT containers

H	=	Partition height (80, 120 or 180 mm)
L	=	Partition length (253, 353 or 553 mm)
G	=	Grid spacing
AS	=	External support (if existing)
SW	=	Slot width

In case of high Euro containers we recommend parting inserts and additionally interlayers that can be manufactured with cut-outs allowing a quick and easy removal of the components.

For the use in transport containers to transport or store electronic components in an organized manner and in layers

Fix your products and protect them against damage during transportation. The interlayers of lightweight polypropylene with cavities provide additional stability for your containers equipped with partitions.

Technical data for standard versions

Lateral length container:	- 300 / 400 / 600 / 800 mm

Thicknesses:	- 3.0 mm (weight 600g/m²)
	- 3.5 mm extra sturdy (weight 800g/m²)

- available in different dimensions with different cut-outs
- electrostatically volume conductive
- In compliance with ESD standard DIN EN 61340-5-1

Handhold cut-outs for easier removal from Euro containers available in 3 versions:

Standard: 2 corners sloped
Type A: 2 handhold cut-outs semicular 34 X 17 mm
Type C: 2 grip holes round 30 mm

In our product range you will find a wide selection of interlayers and parting inserts (partitions) for the use in transport containers. The combination is ideal for transporting different components susceptible to ESD. Available in 3 different materials for various requirements

PP cavity material:
- made of extruded polypropylene (PP)
- high abrasion resistance
- low weight

PS solid material:
- made of polystyrene (PS)
- high abrasion resistance
- high stability

PE foam:
- made of polyethylene foam (PE)

- abrasion-resistant and corrosion-free
- very low weight

Our standard dimensions are based on the most commonly used Euro transport containers.

If you don't find what you are looking for among our standard dimensions, please don't hesitate to ask us for customer-specific dimensions.

Pictograms

Material PP

High abrasion resistance, low weight thickness 3.0 mm | 600 g/m², thickness 3.5 mm | 800 g/m², volume conductive. Typical surface resistance: R = 10^4 –10^6 Ohm.

ESD-compliant

Customizable

Interlayers and compartments can be individually adapted to your wishes and requirements. Size and shape can be adapted. Solutions with cut-outs are also possible.

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Catalogues

Page: 309

Complete Catalog 2023 - 2024

EPAstore® ESD Interlayers | Parting inserts - Individual packaging solutions

Configurators:

Parting Inserts

Configurators:

Printing Interlayers / Parting Inserts

Product Family

Article image

Article description

Compartments

Slots

External support

Price

Compare

050.239.080.20
PP Partition length 253 mm / height 80 mm / grid 20 mm ESD

1,01 EUR

050.239.080.20.A
PP Partition length 253 mm / height 80 mm / grid 20 mm ESD with external supports

yes

1,01 EUR

050.239.080.28
PP Partition length 253 mm / height 80 mm / grid 28 mm ESD

0,82 EUR

050.239.080.39
PP Partition length 253 mm / height 80 mm / grid 39 mm ESD

0,75 EUR

050.239.080.60
PP Partition length 253 mm / height 80 mm / grid 60 mm ESD

0,67 EUR

050.239.080.215
PP Partition length 253 mm / height 80 mm / grid 215 mm ESD

yes

0,65 EUR

050.239.080.47
PP Partition length 253 mm / height 80 mm / grid 47 mm ESD

0,71 EUR

050.239.080.110
PP Partition length 253 mm / height 80 mm / grid 110 mm ESD

yes

0,68 EUR

050.239.080.10.AS
PP Partition length 253 mm / height 80 mm / grid 10 mm ESD with external supports

yes

1,33 EUR

050.239.080.72
PP Partition length 253 mm / height 80 mm / grid 72 mm ESD

yes

0,70 EUR

This product is compatible with (for example):

Euro container Light with fixed hinged lid...

Euro container light 400x300x335(320+15)mm/inside
360x260x295 mm, hinged lid, black
electrostatically conductive (DIN EN 61340-5-1)

Specific resistance / surface resistance 10H3 < 10H10
