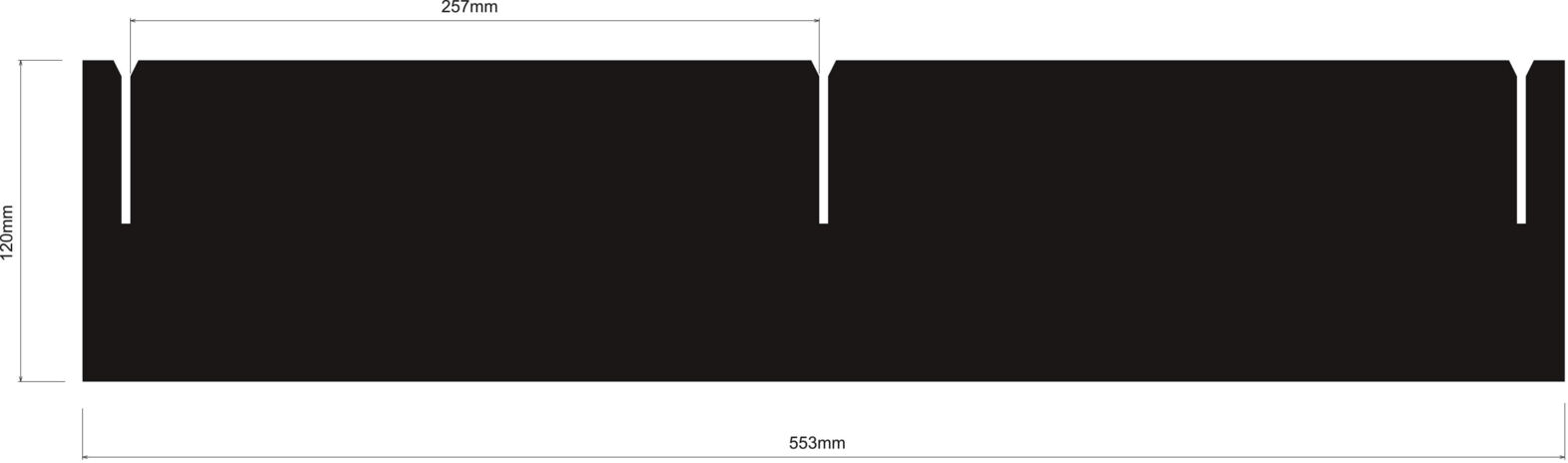

The PP honeycomb panel "EPAstore" measuring 553x120x3 mm is specifically designed for Euro containers of size 600x400 mm. This product made from extruded polypropylene (PP) offers optimal protection against electrostatic discharges due to its electrostatic volume conductivity and complies with the ESD standard DIN EN 61340-5-1. The panel has two grids each of 257 mm and three slots, allowing for flexible partitioning. The outer webs are approximately 15 mm wide, facilitating the handling and removal of components. Technical Specifications: - External dimensions: 553x120x3 mm - Grid size: 257 mm - Number of slots: 3 - Outer web: Yes - Material: Polypropylene, hollow chamber structure - Surface resistance: 10^6 Ω - Weight: 600 g/m² - Color: Black - Suitable for: Euro container 600x400 mm The high abrasion resistance and low weight of the material ensure durability and easy handling. Ideal for applications in electronics manufacturing, where ESD protection and efficient space usage are required.
Item number: 050.241.120.257
Details
- Compartments Compartments
- 2
- Grid spacing [mm] Grid spacing [mm]
- 257 mm
- Slots Slots
- 3
- External support External support
- yes
- Color Color
- black
- Height [mm] Height [mm]
- 120 mm
- Length [mm] Length [mm]
- 553 mm
- Thickness [mm] Thickness [mm]
- 3 mm
- Conductivity Conductivity
- volume conductive
- Surface resistance Rs Surface resistance Rs
- 106 Ω
- Material Material
- polypropylene
- Material structure Material structure
- cavity material
- Suitable for containers Suitable for containers
- 600x400
- Weight [g/m²] Weight [g/m²]
- 600
In order to satisfy the constantly increasing requirements in electronics manufacturing you must protect your components against electrostatic discharge.
The ESD-safe parting inserts for Euro containers complete your workstation.
Parting inserts facilitate the removal of components to be processed from containers. Cut-outs can be adapted to your requirements. You will find hereinafter our standard parting inserts for the most common applications.
Technical data for standard versions
| Lateral length container: | - 300 / 400 / 600 mm outside |
| - 253 / 353 / 553 mm inside | |
| Partition heights: | - 80 / 120 / 180 mm |
| Thicknesses: | - 3.0 mm (weight 600g/m²) |
| - 3.5 mm extra sturdy (weight 800g/m²) |
- available with different raster widths/numbers of subdivisions
- volume conductive
- In compliance with ESD standard DIN EN 61340-5-1
customizable
Upon request - Standard partitions
- specific heights between 30 - 600 mm
- handhold cut-outs
Also for KLT containers
| H | = | Partition height (80, 120 or 180 mm) |
| L | = | Partition length (253, 353 or 553 mm) |
| G | = | Grid spacing |
| AS | = | External support (if existing) |
| SW | = | Slot width |
Technical data for standard versions
| Lateral length container: | - 300 / 400 / 600 / 800 mm |
| Thicknesses: | - 3.0 mm (weight 600g/m²) |
| - 3.5 mm extra sturdy (weight 800g/m²) |
- available in different dimensions with different cut-outs
- electrostatically volume conductive
- In compliance with ESD standard DIN EN 61340-5-1
Handhold cut-outs for easier removal from Euro containers available in 3 versions:
- Standard: 2 corners sloped
- Type A: 2 handhold cut-outs semicular 34 X 17 mm
- Type C: 2 grip holes round 30 mm
In our product range you will find a wide selection of interlayers and parting inserts (partitions) for the use in transport containers. The combination is ideal for transporting different components susceptible to ESD. Available in 3 different materials for various requirements
PP cavity material:
- made of extruded polypropylene (PP)
- high abrasion resistance
- low weight
PS solid material:
- made of polystyrene (PS)
- high abrasion resistance
- high stability
- made of polyethylene foam (PE)
- abrasion-resistant and corrosion-free
- very low weight
Our standard dimensions are based on the most commonly used Euro transport containers.
If you don't find what you are looking for among our standard dimensions, please don't hesitate to ask us for customer-specific dimensions.
