The image shows a long fence in black, with regularly arranged, trapezoidal spikes on the top edge. The overall dimensions are 1600 mm in length and 270 mm in height.
PP Partition length 553 mm / height 80 mm / grid 20 mm ESD with external support
(Product No.: 050.241.080.20.AS)
The image shows a long fence in black, with regularly arranged, trapezoidal spikes on the top edge. The overall dimensions are 1600 mm in length and 270 mm in height.
Notice

PP Partition length 553 mm / height 80 mm / grid 20 mm ESD with external support

PP Partition length 553 mm / height 80 mm / grid 20 mm ESD with external support

dpvlink:
14855
Manufacturer:
Compartments:
23
Grid spacing [mm]:
20 mm
Slots:
24
External support:
yes
Properties:
Note:
Other heights from 30-600 mm with cut-outs customizable
Further product information
Printing Interlayers / Parting Inserts
Configure now
Parting Inserts
Configure now


Minimum order:
10 PCE
Delivery time! Delivery time!
1,69 EUR

excl. 19% tax

10 PCE
Compare Compare
Notice
Product Info

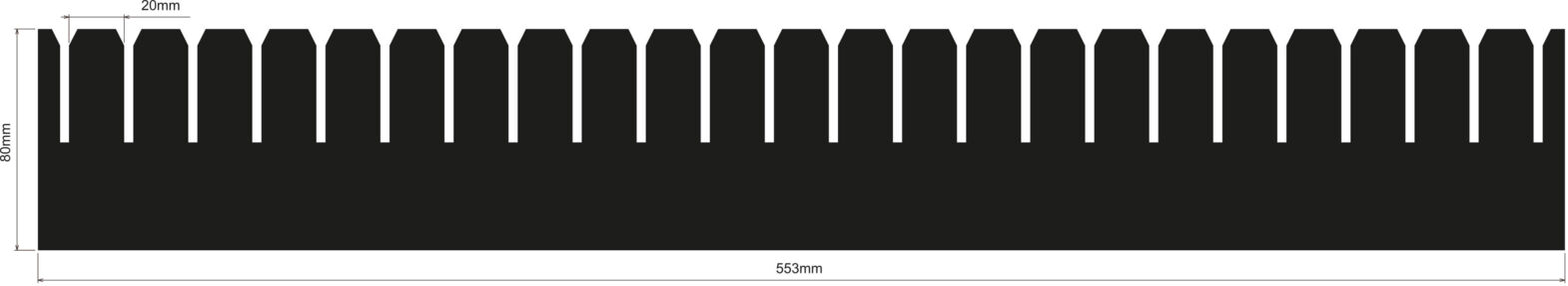

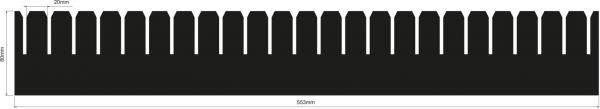

PP Partition length 553 mm / height 80 mm / grid 20 mm ESD with external support

The PP web wall from EPAstore, made by DPV, is specifically designed for Euro containers measuring 600 x 400 mm. This web wall measures 553 mm in length, 80 mm in height, and has a thickness of 3 mm. It features 24 slots, distributed over a grid of 20 mm, and is equipped with an external web of about 7 mm, which provides additional stability.
The product is made from polypropylene, a robust hollow chamber material, which has a weight of 600 g/m². The black web wall is volume conductive according to DIN EN 61340-5-1, making it ideal for applications where electrostatic discharges need to be avoided. The surface resistance is 10^6 Ω, highlighting the conductivity of the material. These features make the PP web wall an optimal solution for safe and efficient organization and storage in industrial and technical environments.
Compartments
Compartments
23
Grid spacing [mm]
Grid spacing [mm]
20 mm
Slots
Slots
24
External support
External support
yes
Color
Color
black
Height [mm]
Height
80 mm
Length
Length
553 mm
Thickness
Thickness
3 mm
Conductivity
Conductivity
volume conductive
Surface resistance Rs
Surface resistance Rs
106 Ω
Material
Material
polypropylene
Material structure
Material structure
cavity material
Suitable for containers
Suitable for containers
600x400 mm
Weight [g/m²]
Weight [g/m²]
600
Other heights from 30-600 mm with cut-outs customizable
Common


In order to satisfy the constantly increasing requirements in electronics manufacturing you must protect your components against electrostatic discharge.

The ESD-safe parting inserts for Euro containers complete your workstation.

Parting inserts facilitate the removal of components to be processed from containers. Cut-outs can be adapted to your requirements. You will find hereinafter our standard parting inserts for the most common applications.



Technical data for standard versions

Lateral length container:- 300 / 400 / 600 mm outside
-  253 / 353 / 553 mm inside
Partition heights:- 80 / 120 / 180 mm
Thicknesses:- 3.0 mm (weight 600g/m²)
- 3.5 mm extra sturdy (weight 800g/m²)

- available with different raster widths/numbers of subdivisions
- volume conductive
- In compliance with ESD standard DIN EN 61340-5-1



customizable



Upon request - Standard partitions

  • specific heights between 30 - 600 mm
  • handhold cut-outs

Also for KLT containers



H=Partition height (80, 120 or 180 mm)
L=Partition length (253, 353 or 553 mm)
G=Grid spacing
AS=External support (if existing)
SW=Slot width



In case of high Euro containers we recommend parting inserts and additionally interlayers that can be manufactured with cut-outs allowing a quick and easy removal of the components.

For the use in transport containers to transport or store electronic components in an organized manner and in layers

Fix your products and protect them against damage during transportation. The interlayers of lightweight polypropylene with cavities provide additional stability for your containers equipped with partitions.

Technical data for standard versions

Lateral length container:- 300 / 400 / 600 / 800 mm
Thicknesses:- 3.0 mm (weight 600g/m²)
- 3.5 mm extra sturdy (weight 800g/m²)

- available in different dimensions with different cut-outs
- electrostatically volume conductive
- In compliance with ESD standard DIN EN 61340-5-1


Handhold cut-outs for easier removal from Euro containers available in 3 versions:

  • Standard: 2 corners sloped
  • Type A: 2 handhold cut-outs semicular 34 X 17 mm
  • Type C: 2 grip holes round 30 mm





In our product range you will find a wide selection of interlayers and parting inserts (partitions) for the use in transport containers. The combination is ideal for transporting different components susceptible to ESD. Available in 3 different materials for various requirements



PP cavity material:
- made of extruded polypropylene (PP)
- high abrasion resistance
- low weight



PS solid material:
- made of polystyrene (PS)
- high abrasion resistance
- high stability



PE foam:
- made of polyethylene foam (PE)
- abrasion-resistant and corrosion-free
- very low weight


Our standard dimensions are based on the most commonly used Euro transport containers.

If you don't find what you are looking for among our standard dimensions, please don't hesitate to ask us for customer-specific dimensions.



Pictograms
Material PP
High abrasion resistance, low weight thickness 3.0 mm | 600 g/m², thickness 3.5 mm | 800 g/m², volume conductive. Typical surface resistance: R = 10^4 –10^6 Ohm.
ESD-compliant
Customizable
Interlayers and compartments can be individually adapted to your wishes and requirements. Size and shape can be adapted. Solutions with cut-outs are also possible.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 309
Complete Catalog 2023 - 2024
EPAstore® ESD Interlayers | Parting inserts - Individual packaging solutions
Configurators:
Printing Interlayers / Parting Inserts
Configurators:
Parting Inserts

Product Family

Article image
Article description
Compartments
Grid spacing [mm]
Slots
External support
Price
Compare
050.241.080.10.AS - PP Partition length 553 mm / height 80 mm / grid 10 mm ESD
050.241.080.10.AS
PP Partition length 553 mm / height 80 mm / grid 10 mm ESD
40
10 mm
41
yes
2,47 EUR
050.241.080.20 - PP Partition length 553 mm / height 80 mm / grid 20 mm ESD
050.241.080.20
PP Partition length 553 mm / height 80 mm / grid 20 mm ESD
24
20 mm
23
no
1,65 EUR
050.241.080.20.AS - PP Partition length 553 mm / height 80 mm / grid 20 mm ESD with external support
050.241.080.20.AS
PP Partition length 553 mm / height 80 mm / grid 20 mm ESD with external support
23
20 mm
24
yes
1,69 EUR
050.241.080.23.A - PP Partition length 553 mm / height 80 mm / grid 23 mm ESD
050.241.080.23.A
PP Partition length 553 mm / height 80 mm / grid 23 mm ESD
20
23 mm
21
yes
1,63 EUR
050.241.080.34 - PP Partition length 553 mm / height 80 mm / grid 34 mm ESD
050.241.080.34
PP Partition length 553 mm / height 80 mm / grid 34 mm ESD
15
34 mm
14
no
1,61 EUR
050.241.080.43 - PP Partition length 553 mm / height 80 mm / grid 43 mm ESD
050.241.080.43
PP Partition length 553 mm / height 80 mm / grid 43 mm ESD
12
43 mm
11
no
1,53 EUR
050.241.080.52 - PP Partition length 553 mm / height 80 mm / grid 52 mm ESD
050.241.080.52
PP Partition length 553 mm / height 80 mm / grid 52 mm ESD
10
52 mm
9
no
1,47 EUR
050.241.080.66 - PP Partition length 553 mm / height 80 mm / grid 66 mm ESD
050.241.080.66
PP Partition length 553 mm / height 80 mm / grid 66 mm ESD
8
66 mm
7
no
1,40 EUR
050.241.080.76 - PP Partition length 553 mm / height 80 mm / grid 76 mm ESD
050.241.080.76
PP Partition length 553 mm / height 80 mm / grid 76 mm ESD
7
76 mm
6
no
1,37 EUR
050.241.080.84 - PP Partition length 553 mm / height 80 mm / grid 84 mm ESD
050.241.080.84
PP Partition length 553 mm / height 80 mm / grid 84 mm ESD
6
84 mm
7
yes
1,40 EUR
050.241.080.101 - PP Partition length 553 mm / height 80 mm / grid 101 mm ESD
050.241.080.101
PP Partition length 553 mm / height 80 mm / grid 101 mm ESD
5
101 mm
6
yes
1,31 EUR
050.241.080.127 - PP Partition length 553 mm / height 80 mm / grid 127 mm ESD
050.241.080.127
PP Partition length 553 mm / height 80 mm / grid 127 mm ESD
4
127 mm
5
yes
1,33 EUR
050.241.080.170 - PP Partition length 553 mm / height 80 mm / grid 170 mm ESD
050.241.080.170
PP Partition length 553 mm / height 80 mm / grid 170 mm ESD
3
170 mm
4
yes
1,29 EUR
050.241.080.257 - PP Partition length 553 mm / height 80 mm / grid 257 mm ESD
050.241.080.257
PP Partition length 553 mm / height 80 mm / grid 257 mm ESD
2
257 mm
3
yes
1,26 EUR
