PP Partition length 553 mm / height 80 mm / grid 66 mm ESD

(Product No.: 050.241.080.66)

PP Partition length 553 mm / height 80 mm / grid 66 mm ESD

Name: PP Partition length 553 mm / height 80 mm / grid 66 mm ESD
SKU: 050.241.080.66
Price: 1.40 EUR
Availability: InStock

ArticleNo: 050.241.080.66

dpvlink:

14855

Manufacturer:

Compartments:

Grid spacing [mm]:

66 mm

Slots:

External support:

Properties:

Note:

Other heights from 30-600 mm with cut-outs customizable

Further product information

Printing Interlayers / Parting Inserts
Configure now

Parting Inserts
Configure now

Shipping time:
Delivery time!

Delivery time!

1,40 EUR
1,40 EUR per PCE

PCE:

Compare

Notice

Product Info

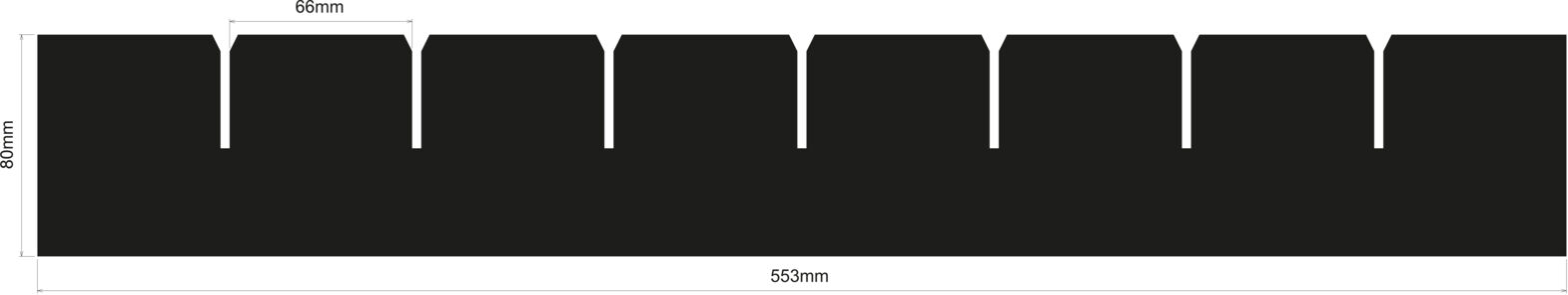

PP-Stegwand Length 553 mm / Height 80 mm / Grid 66 mm / ESD
The PP-Stegwand "EPAstore" with dimensions 553x80x3 mm and a grid of 66 mm is specifically designed for Euro containers of size 600x400 mm. This product is made from extruded polypropylene, which ensures high abrasion resistance and low weight. The partition wall is electrostatically conductive and meets the ESD standard DIN EN 61340-5-1, making it ideal for applications in electronics manufacturing, where protection against electrostatic discharge is required.
Technical Data: - Subdivision: 8 grids - Slots: 7 - Height: 80 mm - Length: 553 mm - Thickness: 3 mm - Surface resistance Rs: 10^6 Ω - Color: Black - Material: Polypropylene, hollow chamber - Weight: 600g/m² - Suitable for containers: 600x400 mm - External web: No
The partition wall is configured without external webs, allowing for flexible use and easy handling. It is excellent for the safe and organized storage and transport of sensitive components.
Item number: 050.241.080.66

Details

Compartments Compartments: 8
Grid spacing [mm] Grid spacing [mm]: 66 mm
Slots Slots: 7
External support External support: no
Color Color: black
Height [mm] Height [mm]: 80 mm
Length [mm] Length [mm]: 553
Thickness [mm] Thickness [mm]: 3 mm
Conductivity Conductivity: volume conductive
Surface resistance Rs Surface resistance Rs: 10⁶ Ω
Material Material: polypropylene
Material structure Material structure: cavity material
Suitable for containers Suitable for containers: 600x400
Weight [g/m²] Weight [g/m²]: 600

Other heights from 30-600 mm with cut-outs customizable

Common

In order to satisfy the constantly increasing requirements in electronics manufacturing you must protect your components against electrostatic discharge.

The ESD-safe parting inserts for Euro containers complete your workstation.

Parting inserts facilitate the removal of components to be processed from containers. Cut-outs can be adapted to your requirements. You will find hereinafter our standard parting inserts for the most common applications.

Technical data for standard versions

Lateral length container:	- 300 / 400 / 600 mm outside
	- 253 / 353 / 553 mm inside
Partition heights:	- 80 / 120 / 180 mm
Thicknesses:	- 3.0 mm (weight 600g/m²)
	- 3.5 mm extra sturdy (weight 800g/m²)

- available with different raster widths/numbers of subdivisions
- volume conductive
- In compliance with ESD standard DIN EN 61340-5-1

customizable

Upon request - Standard partitions

specific heights between 30 - 600 mm
handhold cut-outs

Also for KLT containers

H	=	Partition height (80, 120 or 180 mm)
L	=	Partition length (253, 353 or 553 mm)
G	=	Grid spacing
AS	=	External support (if existing)
SW	=	Slot width

In case of high Euro containers we recommend parting inserts and additionally interlayers that can be manufactured with cut-outs allowing a quick and easy removal of the components.

For the use in transport containers to transport or store electronic components in an organized manner and in layers

Fix your products and protect them against damage during transportation. The interlayers of lightweight polypropylene with cavities provide additional stability for your containers equipped with partitions.

Technical data for standard versions

Lateral length container:	- 300 / 400 / 600 / 800 mm

Thicknesses:	- 3.0 mm (weight 600g/m²)
	- 3.5 mm extra sturdy (weight 800g/m²)

- available in different dimensions with different cut-outs
- electrostatically volume conductive
- In compliance with ESD standard DIN EN 61340-5-1

Handhold cut-outs for easier removal from Euro containers available in 3 versions:

Standard: 2 corners sloped
Type A: 2 handhold cut-outs semicular 34 X 17 mm
Type C: 2 grip holes round 30 mm

In our product range you will find a wide selection of interlayers and parting inserts (partitions) for the use in transport containers. The combination is ideal for transporting different components susceptible to ESD. Available in 3 different materials for various requirements

PP cavity material:
- made of extruded polypropylene (PP)
- high abrasion resistance
- low weight

PS solid material:
- made of polystyrene (PS)
- high abrasion resistance
- high stability

PE foam:
- made of polyethylene foam (PE)

- abrasion-resistant and corrosion-free
- very low weight

Our standard dimensions are based on the most commonly used Euro transport containers.

If you don't find what you are looking for among our standard dimensions, please don't hesitate to ask us for customer-specific dimensions.

Pictograms

Material PP

High abrasion resistance, low weight thickness 3.0 mm | 600 g/m², thickness 3.5 mm | 800 g/m², volume conductive. Typical surface resistance: R = 10^4 –10^6 Ohm.

ESD-compliant

Customizable

Interlayers and compartments can be individually adapted to your wishes and requirements. Size and shape can be adapted. Solutions with cut-outs are also possible.

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Catalogues

Page: 309

Complete Catalog 2023 - 2024

EPAstore® ESD Interlayers | Parting inserts - Individual packaging solutions

Configurators:

Printing Interlayers / Parting Inserts

Configurators:

Parting Inserts

Product Family

Article image	Article description	Compartments	Grid spacing [mm]	Slots	External support	Price
	050.241.080.20 PP Partition length 553 mm / height 80 mm / grid 20 mm ESD	24	20 mm	23	no	1,65 EUR
	050.241.080.84 PP Partition length 553 mm / height 80 mm / grid 84 mm ESD	6	84 mm	7	yes	1,40 EUR
	050.241.080.23.A PP Partition length 553 mm / height 80 mm / grid 23 mm ESD	20	23 mm	21	yes	1,63 EUR
	050.241.080.257 PP Partition length 553 mm / height 80 mm / grid 257 mm ESD	2	257 mm	3	yes	1,26 EUR
	050.241.080.43 PP Partition length 553 mm / height 80 mm / grid 43 mm ESD	12	43 mm	11	no	1,53 EUR
	050.241.080.34 PP Partition length 553 mm / height 80 mm / grid 34 mm ESD	15	34 mm	14	no	1,61 EUR
	050.241.080.52 PP Partition length 553 mm / height 80 mm / grid 52 mm ESD	10	52 mm	9	no	1,47 EUR
	050.241.080.76 PP Partition length 553 mm / height 80 mm / grid 76 mm ESD	7	76 mm	6	no	1,37 EUR
	050.241.080.20.AS PP Partition length 553 mm / height 80 mm / grid 20 mm ESD with external support	23	20 mm	24	yes	1,69 EUR
	050.241.080.101 PP Partition length 553 mm / height 80 mm / grid 101 mm ESD	5	101 mm	6	yes	1,31 EUR
	050.241.080.170 PP Partition length 553 mm / height 80 mm / grid 170 mm ESD	3	170 mm	4	yes	1,29 EUR
	050.241.080.66 PP Partition length 553 mm / height 80 mm / grid 66 mm ESD	8	66 mm	7	no	1,40 EUR
	050.241.080.127 PP Partition length 553 mm / height 80 mm / grid 127 mm ESD	4	127 mm	5	yes	1,33 EUR
	050.241.080.10.AS PP Partition length 553 mm / height 80 mm / grid 10 mm ESD	40	10 mm	41	yes	2,47 EUR
Show Compare List (0)

This product is compatible with (for example):

Euro container Light with fixed hinged lid...

Euro container light 600x400x435(220+15) mm/inside
560x360x405 mm, hinged lid, black
usable inner height: 405 mm
electrostatically conductive (DIN EN 61340-5-1)
Specific resistance / surface resistance 10H3 < 10H10
