PP insert customer-specific

(Product No.: 050.200.Spez.PP)

PP insert customer-specific

ArticleNo: 050.200.Spez.PP

PP insert customer-specific

dpvlink:

20662

Manufacturer:

Properties:

Further product information

Printing Interlayers / Parting Inserts
Configure now

Parting Inserts
Configure now

Availability: Delivery time!

Delivery time!

Compare

Notice

Product Info

PP insert customer-specific

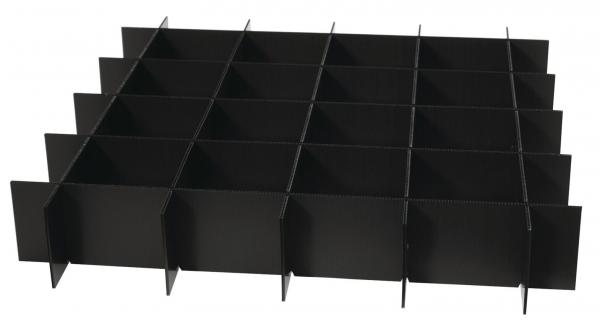

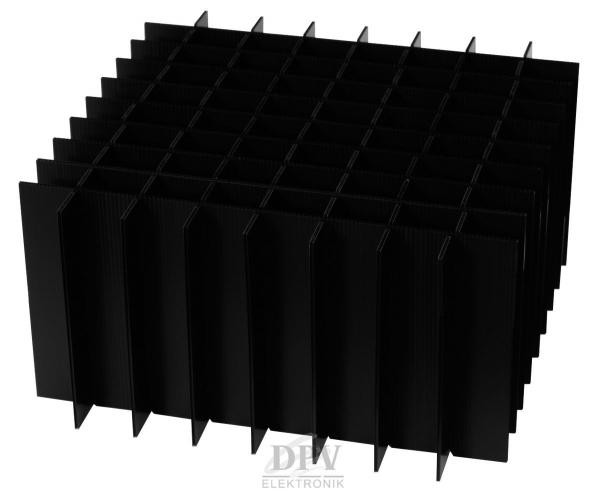

The PP insert from EPAstore, manufactured by DPV, is specifically designed for the orderly and layered storage and transportation of electronic components in transport containers. This product is made from extruded polypropylene and features a hollow chamber profile, which provides high abrasion resistance and a light weight of 600g/m². The standard thickness of the material is 3.0 mm, but other thicknesses are available upon request.
The electrostatic volume conductivity of the insert complies with the ESD standard DIN EN 61340-5-1, making it ideal for handling sensitive electronic components. The surface has a resistance of 10^6 Ω and is available in black.

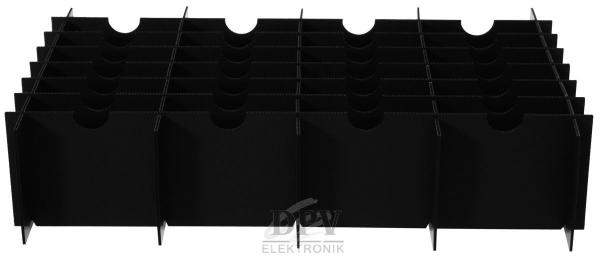

To adapt to specific requirements, the divider walls of the PP insert can be equipped with viewing and handling cut-outs to facilitate the removal of materials. They are also suitable for non-standard containers and can be custom-made to customer specifications in any grid width and divider wall height from 15 mm.
Custom solutions are available for specific applications and requirements. A non-binding offer can be created upon request to optimally adapt the PP insert to your needs.

Details

Color Color: black
Thickness Thickness: 3 mm
Conductivity Conductivity: volume conductive
Surface resistance Rs Surface resistance Rs: 10⁶ Ω
Material Material: polypropylene
Material structure Material structure: cavity material
Weight [g/m²] Weight [g/m²]: 600

Common

For the use in transport containers to transport or store electronic components in an organized manner and in layers

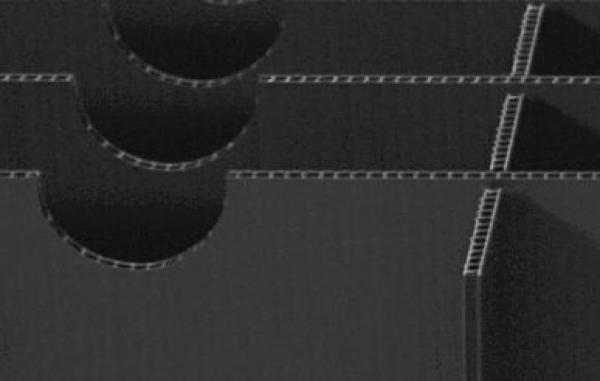

Extruded polypropylene, cavity profile, high abrasion resistance, light weight (600 g/m²), thickness 3.0 mm (other thicknesses on request), electrostatically volume conductive
In compliance with ESD standard DIN EN 61340-5-1

All partitions can be equipped with block-outs for sight and handles for easier removal of the stored parts.

All partitions can be adapted to any customer-specific application. Even not standardized containers can be easily equipped with parting inserts.

Any raster width and partition height from 15 mm may be implemented depending on customer's request.

Customer-specific parting inserts and partitions may be produced individually at any time. Tell us your requirements and we will submit you a non-binding offer.

For the use in transport containers to transport or store electronic components in an organized manner and in layers

Fix your products and protect them against damage during transportation. The interlayers of lightweight polypropylene with cavities provide additional stability for your containers equipped with partitions.

Technical data for standard versions

Lateral length container:	- 300 / 400 / 600 / 800 mm

Thicknesses:	- 3.0 mm (weight 600g/m²)
	- 3.5 mm extra sturdy (weight 800g/m²)

- available in different dimensions with different cut-outs
- electrostatically volume conductive
- In compliance with ESD standard DIN EN 61340-5-1

Handhold cut-outs for easier removal from Euro containers available in 3 versions:

Standard: 2 corners sloped
Type A: 2 handhold cut-outs semicular 34 X 17 mm
Type C: 2 grip holes round 30 mm

In our product range you will find a wide selection of interlayers and parting inserts (partitions) for the use in transport containers. The combination is ideal for transporting different components susceptible to ESD. Available in 3 different materials for various requirements

PP cavity material:
- made of extruded polypropylene (PP)
- high abrasion resistance
- low weight

PS solid material:
- made of polystyrene (PS)
- high abrasion resistance
- high stability

PE foam:
- made of polyethylene foam (PE)

- abrasion-resistant and corrosion-free
- very low weight

Our standard dimensions are based on the most commonly used Euro transport containers.

If you don't find what you are looking for among our standard dimensions, please don't hesitate to ask us for customer-specific dimensions.

Pictograms

Material PP

High abrasion resistance, low weight thickness 3.0 mm | 600 g/m², thickness 3.5 mm | 800 g/m², volume conductive. Typical surface resistance: R = 10^4 –10^6 Ohm.

ESD-compliant

Customizable

Interlayers and compartments can be individually adapted to your wishes and requirements. Size and shape can be adapted. Solutions with cut-outs are also possible.
