PS Partition length 353 mm / height 180 mm / grid 159 mm ESD

(Product No.: 050.340.180.159)

PS Partition length 353 mm / height 180 mm / grid 159 mm ESD

Name: PS Partition length 353 mm / height 180 mm / grid 159 mm ESD
SKU: 050.340.180.159
Price: 2.64 EUR
Availability: InStock

ArticleNo: 050.340.180.159

dpvlink:

14984

Manufacturer:

Compartments:

Grid spacing [mm]:

159 mm

Slots:

External support:

yes

Properties:

Further product information

Printing Interlayers / Parting Inserts
Configure now

Parting Inserts
Configure now

Minimum order:

6 PCE

Availability:
Delivery time!

Delivery time!

2,64 EUR

6 PCE

Compare

Notice

Product Info

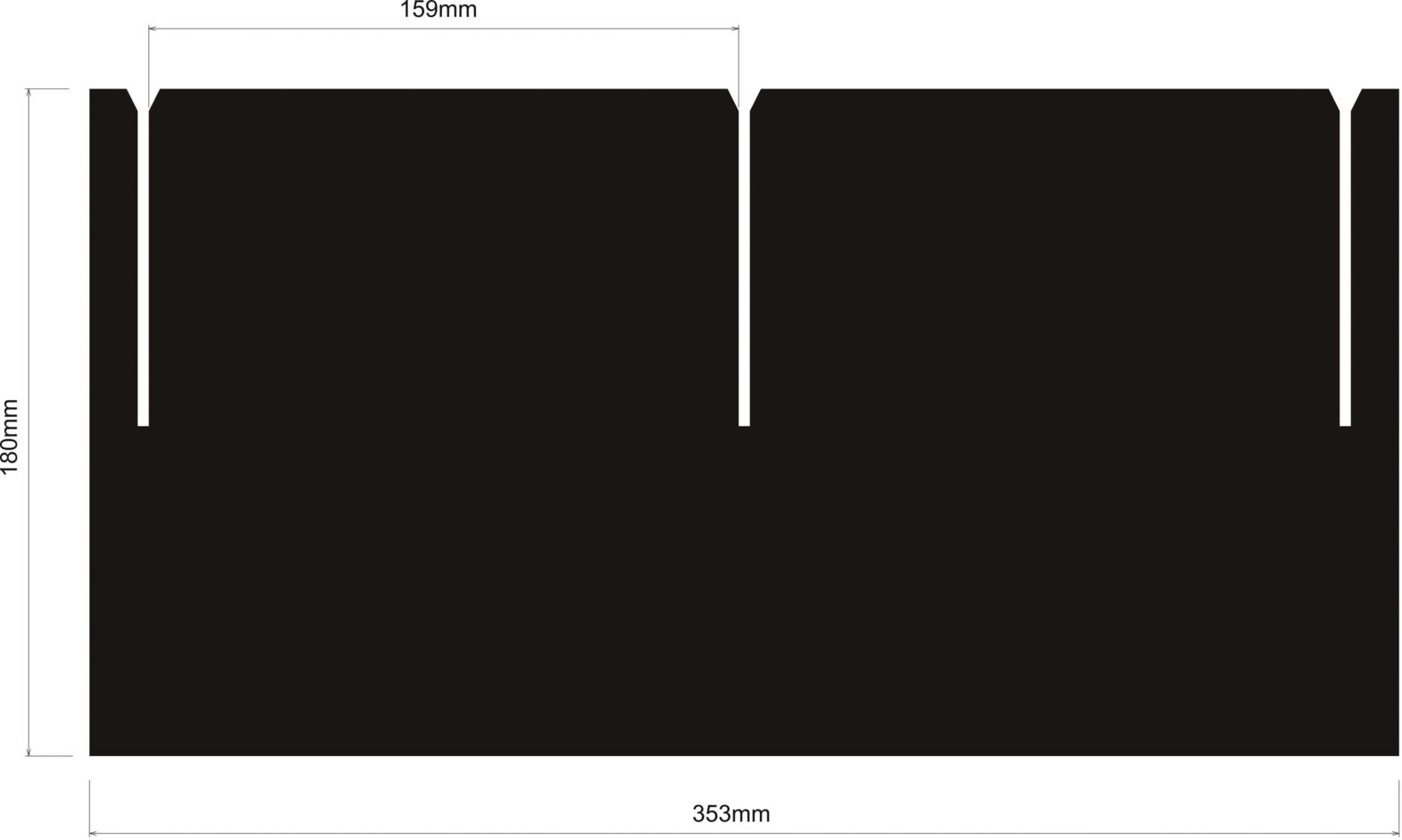

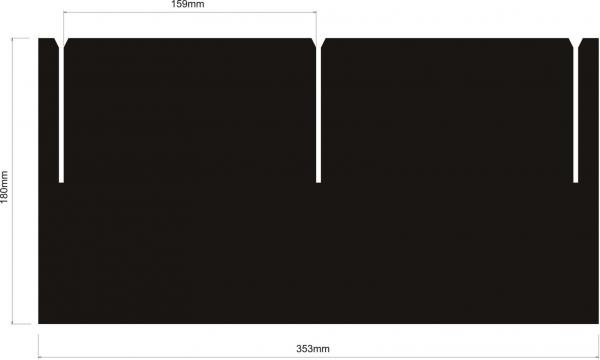

PS Ribbed Wall Length 353 mm / Height 180 mm / Grid 159 mm / ESD
This PS ribbed wall with dimensions 353 x 180 x 1.85 mm and a grid of 159 mm is ideal for Euro containers of sizes 600 x 400 mm and 400 x 300 mm. The product made from highly stable solid polystyrene has a material thickness of 1.85 mm and is electrostatically conductive according to the ESD standard DIN EN 61340-5-1, making it perfect for use in electronics manufacturing.
Technical Data: - Grid: 159 mm - Number of slots: 3 - Outer rib: approx. 13 mm - Height: 180 mm - Length: 353 mm - Material thickness: 1.85 mm - Surface resistance Rs: 10^6 Ω - Volume resistance: 10^6 Ω - Color: black - Weight: 2090 g/m² - Suitable for: Euro containers 600x400 / 400x300 mm
The ribbed wall supports efficient organization and safe storage of sensitive components and is available on request in specific heights between 30 - 600 mm and can be configured with grip cutouts.
Item number: 050.340.180.159

Details

Compartments Compartments: 2
Grid spacing [mm] Grid spacing [mm]: 159 mm
Slots Slots: 3
External support External support: yes
Color Color: black
Height [mm] Height [mm]: 180 mm
Length [mm] Length [mm]: 353 mm
Thickness [mm] Thickness [mm]: 1.85 mm
Conductivity Conductivity: volume conductive
Surface resistance Rs Surface resistance Rs: 10⁶ Ω
Volume resistance Volume resistance: 10⁶ Ω
Material Material: polystyrene
Material structure Material structure: solid material
Suitable for containers Suitable for containers: 600x400 / 400x300
Weight [g/m²] Weight [g/m²]: 2090

Common

In order to satisfy the constantly increasing requirements in electronics manufacturing you must protect your components against electrostatic discharge.

The ESD-safe parting inserts for Euro containers complete your workstation.

Parting inserts facilitate the removal of components to be processed from containers. Cut-outs can be adapted to your requirements. You will find hereinafter our standard parting inserts for the most common applications.

Technical data for standard versions

Lateral length container:	- 300 / 400 / 600 mm outside
	- 253 / 353 / 553 mm inside
Partition heights:	- 80 / 120 / 180 mm
Thicknesses:	- 1.5 mm
	- 1.8 mm
	- 2.0 mm

- available with different raster widths/numbers of subdivisions
- electrostatically volume conductive
- In compliance with ESD standard DIN EN 61340-5-1

customizable

Upon request - Standard partitions

specific heights between 30 - 600 mm
handhold cut-outs

Also for KLT containers

H	=	Height of the parting insert (80, 120 or 180 mm)
L	=	Length of the parting insert (253, 353 or 553 mm)
G	=	Grid spacing
ES	=	External support (if existing)
SW	=	Slot width

In case of high Euro containers we recommend parting inserts and additionally interlayers that can be manufactured with cut-outs allowing a quick and easy removal of the components.

For the use in transport containers to transport or store electronic components in an organized manner and in layers

Fix your products and protect them against damage during transportation. The interlayers of lightweight polypropylene with cavities provide additional stability for your containers equipped with partitions.

Technical data for standard versions

Lateral length container:	- 300 / 400 / 600 mm
Partition height:	- 80 / 120 / 180 mm

Thicknesses:	- 1.5 mm
	- 1.8 mm
	- 2.0 mm

- available with different raster widths/numbers of subdivisions
- electrostatically volume conductive
- In compliance with ESD standard DIN EN 61340-5-1

Handhold cut-outs for easier removal from Euro containers available in 3 versions:

Standard: 2 corners sloped
Type A: 2 handhold cut-outs semicular 34 x 17 mm
Type C: 2 grip holes round 30 mm

In our product range you will find a wide selection of interlayers and parting inserts (partitions) for the use in transport containers. The combination is ideal for transporting different components susceptible to ESD. Available in 3 different materials for various requirements

PP cavity material:
- made of extruded polypropylene (PP)
- high abrasion resistance
- low weight

PS solid material:
- made of polystyrene (PS)
- high abrasion resistance
- high stability

PE foam:
- made of polyethylene foam (PE)

- abrasion-resistant and corrosion-free
- very low weight

Our standard dimensions are based on the most commonly used Euro transport containers.

If you don't find what you are looking for among our standard dimensions, please don't hesitate to ask us for customer-specific dimensions.

Pictograms

Material PS

High abrasion resistance, high stability, volume conductive. Typical surface resistance: R = 10^4–10^6 Ohm.

ESD-compliant

Customizable

Interlayers and compartments can be individually adapted to your wishes and requirements. Size and shape can be adapted. Solutions with cut-outs are also possible.
