PS Partition length 353 mm / height 80 mm / grid 68 mm ESD

(Product No.: 050.340.080.68)

PS Partition length 353 mm / height 80 mm / grid 68 mm ESD

Name: PS Partition length 353 mm / height 80 mm / grid 68 mm ESD
SKU: 050.340.080.68
Price: 1.45 EUR
Availability: InStock

ArticleNo: 050.340.080.68

dpvlink:

14964

Manufacturer:

Compartments:

Grid spacing [mm]:

68 mm

Slots:

External support:

Properties:

Further product information

Parting Inserts
Configure now

Printing Interlayers / Parting Inserts
Configure now

Minimum order:

6 PCE

Availability: Delivery time!

Delivery time!

1,45 EUR

6 PCE

Compare

Notice

Product Info

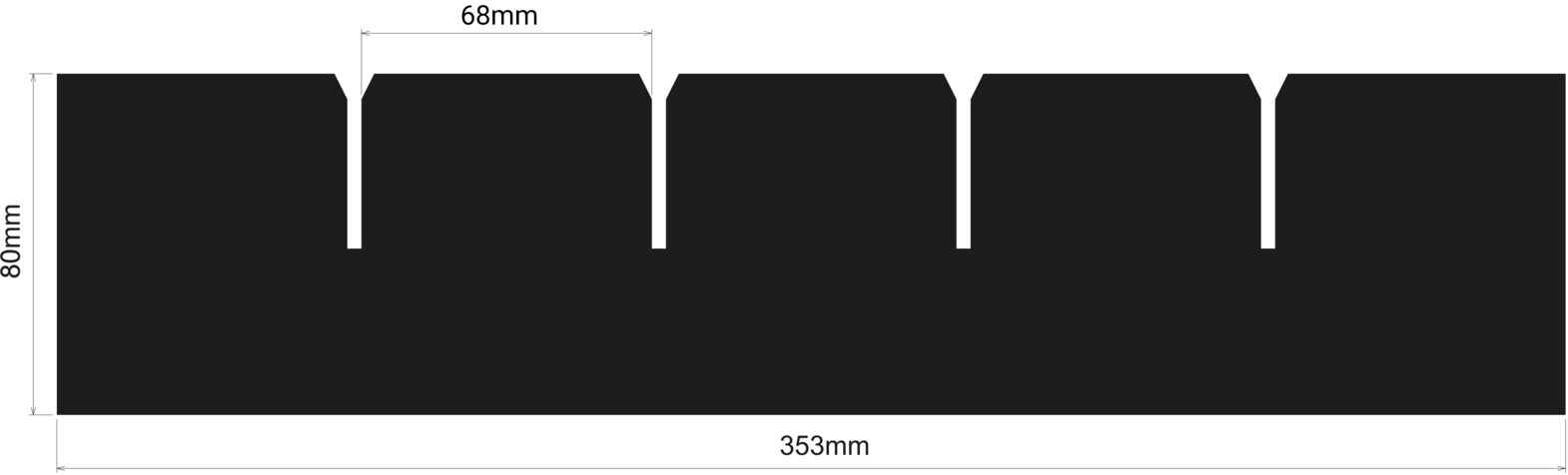

The PS divider wall from EPAstore, manufactured by DPV, is a highly functional partition for Euro containers of sizes 600 x 400 mm and 400 x 300 mm. With a length of 353 mm, a height of 80 mm, and a material thickness of 1.85 mm, this product offers efficient space utilization by dividing into five grids of 68 mm each and four slots.
The solid polystyrene material used ensures high stability and a weight of 2090 g/m². Particularly noteworthy is the electrostatic conductivity of the material, which meets the standards DIN EN 61340-5-1, with a surface and volume resistance of 10^6 Ω each. These properties make the divider wall ideal for use in ESD-sensitive environments.
The black color also ensures discreet integration into various work areas. This product combines functionality with technical safety, ideal for technical procurement in industry and production.

Details

Compartments Compartments: 5
Grid spacing [mm] Grid spacing [mm]: 68 mm
Slots Slots: 4
External support External support: no
Color Color: black
Height [mm] Height [mm]: 80 mm
Length [mm] Length [mm]: 353 mm
Thickness [mm] Thickness [mm]: 1.85 mm
Conductivity Conductivity: volume conductive
Surface resistance Rs Surface resistance Rs: 10⁶ Ω
Volume resistance Volume resistance: 10⁶ Ω
Material Material: polystyrene
Material structure Material structure: solid material
Suitable for containers Suitable for containers: 600x400 / 400x300
Weight [g/m²] Weight [g/m²]: 2090

Common

In order to satisfy the constantly increasing requirements in electronics manufacturing you must protect your components against electrostatic discharge.

The ESD-safe parting inserts for Euro containers complete your workstation.

Parting inserts facilitate the removal of components to be processed from containers. Cut-outs can be adapted to your requirements. You will find hereinafter our standard parting inserts for the most common applications.

Technical data for standard versions

Lateral length container:	- 300 / 400 / 600 mm outside
	- 253 / 353 / 553 mm inside
Partition heights:	- 80 / 120 / 180 mm
Thicknesses:	- 1.5 mm
	- 1.8 mm
	- 2.0 mm

- available with different raster widths/numbers of subdivisions
- electrostatically volume conductive
- In compliance with ESD standard DIN EN 61340-5-1

customizable

Upon request - Standard partitions

specific heights between 30 - 600 mm
handhold cut-outs

Also for KLT containers

H	=	Height of the parting insert (80, 120 or 180 mm)
L	=	Length of the parting insert (253, 353 or 553 mm)
G	=	Grid spacing
ES	=	External support (if existing)
SW	=	Slot width

In case of high Euro containers we recommend parting inserts and additionally interlayers that can be manufactured with cut-outs allowing a quick and easy removal of the components.

For the use in transport containers to transport or store electronic components in an organized manner and in layers

Fix your products and protect them against damage during transportation. The interlayers of lightweight polypropylene with cavities provide additional stability for your containers equipped with partitions.

Technical data for standard versions

Lateral length container:	- 300 / 400 / 600 mm
Partition height:	- 80 / 120 / 180 mm

Thicknesses:	- 1.5 mm
	- 1.8 mm
	- 2.0 mm

- available with different raster widths/numbers of subdivisions
- electrostatically volume conductive
- In compliance with ESD standard DIN EN 61340-5-1

Handhold cut-outs for easier removal from Euro containers available in 3 versions:

Standard: 2 corners sloped
Type A: 2 handhold cut-outs semicular 34 x 17 mm
Type C: 2 grip holes round 30 mm

In our product range you will find a wide selection of interlayers and parting inserts (partitions) for the use in transport containers. The combination is ideal for transporting different components susceptible to ESD. Available in 3 different materials for various requirements

PP cavity material:
- made of extruded polypropylene (PP)
- high abrasion resistance
- low weight

PS solid material:
- made of polystyrene (PS)
- high abrasion resistance
- high stability

PE foam:
- made of polyethylene foam (PE)

- abrasion-resistant and corrosion-free
- very low weight

Our standard dimensions are based on the most commonly used Euro transport containers.

If you don't find what you are looking for among our standard dimensions, please don't hesitate to ask us for customer-specific dimensions.

Pictograms

Material PS

High abrasion resistance, high stability, volume conductive. Typical surface resistance: R = 10^4–10^6 Ohm.

ESD-compliant

Customizable

Interlayers and compartments can be individually adapted to your wishes and requirements. Size and shape can be adapted. Solutions with cut-outs are also possible.
